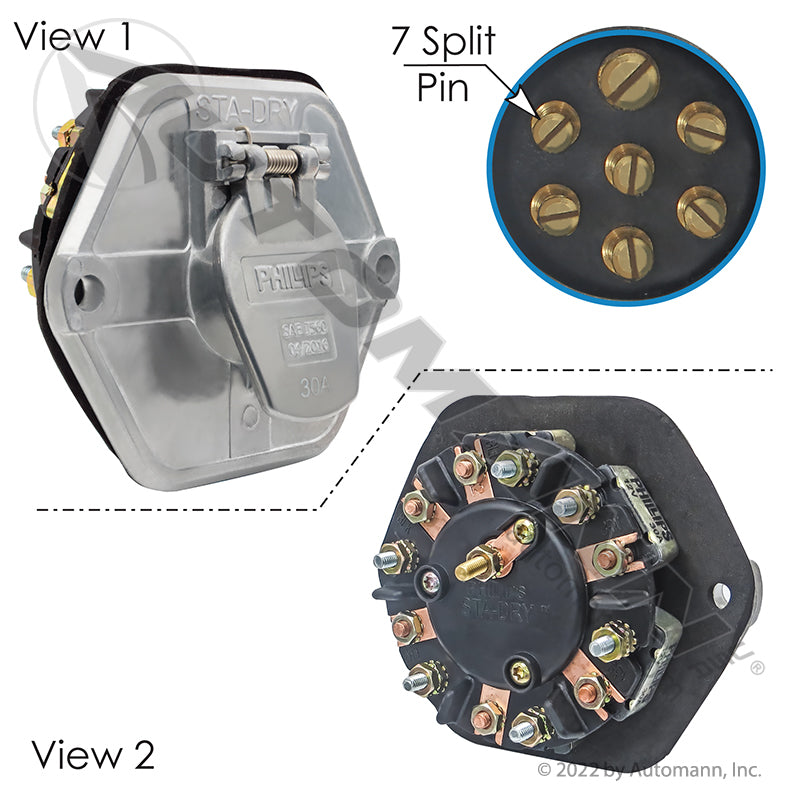

7-Way Socketbreaker - Zinc Die-Cast 30 Amp Circuit Breakers Split Pin - Phillips 15-763 Grote 82-0856 PHI15-763
7-Way Socketbreaker - Zinc Die-Cast 30 Amp Circuit Breakers Split Pin - Phillips 15-763 Grote 82-0856 PHI15-763
Phillips

7-Way Socketbreaker - Zinc Die-Cast 30 Amp Circuit Breakers Split Pin - Phillips 15-763 Grote 82-0856 PHI15-763

Out of stock
SKU: PHI15-763
$34.88
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 tractors and commercial trailersTrailer receptacle on the tractor with built-in circuit protectionResettable 30 Amp circuit breakersA trailer short trips a breaker instead of burning the harness
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

10 cross-refs
Grote 82-0856 Grote 820856 Phillips 15-763 Phillips 15763 Tectran 670-7230 Tectran 6707230 Tectran 38095 Tramec Sloan 38815 Velvac 593054 421021
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Protect the harness instead of replacing it with this 7-way socketbreaker from Phillips, distributed by FleetPro Parts & Tires. It combines the trailer socket with resettable 30 Amp protection, so a shorted trailer trips a breaker instead of cooking the tractor harness back to the firewall. Anyone who has cut a melted loom out of a chassis knows what an unprotected socket costs: hours of tracing, a new section of harness and a truck sitting while a trailer nobody owns takes the blame. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, trailer repair shops, and owner-operators nationwide.

The Short Trips a Breaker: The 30 Amp Socketbreaker Advantage

Built-in 30 Amp circuit breakers are the whole reason this socket exists. They reset instead of blowing, so a wet trailer that nuisance-trips on Monday is working again once it dries, with no fuse hunt in the dark. The zinc die-cast body handles the weather and the impacts at the back of the cab.

It uses split pin terminals. This socketbreaker is a direct replacement for highly searched industry numbers including Phillips 15-763, Grote 82-0856 and Tectran 670-7230, plus Tectran 38095, Tramec Sloan 38815, Velvac 593054 and 421021.

Vehicle Fitment & Compatibility

This socketbreaker uses a universal design intended for the following commercial applications:

  • Make/Model: Universal - Class 8 tractors and commercial trailers, not vehicle specific
  • Position: Trailer receptacle on the tractor
  • Circuit Protection: Resettable 30 Amp circuit breakers
  • Component Group: Air Lines, Power Cords & Sockets

Direct Replacement & Cross-Reference Numbers:

This Phillips socketbreaker serves as a direct replacement for the following part numbers:

  • Phillips Interchange: 15-763, 15763
  • Grote Interchange: 82-0856, 820856
  • Tectran Interchange: 670-7230, 6707230, 38095
  • Other Interchange: Tramec Sloan 38815, Velvac 593054, 421021
  • Automann Distributor #: PHI15-763

Technical Specifications

  • Component Type: Socketbreaker
  • Pins: 7 pin
  • Pin Style: Split pin
  • Barrel: Extended barrel
  • Circuit Protection: 30 Amp circuit breakers
  • Housing: Zinc die-cast
  • Applications: Universal
  • Weight: 1.8 lbs
  • Package Dims: 6 x 6 x 3 in
  • UPC: 889626601521
  • Product Level: OE (Original Equipment)
  • Brand: Phillips (Distributed by FleetPro Parts & Tires)
Key features
  • Built-In 30 Amp Protection: A shorted trailer trips a breaker instead of cooking the tractor harness back to the firewall.
  • Resettable, Not Replaceable: Breakers reset, so a wet trailer that nuisance-trips is working again once it dries, with no fuse hunt.
  • Zinc Die-Cast Housing: Handles the weather and the impacts that come with living at the back of the cab.
  • Wide Interchange: Replaces Phillips 15-763, Grote 82-0856, Tectran 670-7230 and Tramec Sloan 38815.
Specifications
Component Type
Socketbreaker
Pins
7 pin
Pin Style
Split pin
Barrel
Extended barrel
Circuit Protection
30 Amp circuit breakers
Housing
Zinc die-cast
Applications
Universal
Weight
1.8 lbs
Package Dims
6 x 6 x 3 in
UPC
889626601521
Product Level
OE (Original Equipment)
Questions
Will this fit my truck?
This part fits Universal - Class 8 tractors and commercial trailers, Trailer receptacle on the tractor with built-in circuit protection, Resettable 30 Amp circuit breakers, A trailer short trips a breaker instead of burning the harness. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Grote 82-0856, Grote 820856, Phillips 15-763, Phillips 15763, Tectran 670-7230, Tectran 6707230, Tectran 38095, Tramec Sloan 38815, Velvac 593054, 421021.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
