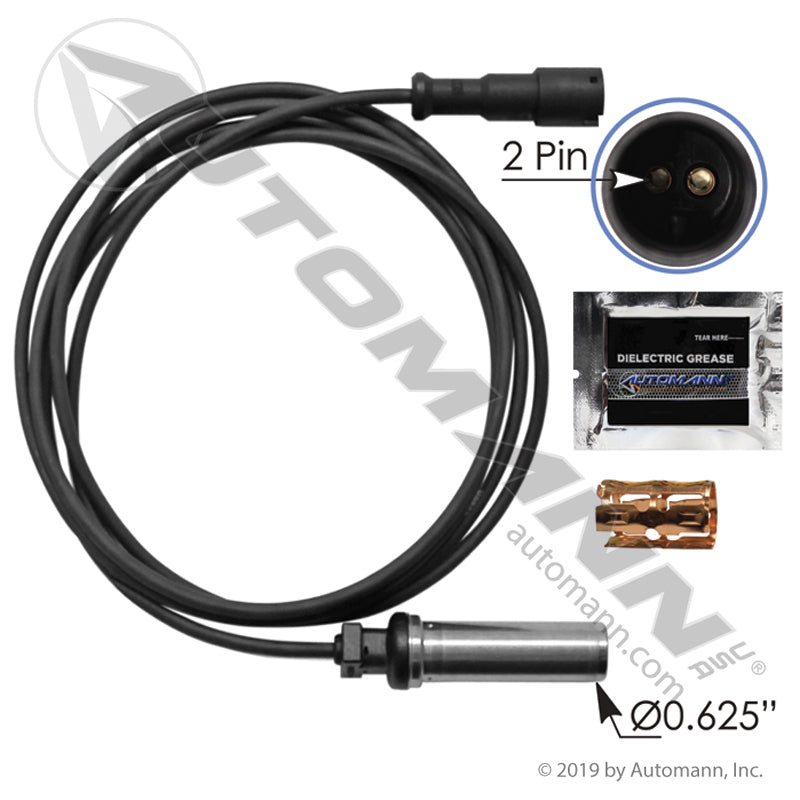

ABS Wheel Speed Sensor Kit - Straight Head 78in Cable - Meritor R955349 TDAR955349 577.A5349

A wheel-speed sensor is a cheap part that shuts down an expensive system. This ABS Wheel Speed Sensor Kit distributed by FleetPro Parts & Tires replaces the wheel-end sensor and its lead in one shot, with a straight head, a long 78in cable, and the sensor clip and grease included. Once the cable chafes through or the head corrodes, the ABS/EBS control unit loses the signal from that wheel, stores a fault code and pulls the truck out of ABS and stability-control operation. Manufactured by Automann to Fleet Standard specifications, we stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Full Reach: The 78in Straight-Head ABS Sensor Kit Advantage

The 78in cable is the defining spec here. Long-lead sensor positions are exactly where technicians get tempted to splice, and a splice in an ABS lead is a future intermittent fault waiting for a wet week. Running the full 78in lead off a straight sensor head means the cable clips back into the original anchor points and stays out of the way of the tire, the frame and the suspension travel.

The kit also carries the two pieces that make the sensor stay put. The sensor clip holds it at the correct depth in the wheel-end bore, and the grease lets it seat and remain serviceable rather than corroding in. Correct sensor signal is critical for ABS/EBS and stability control operation, so both go in new. This is an Automann Fleet Standard kit for Wabco ABS applications on heavy-duty air brake systems.

At FleetPro Parts & Tires, we know the second trip back is the expensive one. This kit is a direct replacement for highly searched industry numbers including Meritor R955349 and Freightliner TDAR955349.

Vehicle Fitment & Compatibility

This ABS wheel-speed sensor kit is intended for the following commercial applications:

• Application: Wabco ABS wheel-speed sensor circuits
• System: Heavy-duty air brake systems with ABS/EBS and stability control
• Location: Wheel end, straight sensor head
• Cable Reach: 78in, long-lead position
• Component Group: Brake System / ABS Sensors

Direct Replacement & Cross-Reference Numbers:

This Automann ABS sensor kit serves as a direct replacement for the following part numbers:

• Meritor Interchange: R955349
• Freightliner Interchange: TDAR955349
• Automann Distributor #: 577.A5349

Technical Specifications

• Component Type: ABS Wheel Speed Sensor Kit
• Head Style: Straight
• Cable Length: 78in
• Includes: Sensor Clip and Grease
• Application: Wabco
• Weight: 0.3 lbs
• Package Dims: 8.65 x 7.3 x 0.625 in
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
