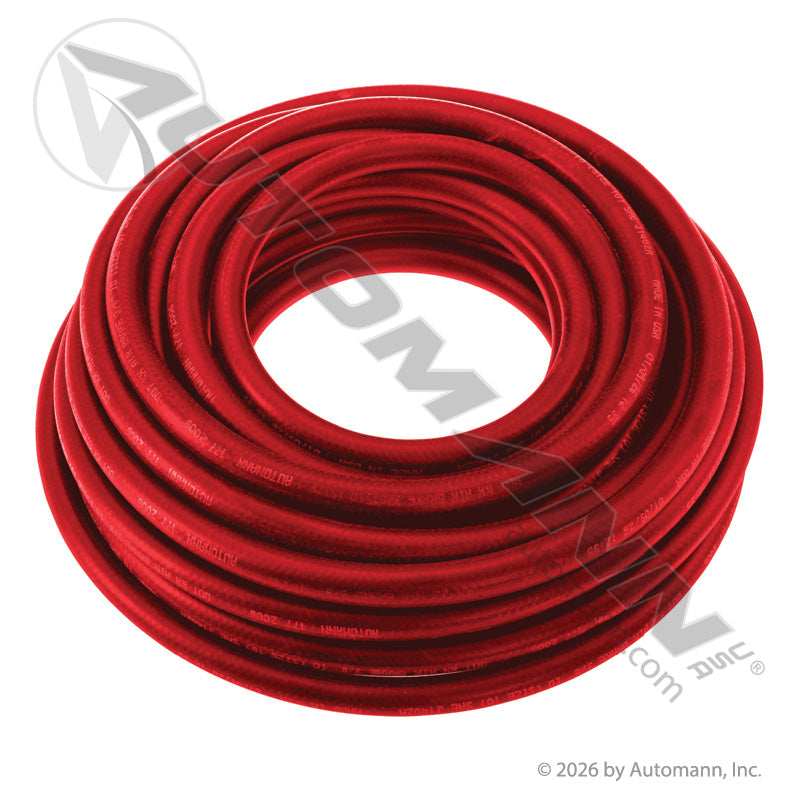

Air Brake Hose - 3/8in ID 50FT Red Roll - Tramec Sloan 31102R 177.2006RD-50
Regular price
$57.54
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Universal - Class 8 tractors, trailers and heavy-duty vehiclesCompressed-air brake circuitsTractor-trailer air brake plumbing and gladhand linesShop roll - cut to length, assemble with reusable fittings
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
1 cross-refTramec Sloan 31102R
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Make up the line yourself with this SAE J1402 air brake hose distributed by FleetPro Parts & Tires. The hose between the tractor and the trailer takes more abuse than almost anything else on the truck โ it flexes on every turn, drags when a tender gives up, and eventually rubs through where nobody is looking. This 50ft roll of 3/8in inner diameter hose is what you cut the replacement from. Manufactured by Automann to Fleet Standard specifications and made in the USA, it is stocked heavily right here in our Hanover Park, Illinois warehouse for lightning-fast shipping to fleets, diesel repair shops, and owner-operators nationwide.
Cut to Fit, Built to Last: The 3/8in J1402 Air Brake Hose Advantage
This hose is built for the real numbers of a heavy-duty air system. It carries a 225 psi working pressure and a 900 psi burst pressure, leaving a wide margin between what the brake system asks of it every day and what it takes to fail it. The 4-spiral polyester reinforcement under the cover delivers that strength while keeping the hose flexible enough to route around frame rails and behind the cab without kinking, and the 3/4in outer diameter is the standard size for assembling with reusable air brake fittings.
A -40F to +200F temperature range means it stays pliable through a Midwest January and shrugs off the heat coming off the engine and compressor side. The red cover keeps this roll straight on the shelf and makes the finished line easy to identify the next time somebody opens up the deck plate. It meets DOT FMVSS 106 and SAE J1402A requirements and is made in the USA.
At FleetPro Parts & Tires, we know a brake job is only right when the plumbing is right. This Automann hose is a direct replacement for the highly searched industry number Tramec Sloan 31102R. Measure the run, cut it once, and assemble it with reusable fittings for a line that outlasts the one it replaced.
Vehicle Fitment & Compatibility
This SAE J1402 air brake hose uses a universal design intended for the following commercial applications:
- Make/Model: Universal - Class 8 tractors, commercial trailers and heavy-duty vehicles
- System: Compressed-air brake circuits
- Typical Use: Tractor-trailer air brake plumbing, gladhand lines and shop repairs
- Assembly: Cut to length and assemble with reusable fittings
- Component Group: Air Brake & Wheel / Air Lines & Power Cords
Direct Replacement & Cross-Reference Numbers:
This Automann air brake hose serves as a direct replacement for the following part numbers:
- Tramec Sloan Interchange: 31102R
- Automann Distributor #: 177.2006RD-50
Technical Specifications
- Component Type: SAE J1402 Air Brake Hose
- Length: 50ft roll
- Inner Diameter: 3/8in
- Outer Diameter: 3/4in
- Working Pressure: 225 psi
- Burst Pressure: 900 psi
- Reinforcement: 4-spiral polyester
- Temperature Range: -40F to +200F
- Color: Red
- Origin: Made in USA
- Compliance: DOT FMVSS 106 / SAE J1402A
- Weight: 10.3 lbs
- Product Level: Fleet Standard Aftermarket
- Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
- 225 PSI Working Pressure: A 225 psi working rating backed by a 900 psi burst rating keeps a wide safety margin between everyday air system pressure and hose failure.
- 4-Spiral Polyester Reinforcement: Four spiral plies of polyester carry the pressure while letting the hose bend around frame rails and behind the cab without kinking.
- All-Season Temperature Range: Rated -40F to +200F, so it stays flexible through a hard winter and holds up to engine and compressor heat.
- DOT and SAE Compliant: Meets DOT FMVSS 106 and SAE J1402A requirements, so the repair holds up to inspection instead of raising questions.
- 50ft Roll, Made in USA: A US-made 50ft roll lets you cut exact lengths and assemble with reusable fittings instead of hunting for a pre-made line.
Specifications
Component Type
SAE J1402 Air Brake Hose
Length
50ft roll
Inner Diameter
3/8in
Outer Diameter
3/4in
Working Pressure
225 psi
Burst Pressure
900 psi
Reinforcement
4-spiral polyester
Temperature Range
-40F to +200F
Color
Red
Origin
Made in USA
Compliance
DOT FMVSS 106 / SAE J1402A
Weight
10.3 lbs
Package Dims
17.5 x 17 x 4.25 in
UPC
889626844416
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 tractors, trailers and heavy-duty vehicles, Compressed-air brake circuits, Tractor-trailer air brake plumbing and gladhand lines, Shop roll - cut to length, assemble with reusable fittings. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Tramec Sloan 31102R.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
