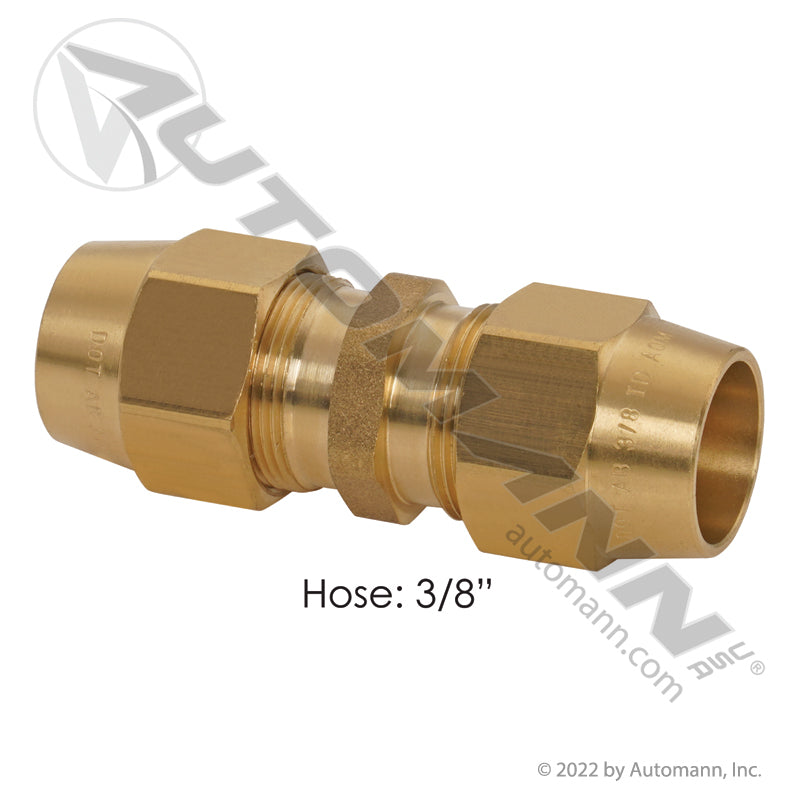

Air Brake Hose Union - 3/8" ID Brass DOT Air Fitting - Euclid E8600 Haldex 11913 177.16976
Air Brake Hose Union - 3/8" ID Brass DOT Air Fitting - Euclid E8600 Haldex 11913 177.16976
Automann

Air Brake Hose Union - 3/8" ID Brass DOT Air Fitting - Euclid E8600 Haldex 11913 177.16976

In stock
SKU: 177.16976
$9.32
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 trucks, tractors and commercial trailersAir brake plumbing on tractors and trailersHoses with 3/8 in inner diameterMid-run hose splices and cut-out repairs
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

2 cross-refs
Euclid E8600 Haldex 11913
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Damage in the middle of a good hose should not cost you the whole run. This brass air brake hose union distributed by FleetPro Parts & Tires joins two ends of 3/8 in inner diameter hose into one continuous, sealed line, so a chafed section gets cut out and the rest of the hose keeps working. Anyone who has pulled a full-length line out of a loom over one rubbed-through spot knows exactly what that saves. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

One Fitting, Two Hose Ends: The 3/8 In Brass Union Advantage

A union is the simplest repair in the air system and the one most often done wrong with hardware-store parts. This is a DOT brass air fitting sized for 3/8 in ID hose, and Automann lists this fitting family as meeting FMVSS 571.106 / DOT requirements for brake circuits โ€” worth knowing when a brake circuit is what you are splicing. The body is brass, and at a shipping weight of just 0.3 lbs it is an easy part to keep two of in the toolbox.

Use it where the run is otherwise sound: rub-through behind a crossmember, a nicked section at a clamp, damage taken at the landing gear. Cut back to clean hose on both sides, union the ends and re-clamp the run so the new joint is supported. At FleetPro Parts & Tires we would rather sell you a union and a foot of hose than a whole assembly. This Automann union is a direct replacement for highly searched industry numbers including Euclid E8600 and Haldex 11913, and it replaces the earlier 177.7024.

Vehicle Fitment & Compatibility

This Fleet Standard brass fitting uses a universal design intended for the following commercial applications:

  • Make/Model: Universal - Class 8 trucks, commercial tractors and trailers
  • System: Air brake plumbing on tractors and trailers
  • Hose: Hoses with 3/8 in inner diameter
  • Service: Joining two hose ends into one continuous line

Direct Replacement & Cross-Reference Numbers:

This Automann brass hose union serves as a direct replacement for the following part numbers:

  • Euclid Interchange: E8600
  • Haldex Interchange: 11913
  • Automann Supersedes: 177.7024
  • Automann Distributor #: 177.16976

Technical Specifications

  • Component Type: Hose Union
  • Hose Size: 3/8 in Inner Diameter
  • Material: Brass
  • Compliance: FMVSS 571.106 / DOT
  • Replaces: 177.7024
  • OEM Reference: Haldex 11913
  • Weight: 0.3 lbs
  • Package dims: 3.375 x 1.187 x 1.062 in
  • UPC: 889626444654
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Saves the Rest of the Hose: Cut out the damaged section and union the good ends instead of pulling a full-length line out of the loom.
  • Brass DOT Air Fitting: A brass-bodied fitting built for the air brake tubing on tractors and trailers.
  • Supported Splice: Cut back to clean hose on both sides and re-clamp the run so the new joint rides supported instead of hanging.
  • Matched to 3/8 In ID Hose: Sized for hoses with a 3/8 in inner diameter so both ends seat and seal.
  • Toolbox-Sized Spare: At 0.3 lbs it is small enough to keep two in the truck for roadside repairs.
Specifications
Component Type
Hose Union
Hose Size
3/8 in Inner Diameter
Material
Brass
Replaces
177.7024
OEM Reference
Haldex 11913
Weight
0.3 lbs
Package dims
3.375 x 1.187 x 1.062 in
UPC
889626444654
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 trucks, tractors and commercial trailers, Air brake plumbing on tractors and trailers, Hoses with 3/8 in inner diameter, Mid-run hose splices and cut-out repairs. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Euclid E8600, Haldex 11913.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
