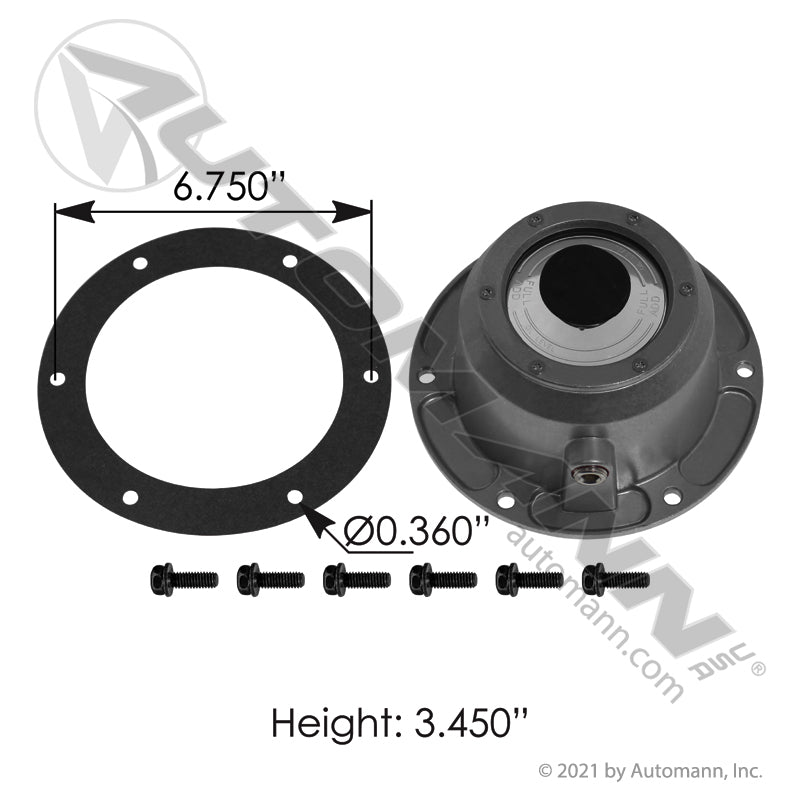

Aluminum Oil Hub Cap - TP Style Vented Center Fill, Magnetic Side Plug - CR 1869 Stemco 343-4195 180.CR1869
Regular price
$24.85
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Universal - oil-lubricated wheel ends, not vehicle specificOil (TP) style hub cap applicationsWheel end service - oil level read through the window without pulling the cap
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
4 cross-refsCR 1869 National 343-195 Stemco 343-4195 Stemco 3434195
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
The hub cap is the only thing standing between an oil-lubricated wheel end and the road. This Aluminum Oil Hub Cap in the CR line from SKF seals and vents that wheel end, and its cloud-free window lets the oil level be read without pulling the cap at all. When a cap cracks, weeps or fogs over, the level stops being checkable, and a wheel end that runs low on oil does not warn anyone twice - it takes the bearings, the spindle and sometimes the wheel with it. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
A Wheel End You Can Actually Inspect: The CR Oil Hub Cap Advantage
This is the oil (TP) style cap, in aluminum and built around three details that matter on a pre-trip. The TF vented center fill plug carries an internal splash shield, so the wheel end can breathe while the shield keeps oil off the window and the level stays readable instead of smearing over the first hour out. The magnetic side fill plug collects steel debris out of the oil, which turns every service into an early warning on bearing wear. And the cloud-free window is what makes the whole thing a ten-second check rather than a job.
It comes ready to install: coated mounting bolts and a gasket are included, so the repair does not stop while somebody hunts for hardware. The cap is universal to oil-lubricated wheel ends and is not vehicle specific, matching by hub cap style rather than by truck model. At FleetPro Parts & Tires, we know a wheel-end job is only right when it can be inspected afterwards. This cap is a direct replacement for highly searched industry numbers including CR 1869, Stemco 343-4195 and National 343-195.
Vehicle Fitment & Compatibility
This SKF CR hub cap uses a universal design intended for the following commercial applications:
- Make/Model: Universal - oil-lubricated wheel ends, not vehicle specific
- Wheel End Type: Oil (TP) style, oil-lubricated
- Use: Seals and vents the wheel end and lets the oil level be read through the window
- Included Hardware: Coated mounting bolts and gasket
- Component Group: Air Brake & Wheel / Wheel End (Seals & Bearings)
Direct Replacement & Cross-Reference Numbers:
This CR aluminum hub cap serves as a direct replacement for the following part numbers:
- CR Interchange: 1869
- Stemco Interchange: 343-4195, 3434195
- National Interchange: 343-195
- Automann Distributor #: 180.CR1869
Technical Specifications
- Component Type: Aluminum Hub Cap, Oil (TP) Style
- Center Fill Plug: TF vented, with internal splash shield
- Side Fill Plug: Magnetic
- Window: Cloud free
- Included: Coated mounting bolts and gasket
- Application: Universal - oil-lubricated wheel ends
- Weight: 1.66 lbs
- Package Dims: 8 x 8 x 4 in
- UPC: 889626568565
- Product Level: OE (Original Equipment)
- Brand: SKF (Distributed by FleetPro Parts & Tires)
Key features
- Read the Oil Without Pulling the Cap: The cloud-free window turns the wheel-end oil check into a ten-second look on a pre-trip instead of a job.
- TF Vented Center Fill With Splash Shield: The vented center fill plug lets the wheel end breathe while the internal splash shield keeps oil off the window so the level stays readable.
- Magnetic Side Fill Plug: The magnetic side plug pulls steel debris out of the oil, giving early warning on bearing wear at every service.
- Bolts and Gasket Included: Coated mounting bolts and a gasket come with the cap, so the wheel end goes back together without a parts run.
- Wide CR Interchange: Direct replacement for CR 1869, Stemco 343-4195 and National 343-195 on oil-lubricated wheel ends.
Specifications
Component Type
Aluminum Hub Cap, Oil (TP) Style
Center Fill Plug
TF vented, with internal splash shield
Side Fill Plug
Magnetic
Window
Cloud free
Included
Coated mounting bolts and gasket
Application
Universal - oil-lubricated wheel ends
Weight
1.66 lbs
Package Dims
8 x 8 x 4 in
UPC
889626568565
Product Level
OE (Original Equipment)
Questions
Will this fit my truck?
This part fits Universal - oil-lubricated wheel ends, not vehicle specific, Oil (TP) style hub cap applications, Wheel end service - oil level read through the window without pulling the cap. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with CR 1869, National 343-195, Stemco 343-4195, Stemco 3434195.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
