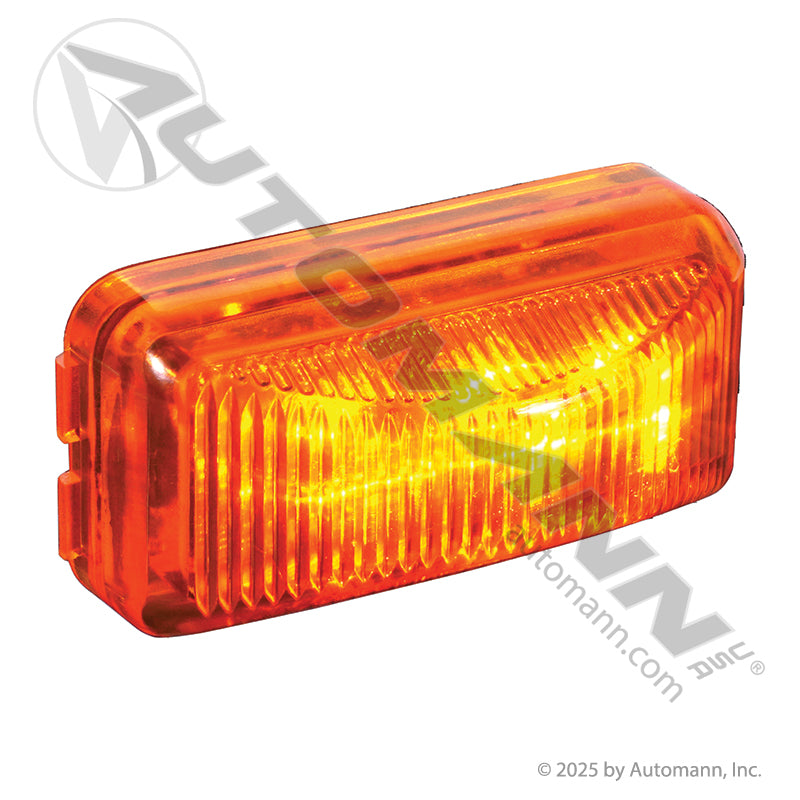

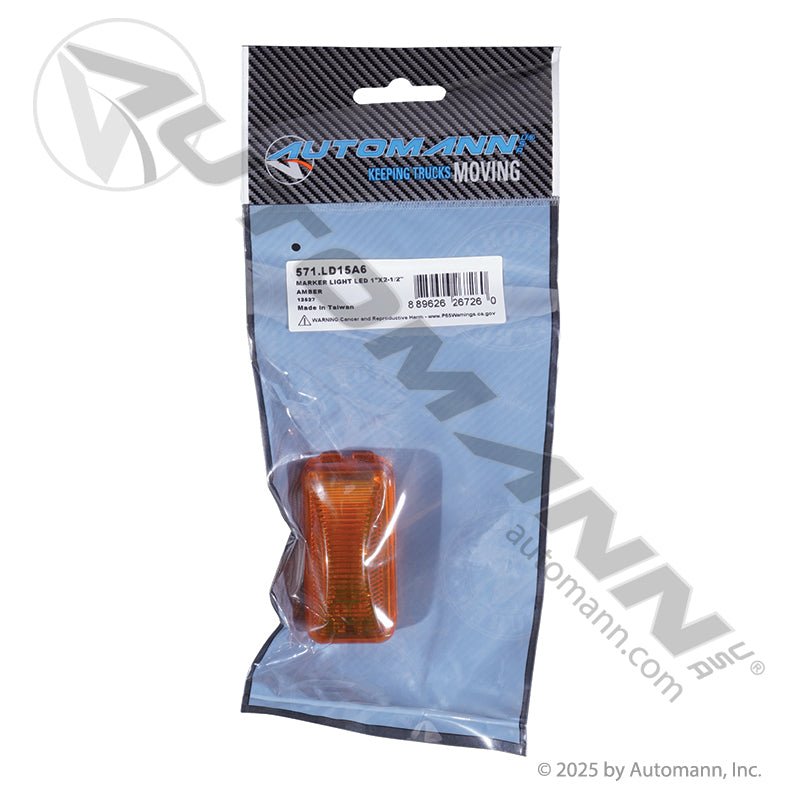

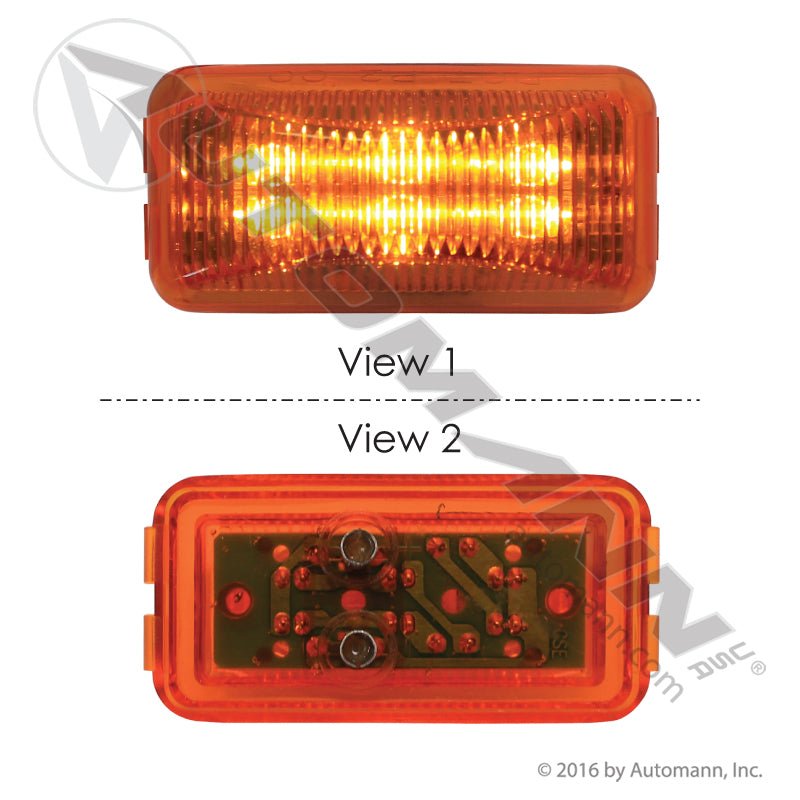

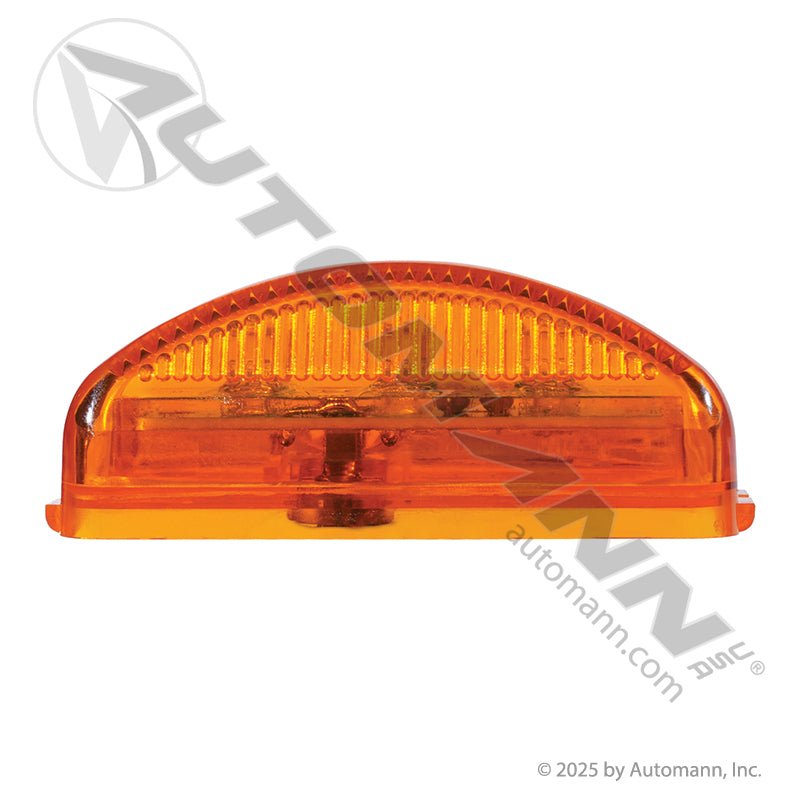

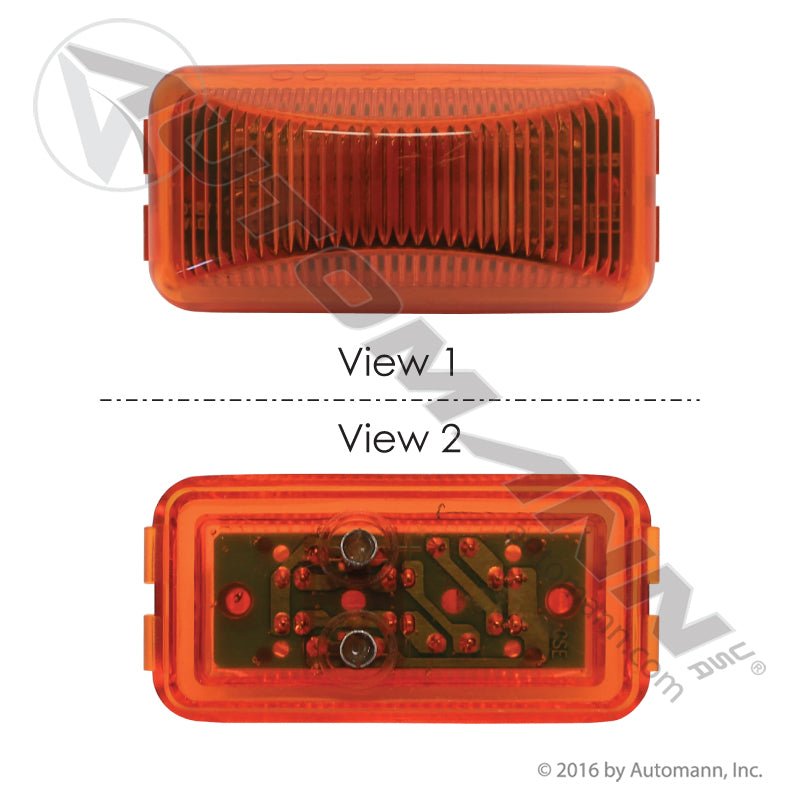

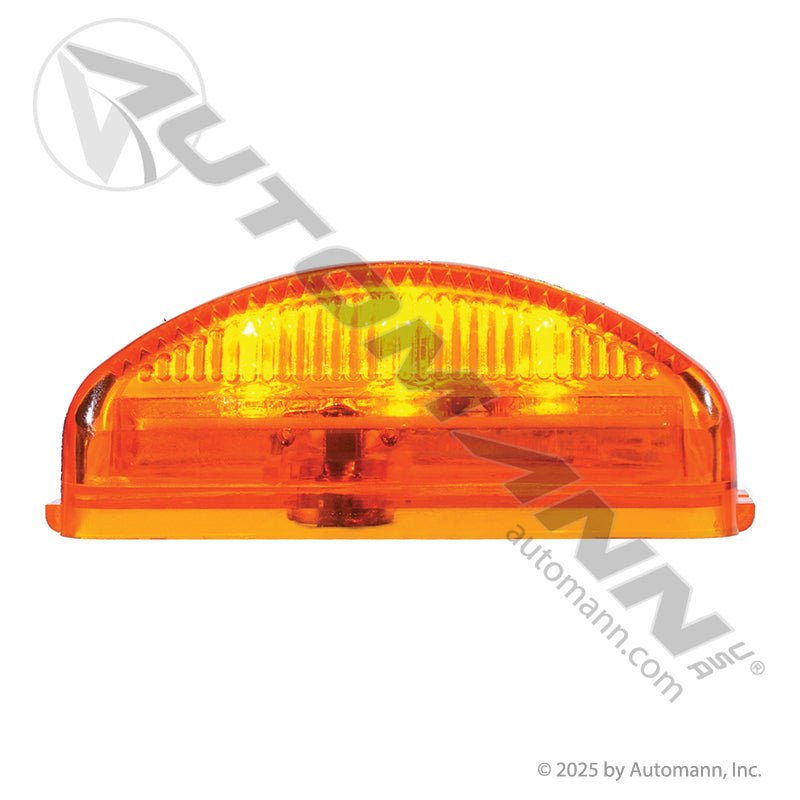

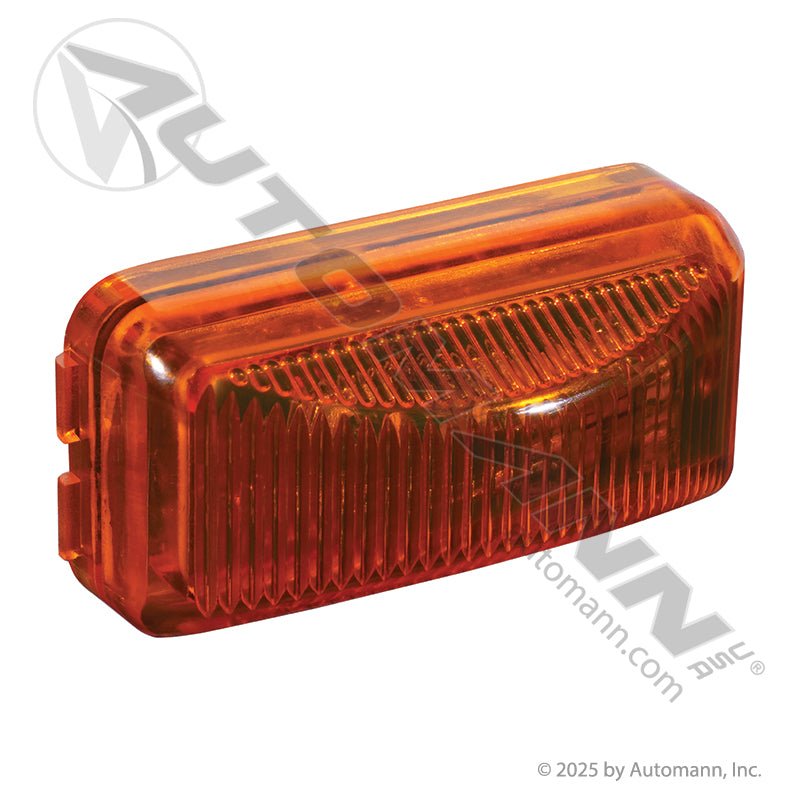

Amber Marker & Clearance LED Light - 1 x 2-1/2 Inch 6-Diode - Trucklite 1560A G1503 571.LD15A6
Amber Marker & Clearance LED Light - 1 x 2-1/2 Inch 6-Diode - Trucklite 1560A G1503 571.LD15A6
Automann

Amber Marker & Clearance LED Light - 1 x 2-1/2 Inch 6-Diode - Trucklite 1560A G1503 571.LD15A6

In stock
SKU: 571.LD15A6
$5.56
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 Trucks, Commercial Trailers, and Utility VehiclesMarks vehicle width and length per DOT lighting requirementsStandard grommet mount, 1 in x 2.5 in rectangular cutoutPL-10 marker harness, 12V systems
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

3 cross-refs
Trucklite 1560A Grote G1503 Optronics AL91AB
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Put a bright amber marker point back on the equipment with this 1 x 2-1/2 Inch Amber LED Marker Light distributed by FleetPro Parts & Tires. Marker and clearance lamps are what tell the traffic around you how wide and how long your rig actually is, and a dark one turns your outline into a guess for the driver closing on you at night. It is also one of the first things a DOT inspector looks for, because a burnt marker takes two seconds to spot. Manufactured by Automann to Fleet Standard specifications, this lamp is stocked heavily right here in our Hanover Park, Illinois warehouse for lightning-fast shipping to fleets, trailer repair shops, and owner-operators nationwide.

Bright Amber, No Filament: The 6-Diode Marker Advantage

This P/T marker lamp packs 6 diodes into a 1 in x 2.5 in rectangular body behind an amber polycarbonate lens that takes road salt, washdowns and highway grit without hazing. It runs on 12V and is built to SAE P2 and FMVSS 108, so it satisfies the photometric standard a marker and clearance lamp is judged against.

Installation is a grommet job. The lamp seats in a standard grommet and the PL-10 connector plugs straight into the existing marker harness, so a failed lamp comes out and a new one goes in without cutting a single wire. Because it is LED, there is no filament inside to shake apart, which is what ends most bulb-type markers long before the bulb would burn out on its own.

At FleetPro Parts & Tires, we know compliance is king. This Automann lamp is a direct replacement for highly searched industry numbers including Trucklite 1560A, Grote G1503 and Optronics AL91AB.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket LED marker light uses a universal design intended for the following commercial applications:

  • Make/Model: Universal Class 8 Trucks, Commercial Trailers, and Utility Vehicles
  • Purpose: Marks Vehicle Width and Length per DOT Lighting Requirements
  • Mounting Style: Grommet Mount
  • Connection: PL-10 Marker Harness, 12-Volt DC
  • Component Group: Exterior Lighting / Marker & Clearance Lights

Direct Replacement & Cross-Reference Numbers:

This Automann LED marker light serves as a direct replacement for the following part numbers:

  • Trucklite Interchange: 1560A
  • Grote Interchange: G1503
  • Optronics Interchange: AL91AB
  • Automann Distributor #: 571.LD15A6

Technical Specifications

  • Component Type: P/T Marker LED Light
  • Size & Shape: 1 in x 2.5 in Rectangular
  • Diode Count: 6
  • Lens Material: Amber Polycarbonate
  • Connector: PL-10
  • Mount: Grommet
  • Voltage: 12V
  • Compliance: SAE P2, FMVSS 108
  • Weight: 0.07 lbs
  • Package Dims: 3.5 x 2.5 x 1.5 in
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Six-Diode Amber Output: Six LEDs light the instant the circuit closes, so the marker point reads clearly to traffic coming up behind you.
  • No Filament to Fail: The LED design removes the filament that road vibration destroys in bulb-type markers on a trailer frame.
  • PL-10 Grommet Swap: Seats in a standard grommet and plugs into the existing PL-10 marker harness, so no wire gets cut.
  • SAE P2 and FMVSS 108: Built to the federal photometric standard for marker and clearance lighting, so it holds up at inspection.
  • Amber Polycarbonate Lens: The polycarbonate lens takes road salt, washdowns and highway grit without hazing over or cracking.
Specifications
Component Type
P/T Marker LED Light
Size & Shape
1 in x 2.5 in Rectangular
Diode Count
6
Lens Material
Amber Polycarbonate
Connector
PL-10
Mount
Grommet
Voltage
12V
Compliance
SAE P2, FMVSS 108
Weight
0.07 lbs
Package Dims
3.5 x 2.5 x 1.5 in
UPC
889626267260
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 Trucks, Commercial Trailers, and Utility Vehicles, Marks vehicle width and length per DOT lighting requirements, Standard grommet mount, 1 in x 2.5 in rectangular cutout, PL-10 marker harness, 12V systems. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Trucklite 1560A, Grote G1503, Optronics AL91AB.
