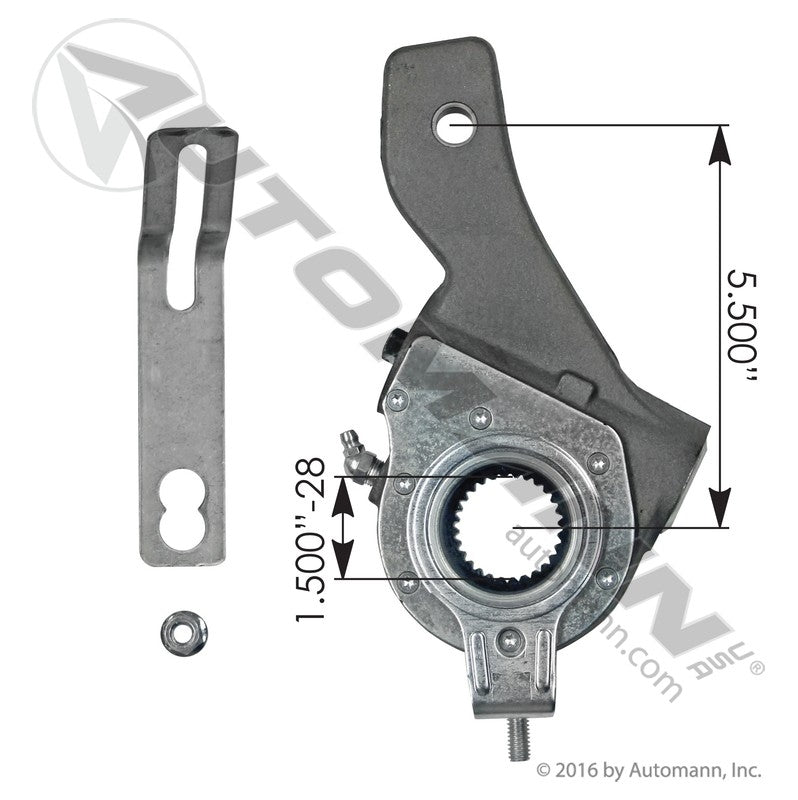

Automatic Slack Adjuster - Haldex Self-Setting 1-1/2in-28 x 5-1/2in Arm - Replaces Haldex 40020231 Volvo MID40020231 135.S2835
Regular price
$101.78
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Drive axle applicationsHaldex Self-Setting Type 1-1/2in-28 x 5-1/2in Arm1/2in clevis holeCan be used in place of standard version 135.2835
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
6 cross-refsFreightliner HDX40020231 Haldex 40920019 Haldex 40020231 IHC ZZ40020231 Mack 539640020231 Volvo MID40020231
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Take the guesswork out of initial brake setup with this Haldex Self-Setting Automatic Slack Adjuster distributed by FleetPro Parts & Tires. Built by Automann for drive axle applications, it converts brake chamber pushrod stroke into S-cam rotation and self-adjusts brake shoe clearance as the linings wear. Worn or seized slack adjusters cause long pushrod stroke and out-of-adjustment brakes, still a top CSA violation and the fastest way to turn a routine inspection into a bad afternoon. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
Set Itself and Stay Set: The Haldex Self-Setting Advantage
The self-setting design is the reason to reach for this one. It fits the Haldex Self-Setting Type 1-1/2in-28 x 5-1/2in Arm position, runs a 1/2in clevis hole, and finds its own starting clearance on installation instead of depending on a technician nailing the initial setting by feel. From there it keeps taking up clearance automatically for the life of the lining.
It also can be used in place of the standard version, 135.2835, so one part number covers both the self-setting and standard positions on drive axles. The 135.H0553 Bracket Kit is included, meaning the anchor bracket arrives with the unit rather than as an afterthought. Replace slack adjusters in axle pairs so both wheel ends stroke the same distance at the same pressure.
At FleetPro Parts & Tires, we know compliance is what keeps the truck earning. This Automann unit is a direct replacement for highly searched industry numbers including Haldex 40020231 and 40920019, Volvo MID40020231, Freightliner HDX40020231, Mack 539640020231 and IHC ZZ40020231.
Vehicle Fitment & Compatibility
This premium aftermarket slack adjuster is intended for the following commercial applications:
- Fits: Haldex Self-Setting Type 1-1/2in-28 x 5-1/2in Arm
- Clevis: 1/2in clevis hole
- Interchange Position: Can be used in place of standard version 135.2835
- Component Group: Air Brake Foundation / Slack Adjusters
Direct Replacement & Cross-Reference Numbers:
This Automann slack adjuster serves as a direct replacement for the following part numbers:
- Freightliner Interchange: HDX40020231
- Haldex Interchange: 40920019, 40020231
- IHC Interchange: ZZ40020231
- Mack Interchange: 539640020231
- Volvo Interchange: MID40020231
- Automann Distributor #: 135.S2835
Technical Specifications
- Component Type: Automatic Brake Slack Adjuster
- Type: Automatic, Haldex Self-Setting type
- Fits: Haldex Self-Setting Type 1-1/2in-28 x 5-1/2in Arm
- Spline: 1-1/2in x 28 spline
- Arm: 5-1/2in
- Style: Self-setting, 1/2in clevis hole; replaces standard 135.2835
- Application: Drive axles
- Includes: 135.H0553 Bracket Kit
- Weight: 6.95 lbs
- Package Dims: 11 x 6.5 x 3.5 in
- Product Level: Premium Aftermarket
- Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
- Self-Setting Installation: Finds its own starting clearance on install, so the initial setting does not depend on doing it by feel.
- Replaces the Standard Version: Can be used in place of 135.2835, so one part number covers both positions on drive axles.
- Bracket Kit Included: The 135.H0553 Bracket Kit ships with the unit, keeping the install to a single trip.
- 1/2in Clevis Hole: Matches the standard clevis pin size for Haldex self-setting drive axle installations.
- Wide OE Interchange: Replaces Haldex, Volvo, Freightliner, Mack and IHC numbers built on 40020231.
Specifications
Component Type
Automatic Brake Slack Adjuster
Type
Automatic, Haldex Self-Setting type
Fits
Haldex Self-Setting Type 1-1/2in-28 x 5-1/2in Arm
Spline
1-1/2in x 28 spline
Arm
5-1/2in
Style
Self-setting, 1/2in clevis hole; replaces standard 135.2835
Application
Drive axles
Includes
135.H0553 Bracket Kit
Weight
6.95 lbs
Package Dims
11 x 6.5 x 3.5 in
UPC
889626014505
Product Level
Premium Aftermarket
Questions
Will this fit my truck?
This part fits Drive axle applications, Haldex Self-Setting Type 1-1/2in-28 x 5-1/2in Arm, 1/2in clevis hole, Can be used in place of standard version 135.2835. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Freightliner HDX40020231, Haldex 40920019, Haldex 40020231, IHC ZZ40020231, Mack 539640020231, Volvo MID40020231.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
