Fitment
Fits these trucks
Drive axles, Haldex-type, 1-1/2 in.-10 splineEaton and Meritor applicationsS-cam foundation brakes5.5-6.5 in. arm
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
12 cross-refsEaton 818552 Eaton 973530 Euclid E6924B Haldex 40010121 Haldex 40910649 Haldex 40910733 Leland L3607 Meritor M807022 Meritor R806022 Meritor R806022A Peterbilt 0305886 40010143
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Keep brake stroke in adjustment without reaching for a wrench with this Automatic Slack Adjuster distributed by FleetPro Parts & Tires. Built by Automann for Haldex-type drive axle applications, it converts brake chamber pushrod stroke into S-cam rotation and takes up shoe clearance on its own as the linings wear. A worn or seized slack adjuster is how a truck ends up with a long pushrod stroke and out-of-adjustment brakes, one of the surest ways to fail a roadside inspection. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
Stroke Under Control: The Haldex Type Slack Adjuster Advantage

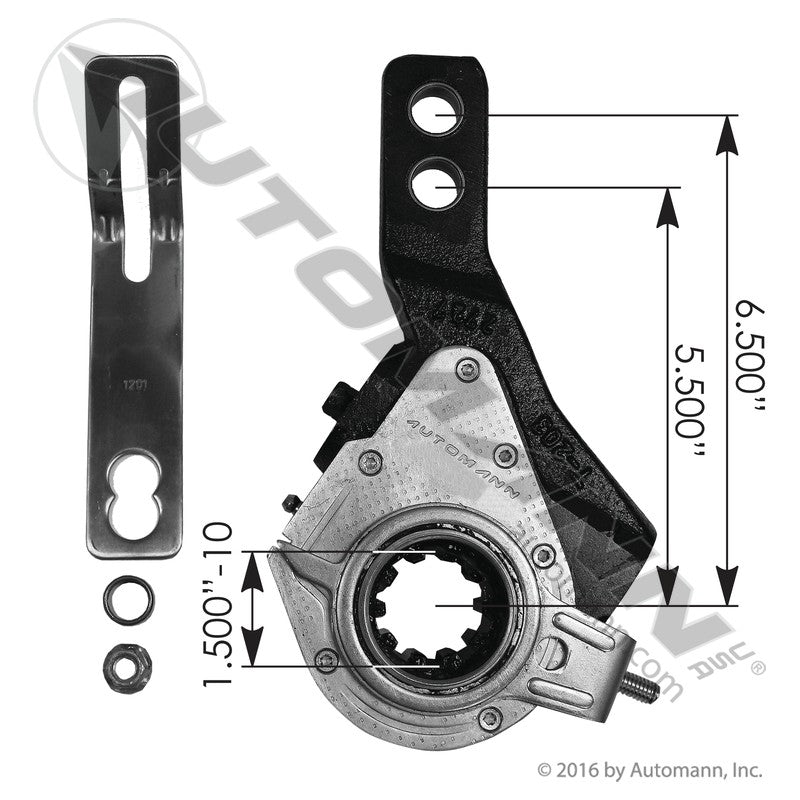

This unit uses the Haldex type 1-1/2 in.-10 spline with a 5.5-6.5 in. arm, the combination found across Eaton and Meritor drive axle applications. Mounting hardware is included, so it goes on complete instead of sending you back to the counter for a bracket halfway through the job. Because it self-adjusts, it holds S-cam foundation brakes at the right shoe clearance through the life of the lining rather than drifting long between manual adjustments and quietly costing you brake torque.
Slack adjusters work as a set. Replace them in axle pairs so both wheel ends stroke the same distance at the same pressure โ a mismatched pair brakes unevenly no matter how good the new unit is, and it chews the lining on whichever side is doing the extra work. Automann builds this one to Premium specification, which is where you want to be on a component that spends its life exposed to road salt and vibration under the chassis.
At FleetPro Parts & Tires, we know compliance is what keeps the truck earning. This Automann slack adjuster is a direct replacement for highly searched industry numbers including Haldex 40010121, Meritor R806022, Euclid E6924B, Eaton 818552 and Peterbilt 0305886.
Vehicle Fitment & Compatibility
This premium aftermarket slack adjuster is intended for the following commercial applications:
- Make/Model: Drive axles, Haldex-type (Eaton and Meritor applications)
- Spline: 1-1/2 in.-10 Spline
- Arm Length: 5.5-6.5 in.
- System: S-cam foundation brakes
- Component Group: Air Brake Foundation / Slack Adjusters
Direct Replacement & Cross-Reference Numbers:
This Automann slack adjuster serves as a direct replacement for the following part numbers:
- Eaton Interchange: 818552, 973530
- Euclid Interchange: E6924B
- Haldex Interchange: 40010121, 40910649, 40910733
- Leland Interchange: L3607
- Meritor Interchange: M807022, R806022, R806022A
- Peterbilt Interchange: 0305886
- Additional Interchange: 40010143
- Automann Distributor #: 135.1031
Technical Specifications
- Component Type: Automatic Brake Slack Adjuster
- Type: Automatic, Haldex type
- Spline: 1-1/2 in.-10 Spline
- Arm: 5.5-6.5 in.
- Application: Drive axles (Eaton, Meritor applications)
- Includes: Hardware included
- Product Level: Premium Aftermarket
- Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
- Adjusts Itself: Keeps brake stroke in adjustment automatically as the linings wear, instead of relying on someone remembering to do it.
- Hardware Included: Ships with the mounting hardware, so the swap finishes in one trip rather than stalling on a missing bracket.
- Wide Haldex-Type Interchange: Covers Haldex, Meritor, Euclid, Eaton, Leland and Peterbilt numbers including 40010121 and R806022.
- Correct 10 Spline Fit: The 1-1/2 in.-10 spline and 5.5-6.5 in. arm match Haldex-type Eaton and Meritor drive axle applications.
- Premium Build: Automann Premium specification for a part that lives exposed under the chassis in salt, spray and vibration.
Specifications
Component Type
Automatic Brake Slack Adjuster
Type
Automatic, Haldex type
Spline
1-1/2 in.-10 Spline
Arm
5.5-6.5 in.
Application
Drive axles, Haldex-type (Eaton, Meritor applications)
Includes
Hardware included
UPC
889626014062
Product Level
Premium Aftermarket
Questions
Will this fit my truck?
This part fits Drive axles, Haldex-type, 1-1/2 in.-10 spline, Eaton and Meritor applications, S-cam foundation brakes, 5.5-6.5 in. arm. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Eaton 818552, Eaton 973530, Euclid E6924B, Haldex 40010121, Haldex 40910649, Haldex 40910733, Leland L3607, Meritor M807022, Meritor R806022, Meritor R806022A, Peterbilt 0305886, 40010143.
