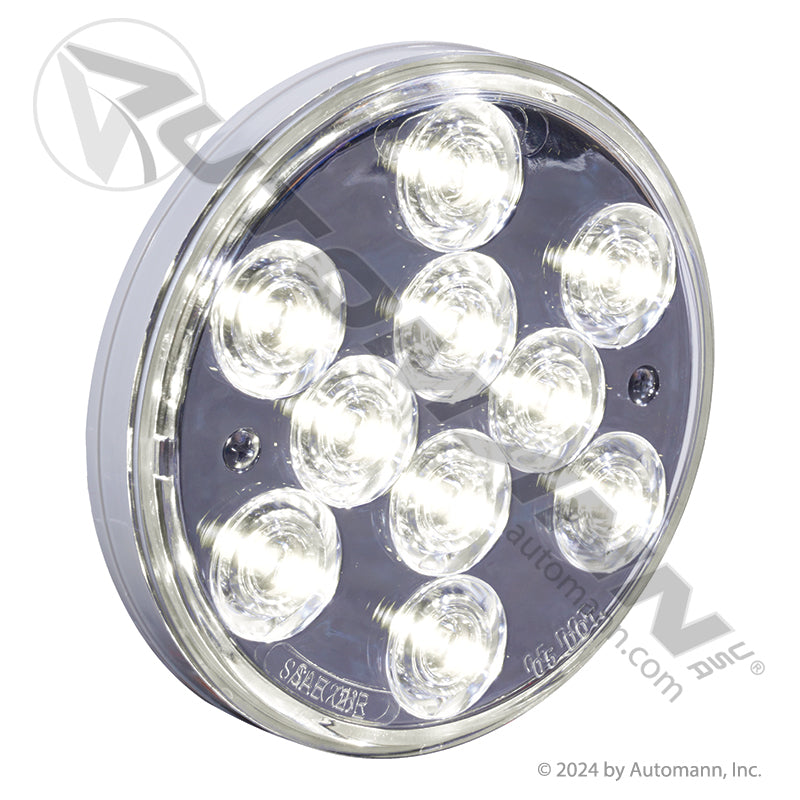

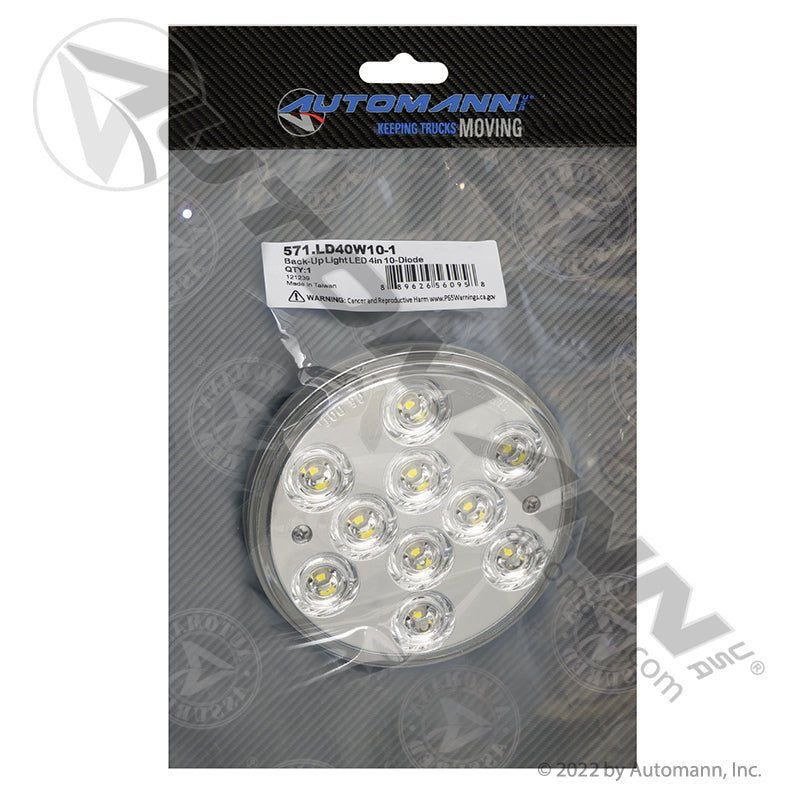

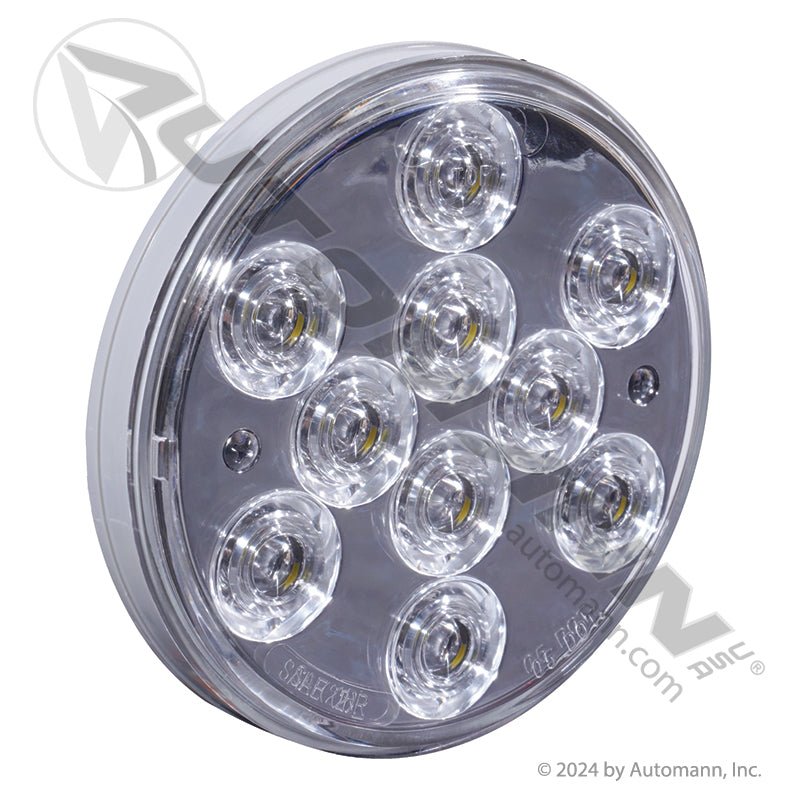

Back-Up LED Light - 4 Inch Round Clear 10-Diode with Reflector - Buyers Products 5624350 571.LD40W10-1
Back-Up LED Light - 4 Inch Round Clear 10-Diode with Reflector - Buyers Products 5624350 571.LD40W10-1
Automann

Back-Up LED Light - 4 Inch Round Clear 10-Diode with Reflector - Buyers Products 5624350 571.LD40W10-1

In stock
SKU: 571.LD40W10-1
$17.79
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - trucks and trailersReverse lighting - rear panel back-up lampStandard 4in round grommet mount12 Volt DC electrical systems
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

9 cross-refs
Buyers Products 5624350 UBLights MTLED4000-10C UBLights MTLED400010C Uni-Bond LED400010C 8269 BUL11CBP BU11CB 75767 TLED4MW
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

See what you are backing into with this 4in round clear back-up LED lamp distributed by FleetPro Parts & Tires. It runs 10 diodes behind a clear lens with a built-in reflector, and it is the lamp that decides whether a night-time dock approach is a controlled one or a guess in the mirrors. A weak or dead reverse lamp is also an inspection item, and on an incandescent unit it is usually the filament that has finally given up to vibration rather than anything wrong with the wiring. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, trailer repair shops, and owner-operators nationwide.

Light Where The Mirrors Are Dark: The 10-Diode Back-Up Advantage

LEDs give a reverse lamp two things a bulb cannot. The first is instant-on: the moment reverse is selected, the light is at full output, with no glow-up delay while you are already moving. The second is survival - there is no filament to break, so the lamp keeps working through the impacts and vibration a rear panel takes every day at a dock. The lamp runs on 12 Volt, meets FMVSS 108 and carries SAE code (2)R for reverse service.

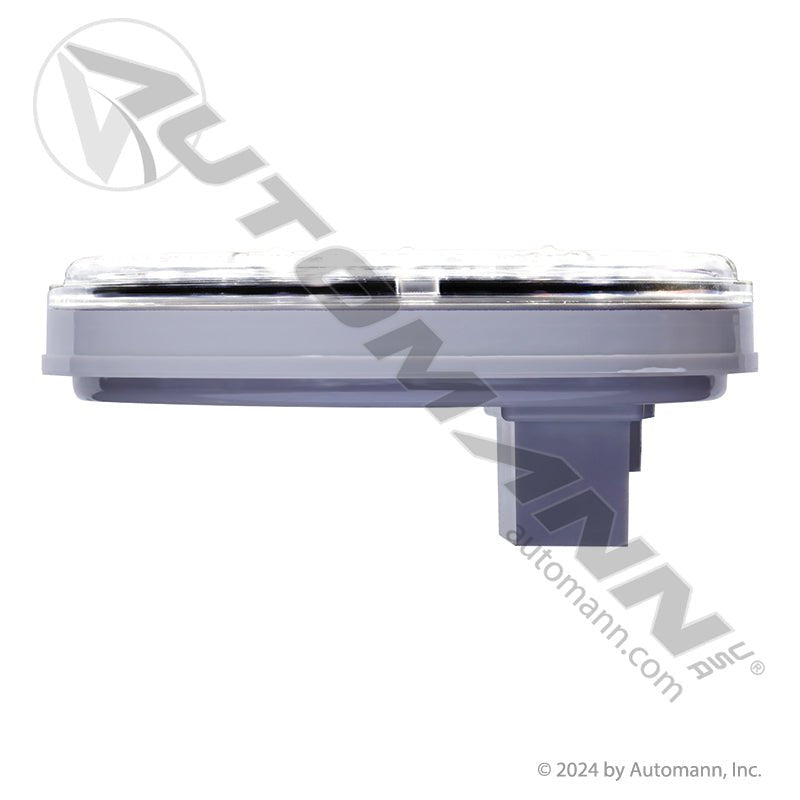

It connects through a PL-2 connector and installs as a grommet mount, dropping into the standard 4in round reverse-lamp opening already in the panel. Weight is 0.36 lbs. If the unit is still on incandescent in this position, the matching Automann bulb-type lamp is 571.LG40W. This LED is a direct replacement for highly searched industry numbers including Buyers Products 5624350, UBLights MTLED4000-10C and MTLED400010C, Uni-Bond LED400010C, plus 8269, BUL11CBP, BU11CB, 75767 and TLED4MW.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket LED light uses a universal design intended for the following commercial applications:

  • Make/Model: Universal - trucks and trailers
  • Position: Reverse lighting - rear panel back-up lamp
  • Connector: PL-2 plug-in
  • Mounting Style: Grommet mount, standard 4in round opening
  • System Requirement: 12 Volt DC electrical systems

Direct Replacement & Cross-Reference Numbers:

This Automann LED light serves as a direct replacement for the following part numbers:

  • Buyers Products Interchange: 5624350
  • UBLights Interchange: MTLED4000-10C, MTLED400010C
  • Uni-Bond Interchange: LED400010C
  • Additional Interchange: 8269, BUL11CBP, BU11CB, 75767, TLED4MW
  • Automann Distributor #: 571.LD40W10-1

Technical Specifications

  • Component Type: Back-Up LED Light
  • Size & Shape: 4in Round
  • Diode Count: 10 LED
  • Lens Color: Clear
  • Reflector: Built-in
  • Connector: PL-2
  • Mount: Grommet
  • Voltage: 12 Volt
  • Compliance: FMVSS 108, SAE Code (2)R
  • Incandescent Equivalent: 571.LG40W
  • Weight: 0.36 lbs
  • Package Dims: 4.5 x 4.5 x 2 in
  • Condition: New
  • Warranty: 1-Year FleetPro Warranty
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Full Output The Instant Reverse Is Selected: No warm-up delay, so the light is there before the truck has moved.
  • No Filament To Break: A sealed LED unit survives the vibration and dock impacts that end an incandescent reverse lamp.
  • Built-In Reflector: Adds rear conspicuity when the lamp is unlit and the unit is parked.
  • PL-2 Plug-In: Connects to the existing PL-2 pigtail and drops into the standard 4in round grommet, so nothing is spliced.
  • FMVSS 108 With SAE Code (2)R: Carries the reverse-lamp classification an inspector looks for.
Specifications
Component Type
Back-Up LED Light
Size & Shape
4in Round
Diode Count
10 LED
Lens Color
Clear
Reflector
Built-in
Connector
PL-2
Mount
Grommet
Voltage
12 Volt
Compliance
FMVSS 108, SAE Code (2)R
Incandescent Equivalent
571.LG40W
Weight
0.36 lbs
Package Dims
4.5 x 4.5 x 2 in
Condition
New
Warranty
1-Year FleetPro Warranty
UPC
889626560958
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - trucks and trailers, Reverse lighting - rear panel back-up lamp, Standard 4in round grommet mount, 12 Volt DC electrical systems. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Buyers Products 5624350, UBLights MTLED4000-10C, UBLights MTLED400010C, Uni-Bond LED400010C, 8269, BUL11CBP, BU11CB, 75767, TLED4MW.
