Bar Hanger Mount Kit 5/8in End Mount - 2.0in Centers LH & RH Pair - Replaces Betts B600L B600R 562.511

An end mount is what actually keeps a mud flap bar attached to the truck, and when one corrodes through the bar drops, the flap folds under the tire, and the whole assembly comes off somewhere between two exits. This Bar Hanger Mount Kit distributed by FleetPro Parts & Tires replaces both ends at once: it accepts 5/8in square stock hanger bars, runs 2.0in mounting centers, and ships as a matched left-hand and right-hand pair. Manufactured by Automann to Fleet Standard specifications, these are stocked heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, trailer repair shops, and owner-operators nationwide.

Both Sides in One Box: The End Mount Pair Advantage

Flap hardware is handed, and that is where most orders go wrong. Buy a single bracket and you find out at the truck that you needed the other hand, so the trailer sits on the pad while somebody drives back to the counter. This kit removes the guess. One 562.511L and one 562.511R mount in the box cover the left and right ends of the same bar under a single part number.

The end mount geometry captures the hanger bar at its ends rather than through the middle, which keeps the span clean and puts the fasteners where you can still reach them with the flap hung. Each mount is sized for 5/8in square stock, the standard bar this hardware family is built around, and lands on 2.0in centers. Measure the pattern you are pulling off before you order, because on flap hardware the center distance is the fitment. The pair weighs 3.15 lbs, so it ships as a parcel and gets to the yard fast.

At FleetPro Parts & Tires, we would rather sell you the right bracket once. This kit is a direct replacement for highly searched industry numbers including Betts B600L and B600R, and Fleet Engineers 03100893.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket mount kit uses a universal design intended for the following commercial applications:

• Make/Model: Universal - Class 8 trucks and commercial trailers
• Application: Mounts and protects mud flaps
• Bar Size: Accepts 5/8in square stock hangers
• Mounting Centers: 2.0in
• Mounting Style: End mount, LH and RH
• Component Group: Body & Visibility / Mudguards & Mudflap Hangers

Direct Replacement & Cross-Reference Numbers:

This Automann mount kit serves as a direct replacement for the following part numbers:

• Betts Interchange: B600L, B600R
• Fleet Engineers Interchange: 03100893
• Automann Distributor #: 562.511

Technical Specifications

• Component Type: Bar Hanger Mount Kit
• Mount Style: End Mount (LH + RH)
• Bar Size: Accepts 5/8in Square Stock
• Mounting Centers: 2.0in

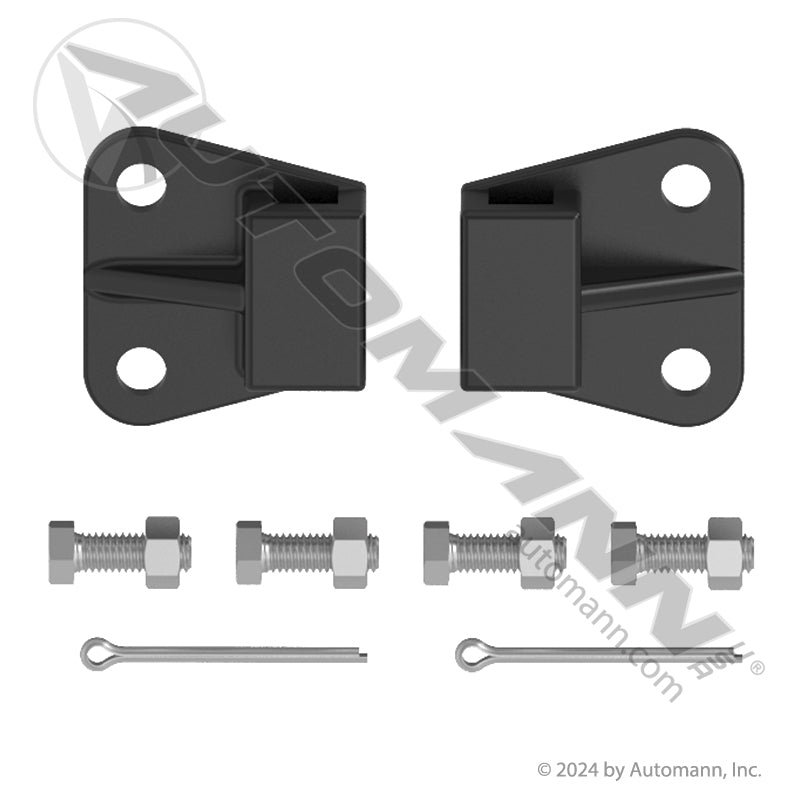

• Kit Contents: (1) 562.511L Mount and (1) 562.511R Mount
• Condition: New
• Warranty: 1-Year FleetPro Warranty
• Weight: 3.15 lbs
• Package Dims: 4.228 x 3.177 x 3.307 in
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
