Bar Hanger Mount Kit 5/8in Horizontal Mount - 1.875in Centers - Replaces Betts K711 03100899 562.513

Mud flap brackets live in the worst real estate on the truck, down in the spray, the salt and the stone chips, where a rusted mount lets the bar sag until the flap is riding the tread. This Bar Hanger Mount Kit distributed by FleetPro Parts & Tires puts a fresh pair back on: two 562.513B mounts for 5/8in square stock hanger bars on tight 1.875in mounting centers, with all mounting hardware in the box. Manufactured by Automann to Fleet Standard specifications, these are stocked heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, trailer repair shops, and owner-operators nationwide.

Tight Pattern, Small Footprint: The Horizontal Mount Advantage

Not every mounting face gives you room to work. The horizontal orientation lays the two fastening points side by side on 1.875in mounting centers, a compact pattern that lands where a wider bolt spread simply will not. Measure the holes you are replacing before you order. On flap hardware the centers are the fitment, and 1.875in either matches the face in front of you or it does not.

Both mounts accept 5/8in square stock, the standard hanger bar this hardware family is built around, and all mounting hardware ships in the box, so the bracket, the bolts and the nuts arrive as one part number instead of three separate line items. The pair weighs 1.95 lbs. It is small, it is cheap, and it is the only piece of hardware standing between a good flap and a shredded one at the side of the road.

At FleetPro Parts & Tires, we would rather sell you the right bracket once. This kit is a direct replacement for highly searched industry numbers including Betts K711 and Fleet Engineers 03100899.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket mount kit uses a universal design intended for the following commercial applications:

• Make/Model: Universal - Class 8 trucks and commercial trailers
• Application: Mounts and protects mud flaps
• Bar Size: Accepts 5/8in square stock hangers
• Mounting Centers: 1.875in
• Mounting Style: Horizontal, 2 mounts
• Component Group: Body & Visibility / Mudguards & Mudflap Hangers

Direct Replacement & Cross-Reference Numbers:

This Automann mount kit serves as a direct replacement for the following part numbers:

• Betts Interchange: K711
• Fleet Engineers Interchange: 03100899
• Automann Distributor #: 562.513

Technical Specifications

• Component Type: Bar Hanger Mount Kit
• Mount Style: Horizontal (2 Mounts)
• Bar Size: Accepts 5/8in Square Stock
• Mounting Centers: 1.875in

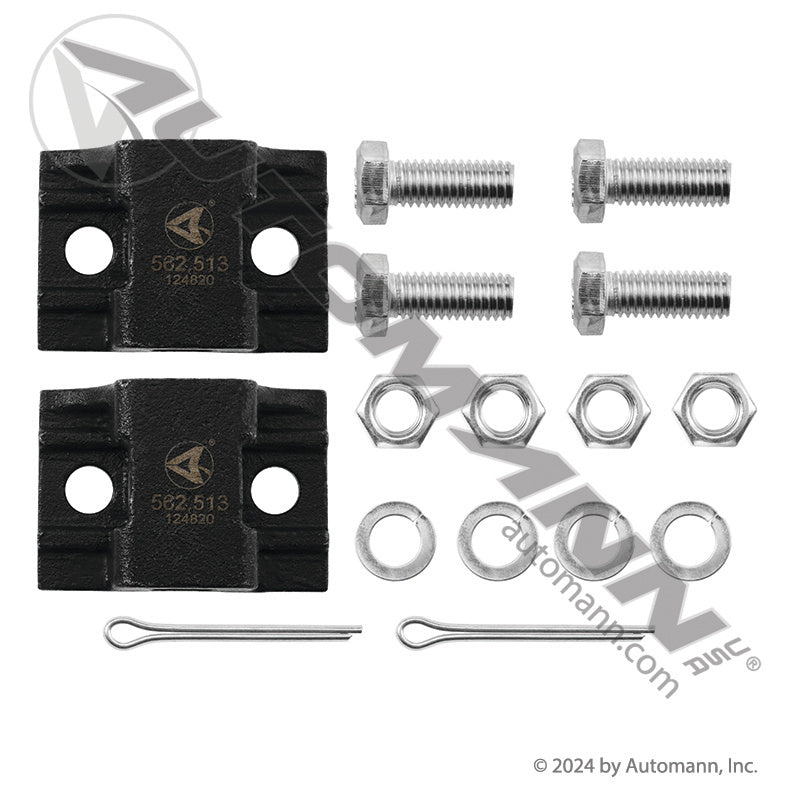

• Kit Contents: (2) 562.513B Mounts and All Mounting Hardware
• Condition: New
• Warranty: 1-Year FleetPro Warranty
• Weight: 1.95 lbs
• Package Dims: 4.5 x 4.812 x 1.234 in
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
