Bar Hanger Mount Kit 5/8in Vertical Mount - 3.313in Centers - Replaces Betts K650 03100891 562.512

A hanger bar that is loose at the bracket does not stay merely loose for long. It works the holes oval, then the flap starts swinging into the tire and the mount tears out of the mounting face entirely. This Bar Hanger Mount Kit distributed by FleetPro Parts & Tires is the vertical-pattern bracket that ends that cycle: two 562.512B mounts that accept 5/8in square stock hanger bars on 3.313in mounting centers, shipped complete with all mounting hardware. Manufactured by Automann to Fleet Standard specifications, these are stocked heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, trailer repair shops, and owner-operators nationwide.

Nothing Else to Buy: The Complete Vertical Mount Kit Advantage

The frustrating part of flap hardware is rarely the bracket itself. It is the second trip for the bolts, washers and nuts that nobody counted before the job started. This kit ships all mounting hardware alongside the two mounts, so the work goes from box to bar without a parts run in the middle of it and without somebody substituting whatever fastener happened to be in the drawer.

The vertical orientation stacks the two fastening points one above the other on 3.313in centers. That is the pattern to order when the mounting face gives you height to work with rather than width, and it puts both fasteners in line so the load pulls straight down the bracket instead of trying to rotate it. Both mounts are sized for 5/8in square stock, the standard hanger bar this hardware family is built around. Check the centers on the bracket you are pulling off first, because 3.313in is a specific dimension and it is the one that decides whether this kit bolts straight up.

At FleetPro Parts & Tires, we would rather sell you the right bracket once. This kit is a direct replacement for highly searched industry numbers including Betts K650 and Fleet Engineers 03100891.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket mount kit uses a universal design intended for the following commercial applications:

• Make/Model: Universal - Class 8 trucks and commercial trailers
• Application: Mounts and protects mud flaps
• Bar Size: Accepts 5/8in square stock hangers
• Mounting Centers: 3.313in
• Mounting Style: Vertical, 2 mounts
• Component Group: Body & Visibility / Mudguards & Mudflap Hangers

Direct Replacement & Cross-Reference Numbers:

This Automann mount kit serves as a direct replacement for the following part numbers:

• Betts Interchange: K650
• Fleet Engineers Interchange: 03100891
• Automann Distributor #: 562.512

Technical Specifications

• Component Type: Bar Hanger Mount Kit
• Mount Style: Vertical (2 Mounts)
• Bar Size: Accepts 5/8in Square Stock
• Mounting Centers: 3.313in

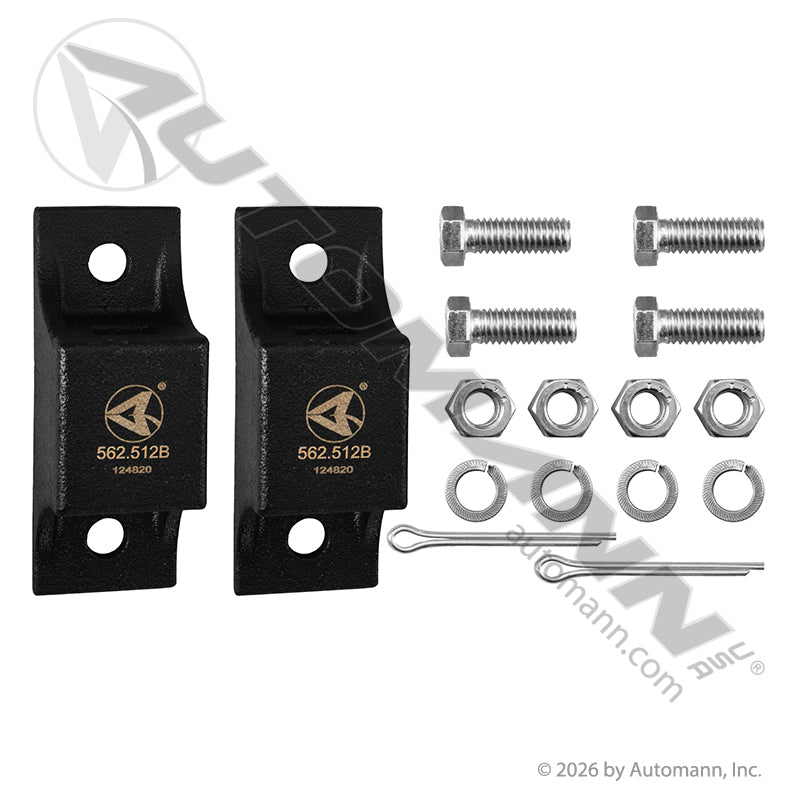

• Kit Contents: (2) 562.512B Mounts and All Mounting Hardware
• Condition: New
• Warranty: 1-Year FleetPro Warranty
• Weight: 3.75 lbs
• Package Dims: 6.75 x 4.75 x 2.25 in
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
