Bar Hanger Mount Kit 5/8in Wide Mount - 2-7/8in Centers - Replaces Betts K1732 03100896 562.514

Highway wind and wheel spray never stop working on a mud flap, and every bit of that load goes into the brackets holding the hanger bar. Let a mount go and the bar whips until the holes elongate, the fasteners loosen and the flap departs at speed. This Bar Hanger Mount Kit distributed by FleetPro Parts & Tires is the wide-pattern answer: two 562.514B mounts for 5/8in square stock hanger bars on 2-7/8in mounting centers, with all mounting hardware included. Manufactured by Automann to Fleet Standard specifications, these are stocked heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, trailer repair shops, and owner-operators nationwide.

A Wider Stance: The Wide Mount Advantage

The wide mount pattern spreads its two fastening points to 2-7/8in centers, setting the bolts farther apart on the mounting face. A wider bolt spread gives the bracket a longer lever against the twisting load a flap bar delivers every time the flap catches wind or a tire throws slush at it, which is why this pattern turns up where the bar takes a beating. It is also, plainly, the pattern that matches some mounting faces and not others, so measure the centers on the bracket coming off before you order.

Both mounts accept 5/8in square stock, the standard hanger bar this hardware family is built around, and all mounting hardware ships with them, so there is nothing left to source before the job starts. The pair weighs 2.36 lbs and moves as a parcel, which means a bracket that failed on a Tuesday does not hold a trailer out of service until the following week.

At FleetPro Parts & Tires, we would rather sell you the right bracket once. This kit is a direct replacement for highly searched industry numbers including Betts K1732 and Fleet Engineers 03100896.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket mount kit uses a universal design intended for the following commercial applications:

• Make/Model: Universal - Class 8 trucks and commercial trailers
• Application: Mounts and protects mud flaps
• Bar Size: Accepts 5/8in square stock hangers
• Mounting Centers: 2-7/8in
• Mounting Style: Wide mount, 2 mounts
• Component Group: Body & Visibility / Mudguards & Mudflap Hangers

Direct Replacement & Cross-Reference Numbers:

This Automann mount kit serves as a direct replacement for the following part numbers:

• Betts Interchange: K1732
• Fleet Engineers Interchange: 03100896
• Automann Distributor #: 562.514

Technical Specifications

• Component Type: Bar Hanger Mount Kit
• Mount Style: Wide Mount (2 Mounts)
• Bar Size: Accepts 5/8in Square Stock
• Mounting Centers: 2-7/8in

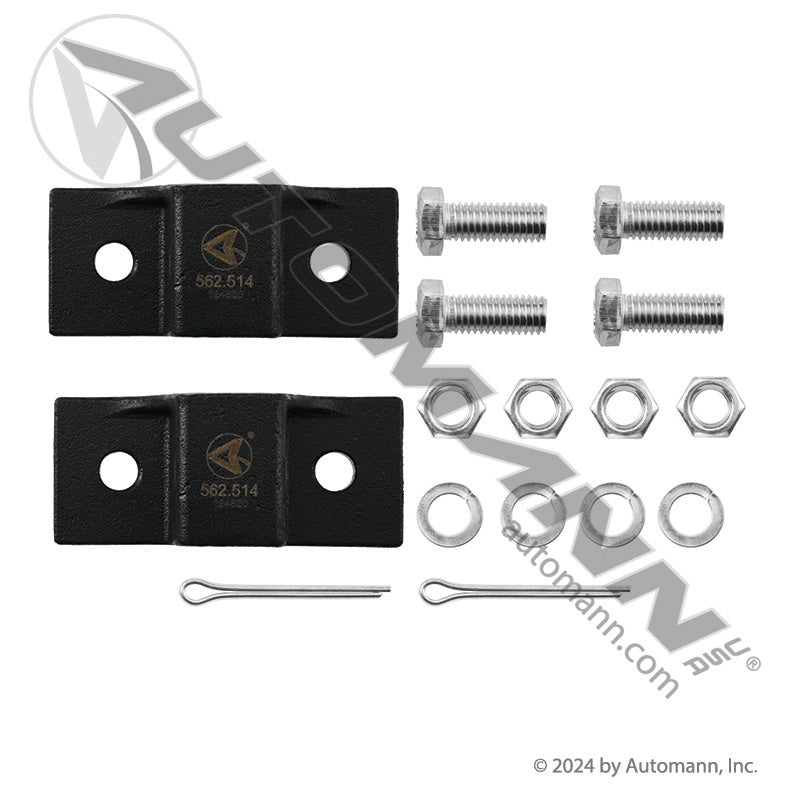

• Kit Contents: (2) 562.514B Mounts and All Mounting Hardware
• Condition: New
• Warranty: 1-Year FleetPro Warranty
• Weight: 2.36 lbs
• Package Dims: 4.007 x 1.881 x 1.9 in
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
