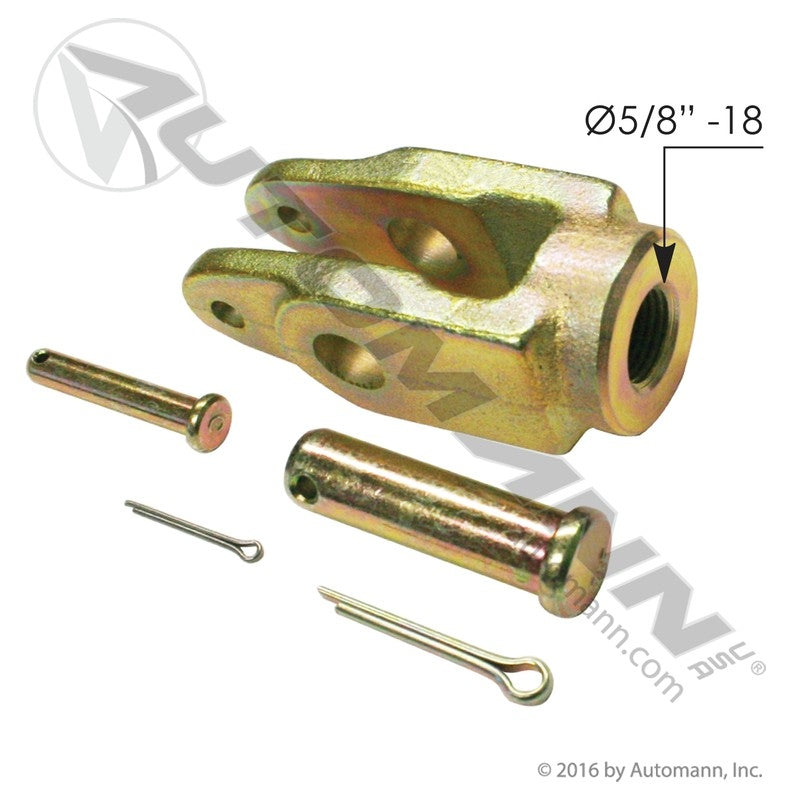

Brake Clevis Kit - Gunite Type 5/8in-18 Thread 1.0in Pin Centers - Gunite AS3000 Haldex CQ36541 179.YK5814

The clevis is the small piece of hardware that ties the brake chamber pushrod to the slack adjuster, and when it wears out the whole foundation brake goes out of adjustment with it. This Gunite-type Brake Clevis Kit distributed by FleetPro Parts & Tires replaces that joint complete, with a 5/8in-18 threaded body, 1.0in pin centers and both pins in the box. Worn pins and elongated clevis holes add slop directly to pushrod stroke, which pushes brakes toward out-of-adjustment and steals stopping power you paid for at the shoe. Manufactured by Automann to Fleet Standard specifications, we stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Stroke You Do Not Waste: The Gunite-Type Clevis Kit Advantage

This is a straight, Gunite-type clevis with a 5/8in-18 thread, so it threads onto the chamber pushrod exactly where the old one came off, and its 1.0in pin center-to-center dimension keeps the slack adjuster geometry the axle was built around. Change either number and the free stroke and the applied angle change with it, which is why a clevis is a match-the-numbers part rather than a close-enough part.

The kit ships with both the 1/2in and 1/4in pins, and that matters more than it sounds. Most of the play in a tired clevis joint lives in the pin and the hole it rides in, so replacing the clevis while reusing the old worn pin puts half the slop straight back into the linkage. Replace when the pins or the clevis holes show wear, and check pushrod stroke again after the job.

At FleetPro Parts & Tires, we know brake adjustment starts at the linkage. This Automann clevis kit is a direct replacement for highly searched industry numbers including Gunite AS3000, Haldex CQ36541 and Euclid E15061.

Vehicle Fitment & Compatibility

This clevis kit uses a universal design intended for the following commercial applications:

• Make/Model: Universal - Class 8 tractors, commercial trailers and heavy-duty vehicles
• System: S-cam air brake foundation brakes
• Location: Brake chamber pushrod to slack adjuster
• Thread: 5/8in-18
• Pin Centers: 1.0in
• Component Group: Brake System / Brake Chambers & Accessories

Direct Replacement & Cross-Reference Numbers:

This Automann clevis kit serves as a direct replacement for the following part numbers:

• Gunite Interchange: AS3000
• Haldex Interchange: CQ36541
• Euclid Interchange: E15061
• Automann Distributor #: 179.YK5814

Technical Specifications

• Component Type: Brake Clevis Kit
• Style: Gunite Type, Straight
• Thread: 5/8in-18
• Pin Centers: 1.0in
• Pins Included: 1/2in and 1/4in
• Weight: 0.7 lbs
• Package Dims: 3.25 x 2 x 1.25 in
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
