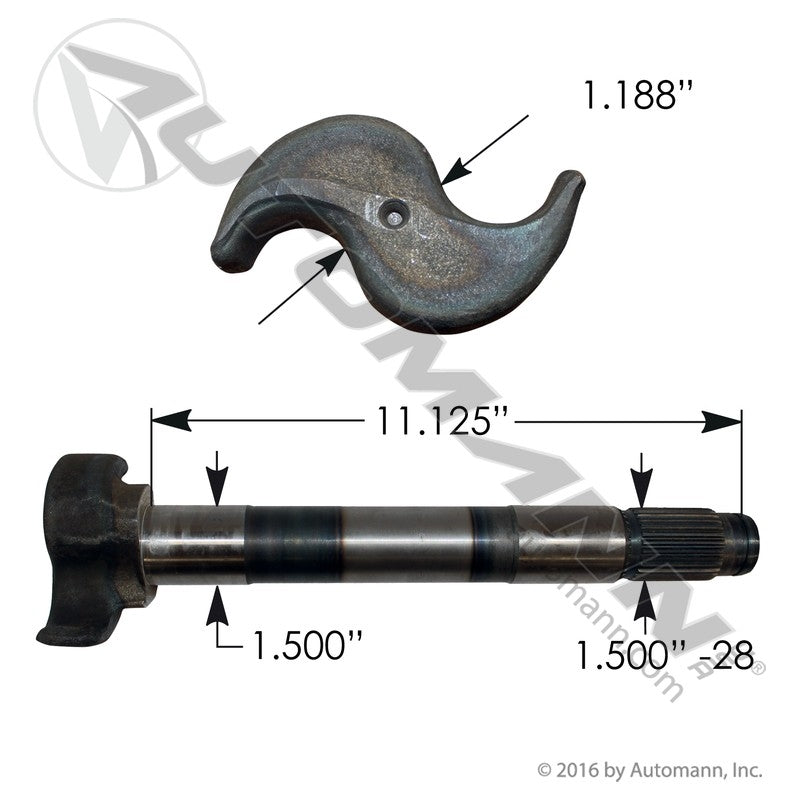

Brake S-Camshaft RH - Meritor Q-Plus Steer Axle 11.20in, 28 Splines - Replaces Meritor 2210H7522 Volvo 85102673 122.281104.04
Brake S-Camshaft RH - Meritor Q-Plus Steer Axle 11.20in, 28 Splines - Replaces Meritor 2210H7522 Volvo 85102673 122.281104.04
Automann

Brake S-Camshaft RH - Meritor Q-Plus Steer Axle 11.20in, 28 Splines - Replaces Meritor 2210H7522 Volvo 85102673 122.281104.04

In stock
SKU: 122.281104.04
$39.42
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Meritor Q-Plus steer axle with 16.5in Q-Plus brakesRight-hand (RH) side, sold per side28 splines, 11.20in longFront axle S-cam foundation brakes
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

6 cross-refs
Meritor 2210H7522 Meritor 2210X7226 Meritor 2210Z7098 Spicer 18-516 Volvo 85102673 Volvo 85111898
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Bring the steer axle brakes back to full effect with this Brake S-Camshaft distributed by FleetPro Parts & Tires. Manufactured by Automann for the Meritor Q-Plus steer axle running 16.5in Q-Plus brakes, this right-hand cam turns slack adjuster motion into brake shoe spread at the wheel end. Steer brakes are the ones a driver feels first: a cam with a worn head or rounded splines pulls the truck under hard braking and stretches stopping distance at exactly the wrong moment. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Straight, Even Steer Braking: The Meritor Q-Plus S-Camshaft Advantage

This right-hand (RH) steer-axle cam measures 11.20in long and carries 28 splines โ€” the short-shaft geometry the Q-Plus front axle uses behind 16.5in Q-Plus brakes. Matching the length and spline count is what keeps the slack adjuster square on the shaft and the shoes spreading evenly, which in turn keeps both front wheels braking at the same rate instead of fighting each other through the steering.

Camshafts are a per-side part, so this covers the RH position only โ€” pair it with the left-hand cam for a complete axle. Replace the cam bushings, seals and hardware in the same visit; a fresh cam in worn bushings develops radial play again quickly, and on the steer axle that play is the version the driver feels through the wheel.

At FleetPro Parts & Tires, we know the steer axle is no place to guess at a part number. This Automann camshaft is a direct replacement for highly searched industry numbers including Meritor 2210H7522, 2210X7226, 2210Z7098, Volvo 85102673, 85111898 and Spicer 18-516.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket S-camshaft is intended for the following commercial application:

  • Make/Model: Meritor Q-Plus steer axle
  • Brake Size: 16.5in Q-Plus brakes
  • Position: Right-hand (RH), sold per side
  • Spline: 28 splines
  • Component Group: Air Brake Foundation / S-Camshafts

Direct Replacement & Cross-Reference Numbers:

This Automann S-camshaft serves as a direct replacement for the following part numbers:

  • Meritor Interchange: 2210H7522, 2210X7226, 2210Z7098
  • Spicer Interchange: 18-516
  • Volvo Interchange: 85102673, 85111898
  • Automann Distributor #: 122.281104.04

Technical Specifications

  • Component Type: Brake S-Camshaft
  • Side: Right (RH)
  • Axle: Meritor Q-Plus steer axle
  • Splines: 28
  • Length: 11.20in
  • Fits: 16.5in Q-Plus brakes
  • Weight: 7.65 lbs
  • Package Dims: 15.5 x 4.23 x 2.66 in
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Q-Plus Steer Axle Specific: 11.20in length and 28 splines match the Meritor Q-Plus front axle behind 16.5in Q-Plus brakes.
  • Balanced Front Braking: An unworn head profile lifts both shoes evenly, so the two steer wheels brake at the same rate instead of pulling.
  • Slack Adjuster Seats Square: Sharp 28 splines let the slack adjuster clamp properly and hold its adjustment through the lining's life.
  • Restores Stopping Distance: Replacing a rounded cam recovers the brake torque a worn one quietly gives away on every stop.
  • True Right-Hand Part: Sold per side as a genuine RH camshaft, so the correct hand goes on the correct wheel end.
Specifications
Component Type
Brake S-Camshaft
Side
Right (RH)
Axle
Meritor Q-Plus steer axle
Splines
28
Length
11.20in
Fits
16.5in Q-Plus brakes
Weight
7.65 lbs
Package Dims
15.5 x 4.23 x 2.66 in
UPC
889626011597
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Meritor Q-Plus steer axle with 16.5in Q-Plus brakes, Right-hand (RH) side, sold per side, 28 splines, 11.20in long, Front axle S-cam foundation brakes. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Meritor 2210H7522, Meritor 2210X7226, Meritor 2210Z7098, Spicer 18-516, Volvo 85102673, Volvo 85111898.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
