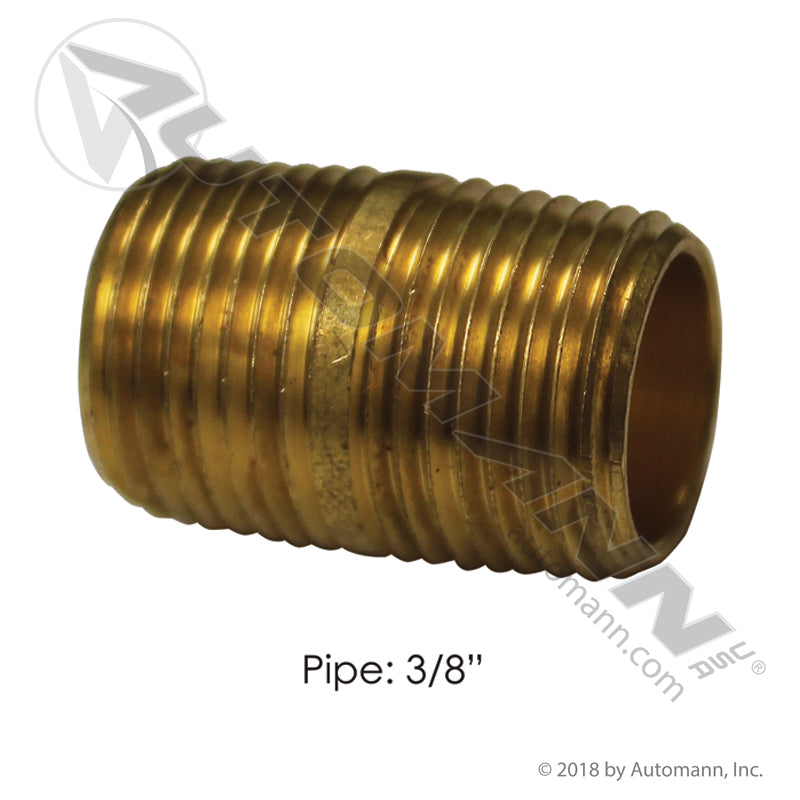

Brass Close Nipple - 3/8" NPT Air Line Fitting - Replaces Eaton 3326X6 Parker 215PN6 177.9112C
Regular price
$0.95
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Universal - Class 8 tractors, trucks and commercial trailersNPT air-brake and air-line connectionsAir-accessory plumbing on tractors and trailers
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
6 cross-refsEaton 3326X6 Parker 215PN6 112C 016053 S2156 177.9022
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Bridge two female air ports the right way with this brass close nipple distributed by FleetPro Parts & Tires. It is shop-grade NPT pipe connection hardware for truck and trailer air-brake and air-accessory plumbing, carrying two 3/8 in male pipe ends on a short, fully threaded body. A weeping, cross-threaded or corroded nipple bleeds a reservoir down overnight, drags governor cut-in pressure down, sets off the low-air warning and can leave a tractor sitting on its spring brakes in the morning. Manufactured by Automann to Fleet Standard specifications, we stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
Leak-Free Air Lines: The Brass Close Nipple Advantage
A close nipple is the short, fully threaded nipple you reach for when two female 3/8 in NPT ports have to meet in a tight space - behind a frame rail, on top of an air tank, or where a valve has to sit hard against a manifold and there is simply no room for a run of pipe. Both ends are tapered pipe thread, so the seal is made by the threads pulling together under sealant tape or pipe dope rather than by a gasket that can blow out. Start the thread by hand, keep the wrench on the flats, and stop when it is snug - overtightening a pipe fitting is what splits a cast valve body and turns a two-dollar repair into a two-hundred-dollar one.
The brass body is the shop standard for air system plumbing. It handles the moisture, road salt and compressor oil that live inside a heavy-duty air system, and it will not gall or seize into a valve body the way a steel fitting can, so the next technician can still get it apart. At FleetPro Parts & Tires, we know an air system is only as good as its weakest joint. This Automann nipple is a direct replacement for highly searched industry numbers including Eaton 3326X6 and Parker 215PN6, it replaces the earlier 177.9022, and it also crosses to reference numbers 112C, 016053 and S2156.
Vehicle Fitment & Compatibility
This universal-application brass fitting is intended for the following commercial use:
- Make/Model: Universal - Class 8 tractors, trucks and commercial trailers
- System: Air brake and air accessory plumbing
- Connection: Two 3/8 in male NPT pipe ends
- Component Group: Air Brake & Wheel / Air System Manifolds & Valves
Direct Replacement & Cross-Reference Numbers:
This Automann brass nipple serves as a direct replacement for the following part numbers:
- Eaton Interchange: 3326X6
- Parker Interchange: 215PN6
- Additional Interchange: 112C, 016053, S2156
- Supersedes: 177.9022
- Automann Distributor #: 177.9112C
Technical Specifications
- Component Type: Brass Close Nipple
- Pipe Ends: Two 3/8 in Male Pipe Ends
- Thread: 3/8 in NPT
- Body Material: Brass
- Application: Universal - air brake systems
- Condition: New
- Warranty: 1-Year FleetPro Warranty
- UPC: 889626446825
- Product Level: Fleet Standard Aftermarket
- Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
- Two 3/8 in Male Pipe Ends: Joins two female 3/8 in NPT ports back to back in the tightest spot on the chassis, with no line in between.
- Short Fully Threaded Body: The shortest way to bridge two female ports where a hose or a length of pipe simply will not fit.
- Solid Brass Construction: Brass shrugs off the moisture, road salt and compressor oil inside a heavy-duty air system and will not gall into a valve body.
- Wide Eaton and Parker Interchange: Crosses directly to Eaton 3326X6 and Parker 215PN6, plus reference numbers 112C, 016053 and S2156.
- Backed by FleetPro: A new Automann Fleet Standard part covered by the 1-Year FleetPro Warranty and shipped from our Illinois warehouse.
Specifications
Component Type
Brass Close Nipple
Pipe Ends
Two 3/8 in Male Pipe Ends
Thread
3/8 in NPT
Body Material
Brass
Application
Universal - air brake systems
Supersedes
177.9022
Condition
New
Warranty
1-Year FleetPro Warranty
UPC
889626446825
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 tractors, trucks and commercial trailers, NPT air-brake and air-line connections, Air-accessory plumbing on tractors and trailers. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Eaton 3326X6, Parker 215PN6, 112C, 016053, S2156, 177.9022.
