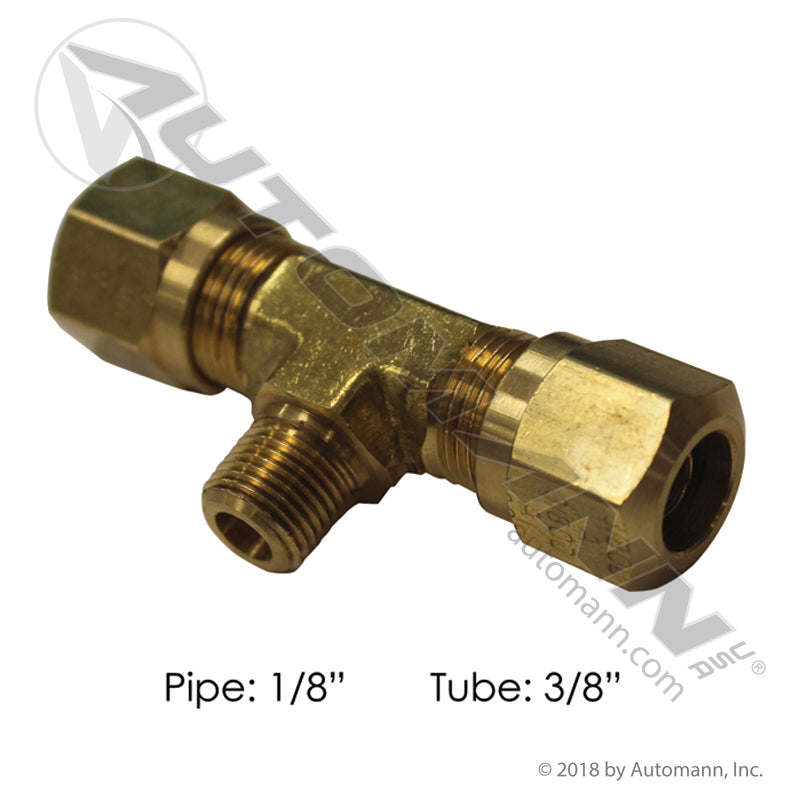

Brass DOT Male Branch Tee - Two 3/8in Tube Ends x 1/8in NPT Male - Eaton 1472X6X6X2 Parker 272NTA62 177.14726A

Pick up a small port off a main air line with this DOT brass male branch tee distributed by FleetPro Parts & Tires. It carries two 3/8in tube ends that connect opposite each other and a 1/8in NPT male branch — the right fitting for tapping a pressure switch, a sender, a gauge line or a small accessory circuit off an existing run without splicing it. A tee that seeps is the classic hard-to-find leak: the compressor never unloads, the low-air buzzer nags at idle, and the truck airs down sitting in the yard. Manufactured by Automann to Fleet Standard specifications, we stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Small Port, Full-Size Run: The 1/8in NPT Branch Tee Advantage

Both run legs take 3/8in DOT nylon air brake tubing and connect opposite each other, so the tee drops straight into an existing line without re-routing the run to make room for it. Keeping the branch at 1/8in NPT means the small port stays small — you thread the switch or sender directly into the tee instead of stacking a reducer bushing under it, and every bushing you delete is one less sealing surface waiting to weep.

The brass body is built for the moisture, oil carryover and road salt inside a heavy-duty air system, and this fitting meets FMVSS 571.106 / DOT requirements for brake circuits, so it is legal in a service or emergency line rather than shop air only. At FleetPro Parts & Tires, we know the fitting count is the leak count. This Automann tee replaces 177.8052 and is a direct replacement for highly searched industry numbers including Eaton 1472X6X6X2, Parker 272NTA62 and Parker VS272NTA62. It ships new with a 1-Year FleetPro Warranty.

Vehicle Fitment & Compatibility

This universal-application DOT brass fitting is intended for the following commercial use:

• Make/Model: Universal - Class 8 tractors and commercial trailers
• System: Air brake plumbing on tractors and trailers
• Tube Ends: Two 3/8in, opposite, for DOT nylon tubing
• Branch: 1/8in NPT male
• Component Group: Air Brake & Wheel / Air System Manifolds & Valves

Direct Replacement & Cross-Reference Numbers:

This Automann brass fitting serves as a direct replacement for the following part numbers:

• Eaton Interchange: 1472X6X6X2
• Parker Interchange: 272NTA62, VS272NTA62
• Automann Supersedes: 177.8052
• Automann Distributor #: 177.14726A

Technical Specifications

• Component Type: DOT Air Brake Male Branch Tee for Nylon Tubing
• Tube Ends: Two 3/8in, opposite
• Pipe End (Branch): 1/8in NPT Male
• Body: Brass
• Replaces: 177.8052
• Compliance: Meets FMVSS 571.106 / DOT requirements for brake circuits
• Weight: 0.2 lbs
• Package Dims: 2.5 x 1.2 x 0.75 in
• Condition: New
• Warranty: 1-Year FleetPro Warranty
• UPC: 889626445637
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
