Brass Male Elbow 90 Degree - 1/4in Copper Tube x 1/4in NPT DOT Air Brake Fitting - Eaton 1369X4X4 177.15694B
Brass Male Elbow 90 Degree - 1/4in Copper Tube x 1/4in NPT DOT Air Brake Fitting - Eaton 1369X4X4 177.15694B
Automann

Brass Male Elbow 90 Degree - 1/4in Copper Tube x 1/4in NPT DOT Air Brake Fitting - Eaton 1369X4X4 177.15694B

In stock
SKU: 177.15694B
$3.47
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 tractors and commercial trailersAir brake plumbing on tractors and trailers1/4in copper tube to a 1/4in NPT male port90 degree elbow, 1/4in copper tube to 1/4in NPT male
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

3 cross-refs
Eaton 1369X4X4 Parker 269AB44 Parker VS269AB44
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

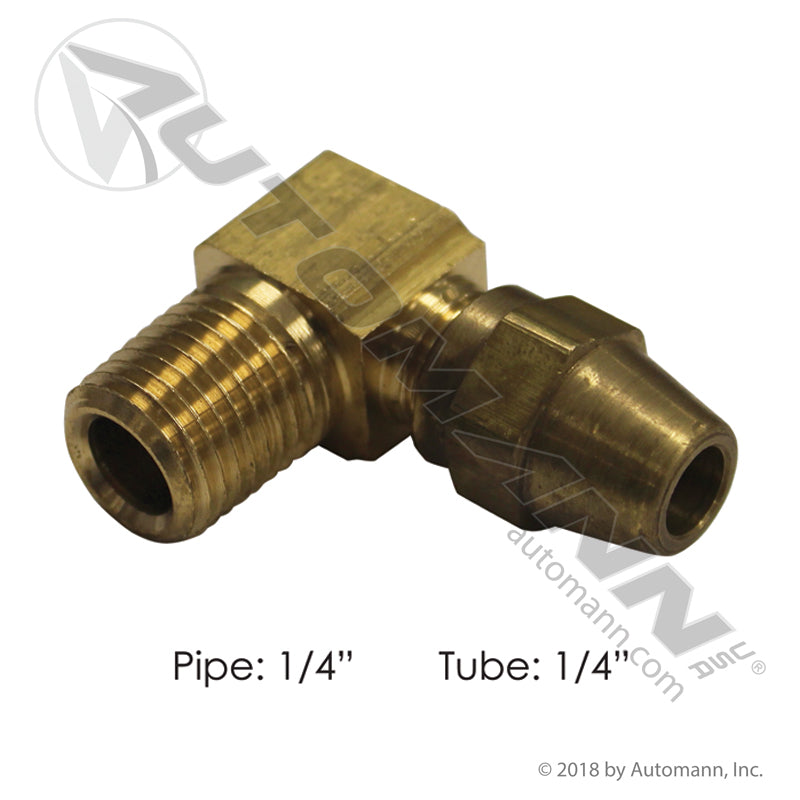

Turn an air line the moment it leaves the port with this 90 degree brass male elbow distributed by FleetPro Parts & Tires. It mates 1/4in copper tubing to a 1/4in NPT male thread, so the tube exits a valve, governor or gauge port turned flat against the component instead of standing straight out where a boot, a bracket or a road-thrown rock will find it. Lines that leave a port unsupported are the ones that work-harden, crack and dump the system. Manufactured by Automann to Fleet Standard specifications, we stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Clears the Tight Spots: The 1/4in x 1/4in NPT Elbow Advantage

This is a compression fitting for copper tubing with a 90 degree body: one 1/4in tube end, one 1/4in NPT male pipe end. Making the turn inside the fitting means the copper does not have to be bent tight to the port, which is exactly where a hand-bent line kinks, collapses or splits later. It also buys back the clearance you need when a valve is buried against a frame rail or a crossmember.

The brass body handles moisture, oil carryover and road salt, and the fitting meets FMVSS 571.106 / DOT requirements for brake circuits. At FleetPro Parts & Tires, we know the right angle saves the line. This Automann elbow replaces 177.9087 and is a direct replacement for highly searched industry numbers including Eaton 1369X4X4, Parker 269AB44 and Parker VS269AB44. It ships new with a 1-Year FleetPro Warranty.

Vehicle Fitment & Compatibility

This universal-application DOT brass fitting is intended for the following commercial use:

  • Make/Model: Universal - Class 8 tractors and commercial trailers
  • System: Air brake plumbing on tractors and trailers
  • Tube End: 1/4in copper tubing
  • Pipe Thread: 1/4in NPT male
  • Angle: 90 degree
  • Component Group: Air Brake & Wheel / Air System Manifolds & Valves

Direct Replacement & Cross-Reference Numbers:

This Automann brass fitting serves as a direct replacement for the following part numbers:

  • Eaton Interchange: 1369X4X4
  • Parker Interchange: 269AB44, VS269AB44
  • Automann Supersedes: 177.9087
  • Automann Distributor #: 177.15694B

Technical Specifications

  • Component Type: DOT Air Brake Male Elbow, Compression Fitting for Copper Tubing
  • Tube End: 1/4in
  • Pipe Thread: 1/4in NPT male
  • Angle: 90 degree
  • Body: Brass
  • Replaces: 177.9087
  • Compliance: Meets FMVSS 571.106 / DOT requirements for brake circuits
  • Weight: 1.05 lbs
  • Package Dims: 7 x 2 x 1.5 in
  • Condition: New
  • Warranty: 1-Year FleetPro Warranty
  • UPC: 889626445965
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • 90 Degree Turn at the Port: The line leaves the valve or gauge flat against the component instead of standing out where it can be snagged.
  • No Tight Hand Bends: Making the turn inside the fitting keeps the copper from kinking, collapsing or splitting where it was bent by hand.
  • Compression Fitting for Copper: Designed for 1/4in copper air brake tubing on a 1/4in NPT male pipe end.
  • Brass Construction: Resists the moisture, oil carryover and road salt that circulate through a heavy-duty air system.
  • FMVSS 571.106 / DOT Brake Circuit Rated: Rated for brake circuits, and backed by a 1-Year FleetPro Warranty.
Specifications
Component Type
DOT Air Brake Male Elbow, Compression Fitting for Copper Tubing
Tube End
1/4in
Pipe Thread
1/4in NPT male
Angle
90 degree
Body
Brass
Application
Universal
Replaces
177.9087
Compliance
Meets FMVSS 571.106 / DOT requirements for brake circuits
Weight
1.05 lbs
Package Dims
7 x 2 x 1.5 in
Condition
New
Warranty
1-Year FleetPro Warranty
UPC
889626445965
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 tractors and commercial trailers, Air brake plumbing on tractors and trailers, 1/4in copper tube to a 1/4in NPT male port, 90 degree elbow, 1/4in copper tube to 1/4in NPT male. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Eaton 1369X4X4, Parker 269AB44, Parker VS269AB44.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
