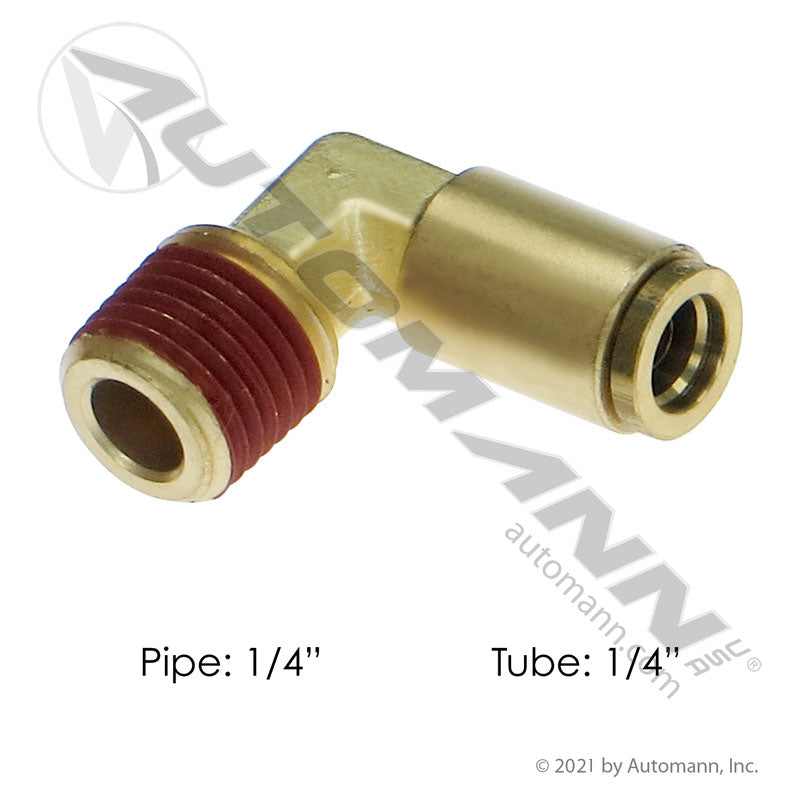

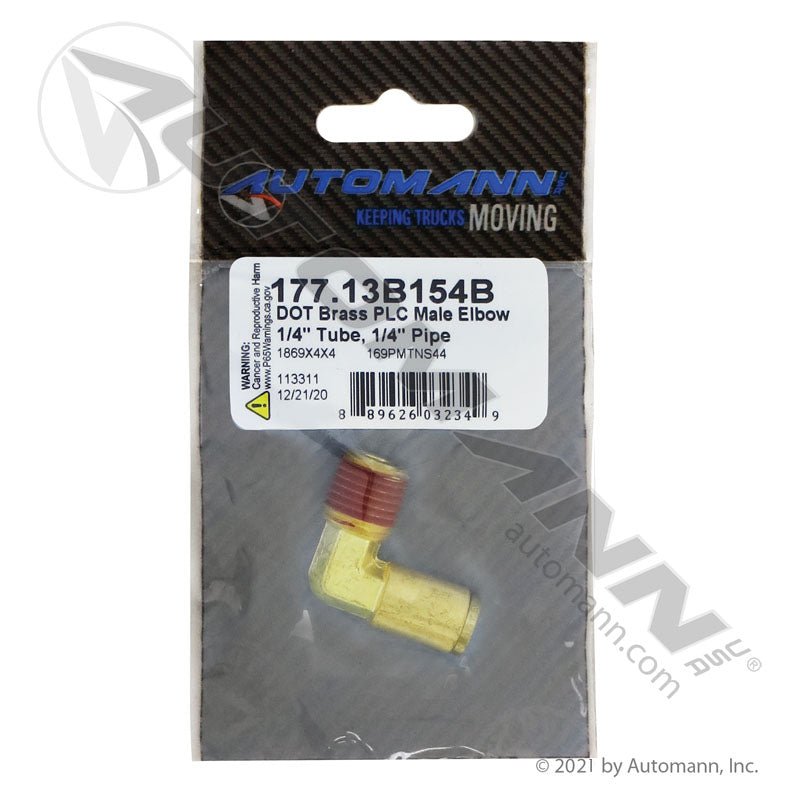

Brass PLC Male Elbow 90 Degree - DOT 1/4in Tube x 1/4in Pipe Air Brake Fitting - Replaces Eaton 1869X4X4 Parker 169PMTNS44 177.13B154B
Brass PLC Male Elbow 90 Degree - DOT 1/4in Tube x 1/4in Pipe Air Brake Fitting - Replaces Eaton 1869X4X4 Parker 169PMTNS44 177.13B154B
Automann

Brass PLC Male Elbow 90 Degree - DOT 1/4in Tube x 1/4in Pipe Air Brake Fitting - Replaces Eaton 1869X4X4 Parker 169PMTNS44 177.13B154B

In stock
SKU: 177.13B154B
$5.32
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 tractors and trailersAir brake plumbing on tractors and trailers1/4in tube end into a 1/4in pipe port
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

4 cross-refs
Eaton 1869X4X4 Parker 169PMTNS44 Tectran PL13154B Velvac 017961
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Take the bend out of the tube and put it in the fitting. This Brass PLC Male Elbow distributed by FleetPro Parts & Tires is a 90 degree push-lock male elbow that connects a 1/4in tube end to a 1/4in pipe end, so an air line can leave a valve or manifold port square and route away cleanly. When a small nylon line is forced to turn right at the port it kinks, and a kinked air line restricts the circuit, works itself into a chafe point against the frame, and eventually turns into the leak you go looking for with a spray bottle on a cold morning. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Brass Where It Counts: The 90 Degree Push-Lock Elbow Advantage

This is a brass fitting, not a plated substitute - it takes a wrench without rounding and it stands up to the road salt, vibration and heat cycling that live under a tractor. The push-lock tube end is what makes the repair quick: cut the 1/4in nylon tube square, push it into the collet until it bottoms, and the fitting grips and seals it with no flare tool, no ferrule and no second trip to the truck for tooling. The 1/4in pipe end threads into the port and the 90 degree body does the routing work the tube should never have to do.

It is DOT-approved for heavy-duty air brake systems and meets FMVSS 571.106. This Automann elbow is a direct replacement for highly searched industry numbers including Eaton 1869X4X4, Parker 169PMTNS44, Tectran PL13154B and Velvac 017961.

Vehicle Fitment & Compatibility

This universal DOT air-brake fitting is intended for the following commercial applications:

  • Make/Model: Universal - Class 8 tractors and trailers
  • System: Air brake plumbing on tractors and trailers
  • Connections: 1/4in tube end x 1/4in pipe end, 90 degree
  • Component Group: Air Brake & Wheel / Air System Fittings

Direct Replacement & Cross-Reference Numbers:

This Automann air brake fitting serves as a direct replacement for the following part numbers:

  • Eaton Interchange: 1869X4X4
  • Parker Interchange: 169PMTNS44
  • Tectran Interchange: PL13154B
  • Velvac Interchange: 017961
  • Automann Distributor #: 177.13B154B

Technical Specifications

  • Component Type: 90 degree push-lock male elbow, brass
  • Angle: 90 degree
  • Tube End: 1/4in
  • Pipe End: 1/4in
  • Body: Brass
  • Application: Universal
  • Compliance: FMVSS 571.106
  • UPC: 889626032349
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • 90 Degree Routing: The bend lives in the fitting instead of the tube, so a 1/4in nylon line is never kinked at the port.
  • Solid Brass Body: Brass takes a wrench without rounding and stands up to the salt, vibration and heat cycling under a tractor.
  • Push-Lock Tube End: Square-cut the tube, push it home and the collet grips and seals it - no flare tool and no ferrule.
  • FMVSS 571.106 Compliant: DOT-approved for heavy-duty air brake systems, so it belongs on the brake circuit.
  • Four-Brand Interchange: Crosses to Eaton 1869X4X4, Parker 169PMTNS44, Tectran PL13154B and Velvac 017961.
Specifications
Component Type
90 degree push-lock male elbow, brass
Angle
90 degree
Tube End
1/4in
Pipe End
1/4in
Body
Brass
Application
Universal
Compliance
FMVSS 571.106
UPC
889626032349
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 tractors and trailers, Air brake plumbing on tractors and trailers, 1/4in tube end into a 1/4in pipe port. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Eaton 1869X4X4, Parker 169PMTNS44, Tectran PL13154B, Velvac 017961.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
