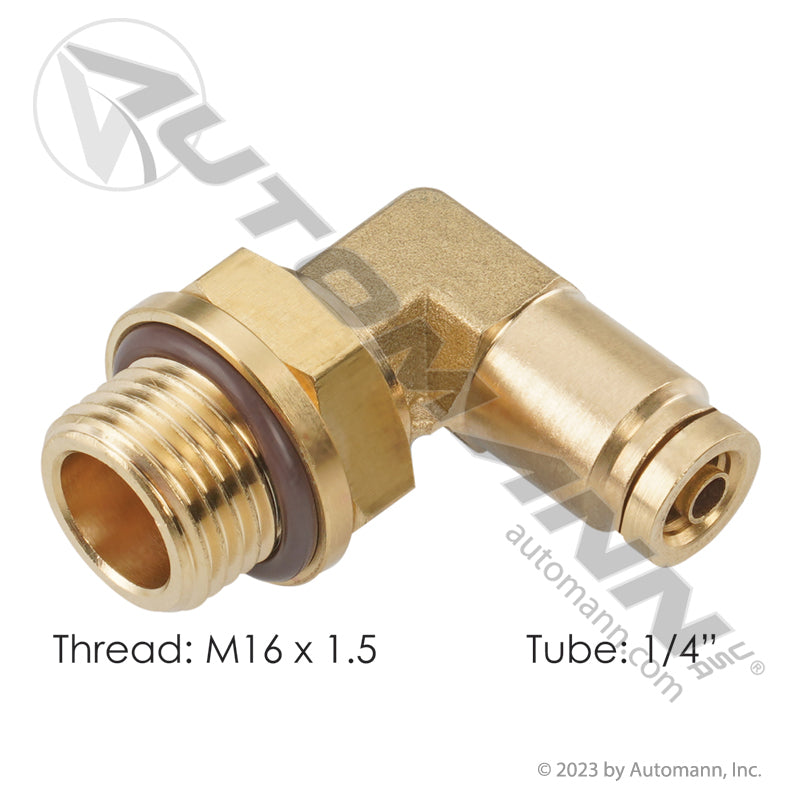

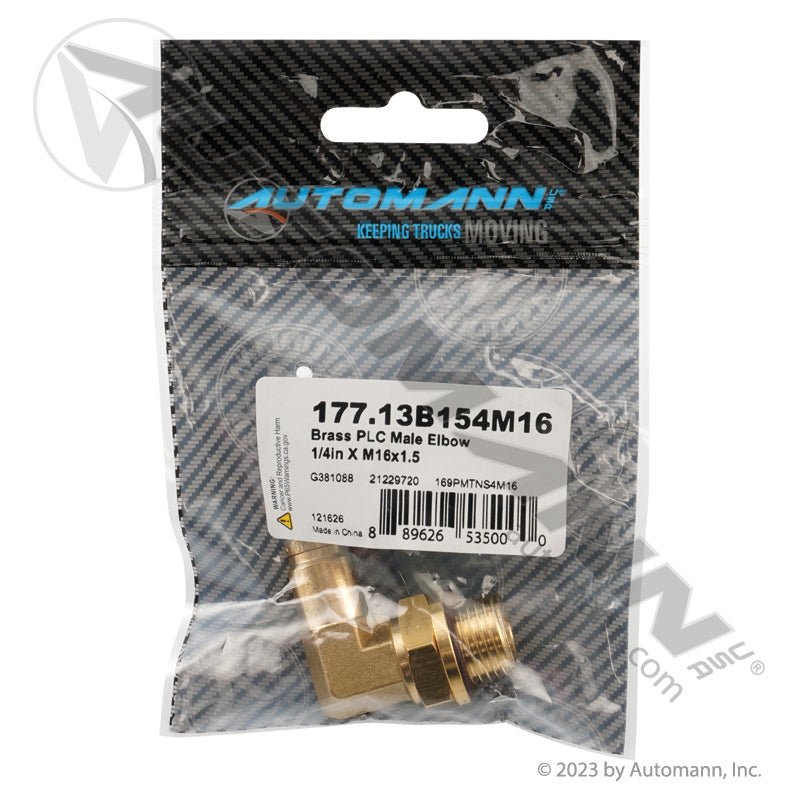

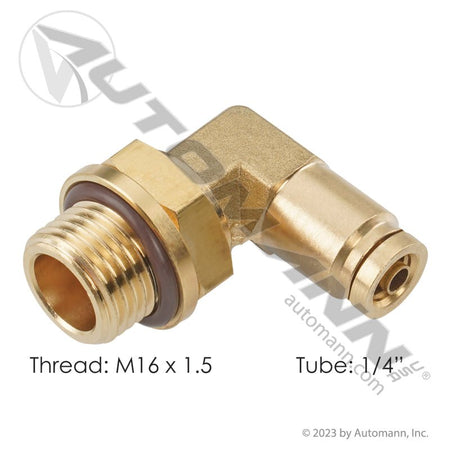

Brass PLC Male Elbow 90 Degree - DOT 1/4in Tube x M16x1.5 Air Brake Fitting - Mack 63AM165 Paccar G38-1088 177.13B154M16
Brass PLC Male Elbow 90 Degree - DOT 1/4in Tube x M16x1.5 Air Brake Fitting - Mack 63AM165 Paccar G38-1088 177.13B154M16
Automann

Brass PLC Male Elbow 90 Degree - DOT 1/4in Tube x M16x1.5 Air Brake Fitting - Mack 63AM165 Paccar G38-1088 177.13B154M16

In stock
SKU: 177.13B154M16
$16.50
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 tractors and trailersAir brake plumbing on tractors and trailersM16x1.5 metric ports on 1/4in air line
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

6 cross-refs
Mack 63AM165 Parker 169PMTNS-4-M16 Parker 169PMTNS4M16 Paccar G38-1088 Paccar G381088 Volvo 21229720
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Metric ports on a modern tractor do not care what is in the brass drawer. This Brass PLC Male Elbow distributed by FleetPro Parts & Tires is the correct answer: a 90 degree push-lock male elbow joining a 1/4in PLC tube end to an M16x1.5 male thread, so the air line mates the port directly instead of riding on a stack of adapters. Every adapter you add is another sealing surface that can weep, another joint an inspector can find, and another place for vibration to work a connection loose over a few thousand miles. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

One Fitting, No Adapters: The M16x1.5 Elbow Advantage

The M16x1.5 male end goes straight into the metric port that Mack, Volvo and Paccar chassis plumbing uses, and the 90 degree body turns the line off the port so a small nylon tube is never bent into a kink right where it exits. Assembly on the tube side is push-lock: cut the 1/4in air-brake tubing square, push it into the collet until it bottoms, and the fitting grips and seals it - no flare tool, no ferrule. The body is brass, so it takes a wrench without rounding and lives with road salt, vibration and heat cycling the way an air-brake fitting has to.

It is DOT-approved for heavy-duty air brake systems and meets FMVSS 571.106. This Automann elbow is a direct replacement for highly searched industry numbers including Mack 63AM165, Parker 169PMTNS-4-M16, Paccar G38-1088 and Volvo 21229720.

Vehicle Fitment & Compatibility

This universal DOT air-brake fitting is intended for the following commercial applications:

  • Make/Model: Universal - Class 8 tractors and trailers
  • System: Air brake plumbing on tractors and trailers
  • Connections: 1/4in PLC tube end x M16x1.5 male thread, 90 degree
  • Component Group: Air Brake & Wheel / Air System Fittings

Direct Replacement & Cross-Reference Numbers:

This Automann air brake fitting serves as a direct replacement for the following part numbers:

  • Mack Interchange: 63AM165
  • Parker Interchange: 169PMTNS-4-M16, 169PMTNS4M16
  • Paccar Interchange: G38-1088, G381088
  • Volvo Interchange: 21229720
  • Automann Distributor #: 177.13B154M16

Technical Specifications

  • Component Type: 90 degree push-lock male elbow, brass
  • Angle: 90 degree
  • Tube End: 1/4in PLC
  • Thread: M16x1.5 male
  • Body: Brass
  • Application: Universal
  • Compliance: FMVSS 571.106
  • UPC: 889626535000
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Direct Metric Fit: An M16x1.5 male thread mates the port directly, so you are not stacking adapters and extra leak paths onto a brake circuit.
  • 90 Degree Routing: The elbow turns the line off the port so 1/4in nylon tubing is never kinked where it exits.
  • Push-Lock Tube End: Square-cut the air-brake tubing, push it home and the collet grips and seals it with no flare tool required.
  • Solid Brass Body: Takes a wrench without rounding and stands up to road salt, vibration and heat cycling.
  • Mack, Paccar And Volvo Interchange: Crosses to Mack 63AM165, Parker 169PMTNS-4-M16, Paccar G38-1088 and Volvo 21229720.
Specifications
Component Type
90 degree push-lock male elbow, brass
Angle
90 degree
Tube End
1/4in PLC
Thread
M16x1.5 male
Body
Brass
Application
Universal
Compliance
FMVSS 571.106
UPC
889626535000
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 tractors and trailers, Air brake plumbing on tractors and trailers, M16x1.5 metric ports on 1/4in air line. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Mack 63AM165, Parker 169PMTNS-4-M16, Parker 169PMTNS4M16, Paccar G38-1088, Paccar G381088, Volvo 21229720.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
