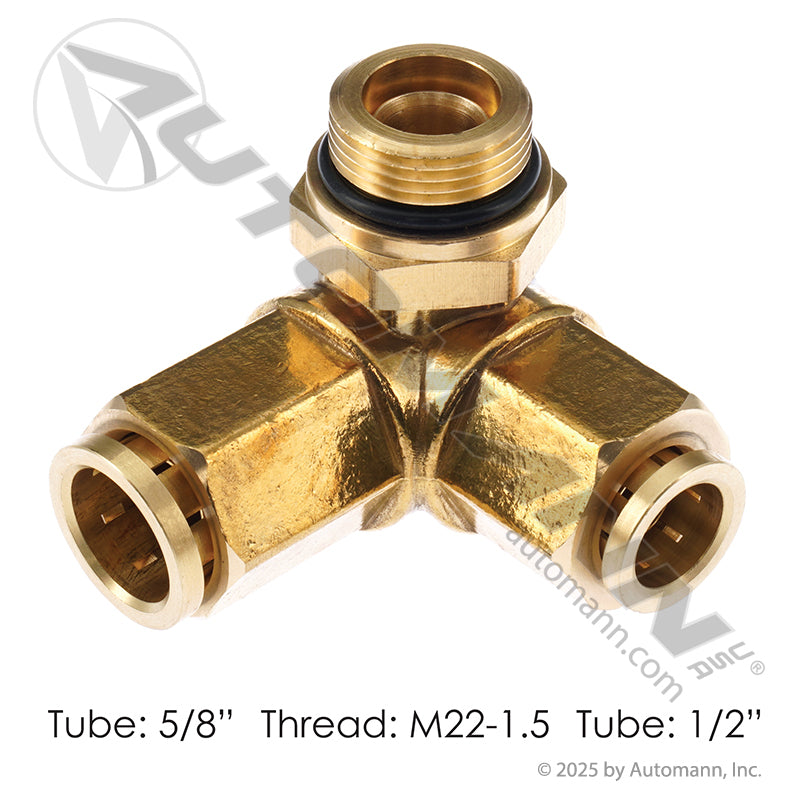

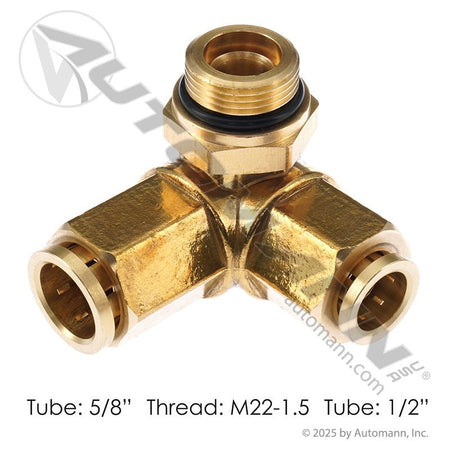

Brass Push-Lock 3-Way Air Adapter - M22 x 1.5 Thread x 1/2in x 5/8in PLC - IHC 3819960C1 177.13B79108M22
Brass Push-Lock 3-Way Air Adapter - M22 x 1.5 Thread x 1/2in x 5/8in PLC - IHC 3819960C1 177.13B79108M22
Automann

Brass Push-Lock 3-Way Air Adapter - M22 x 1.5 Thread x 1/2in x 5/8in PLC - IHC 3819960C1 177.13B79108M22

In stock
SKU: 177.13B79108M22
$32.14
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

International - air brake plumbingAir brake plumbing on tractors and trailersM22 x 1.5 metric port feeding 1/2in and 5/8in air lines
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

1 cross-ref
IHC 3819960C1
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Feed two large air lines from one metric port with this DOT brass push-lock 3-way adapter distributed by FleetPro Parts & Tires. It threads into an M22 x 1.5 port and provides a 1/2in PLC tube end alongside a 5/8in PLC tube end, giving an International air brake circuit its supply and its branch from a single fitting instead of a stack of bushings and tees. Every joint in a stacked adapter is one more surface that can weep, and those are the leaks that keep a compressor loaded, trip the low-air buzzer and air a truck down overnight. Manufactured by Automann to Fleet Standard specifications, we stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Big-Line Capacity: The M22 3-Way Adapter Advantage

Both outlets are push-lock (PLC), which matters most on heavy 1/2in and 5/8in DOT nylon tubing โ€” stiff line that is genuinely difficult to assemble with compression nuts in a tight chassis, but that seats with a straight push here and locks. Sharing one sealed M22 x 1.5 thread between both outlets keeps the port count down and the flow path short.

The brass body handles the moisture, oil carryover and road salt that live in a heavy-duty air system, and this adapter is DOT-approved for heavy-duty air brake systems and meets FMVSS 571.106, so it belongs in a service or emergency circuit rather than only on shop air. At FleetPro Parts & Tires, we know the right adapter ends the leak chase. This Automann adapter replaces 177.55960 and is a direct replacement for the highly searched industry number IHC 3819960C1.

Vehicle Fitment & Compatibility

This DOT brass adapter is intended for the following commercial application:

  • Make/Model: International
  • System: Air brake plumbing on tractors and trailers
  • Thread: M22 x 1.5 metric port
  • Tube Ends: 1/2in PLC and 5/8in PLC
  • Component Group: Air Brake & Wheel / Air System Manifolds & Valves

Direct Replacement & Cross-Reference Numbers:

This Automann brass adapter serves as a direct replacement for the following part numbers:

  • IHC Interchange: 3819960C1
  • Automann Supersedes: 177.55960
  • Automann Distributor #: 177.13B79108M22

Technical Specifications

  • Component Type: 3-Way Metric Thread Adapter, Push-Lock (PLC)
  • Thread: M22 x 1.5
  • Tube Ends: 1/2in PLC and 5/8in PLC
  • Body Material: Brass
  • Application: International
  • Replaces: 177.55960
  • Compliance: DOT-approved for heavy-duty air brake systems, meets FMVSS 571.106
  • UPC: 889626764127
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Two Large Outlets, One Port: A 1/2in and a 5/8in push-lock tube end share a single M22 x 1.5 thread instead of a bushing-and-tee stack.
  • Easy on Stiff Heavy Line: 1/2in and 5/8in DOT nylon tubing is awkward to assemble with compression nuts, but seats here with a straight push.
  • Fewer Joints to Weep: Consolidating an adapter stack into one body removes the sealing surfaces that keep a compressor loaded and a truck airing down.
  • Correct M22 x 1.5 Metric Thread: Matches the International metric port, so nothing is forced or cross-threaded on installation.
  • DOT / FMVSS 571.106 Compliant: Brass construction approved for heavy-duty air brake systems, legal in service and emergency circuits.
Specifications
Component Type
3-Way Metric Thread Adapter, Push-Lock (PLC)
Thread
M22 x 1.5
Tube Ends
1/2in PLC and 5/8in PLC
Body Material
Brass
Application
International
Replaces
177.55960
Compliance
DOT-approved for heavy-duty air brake systems, meets FMVSS 571.106
UPC
889626764127
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits International - air brake plumbing, Air brake plumbing on tractors and trailers, M22 x 1.5 metric port feeding 1/2in and 5/8in air lines. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with IHC 3819960C1.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
