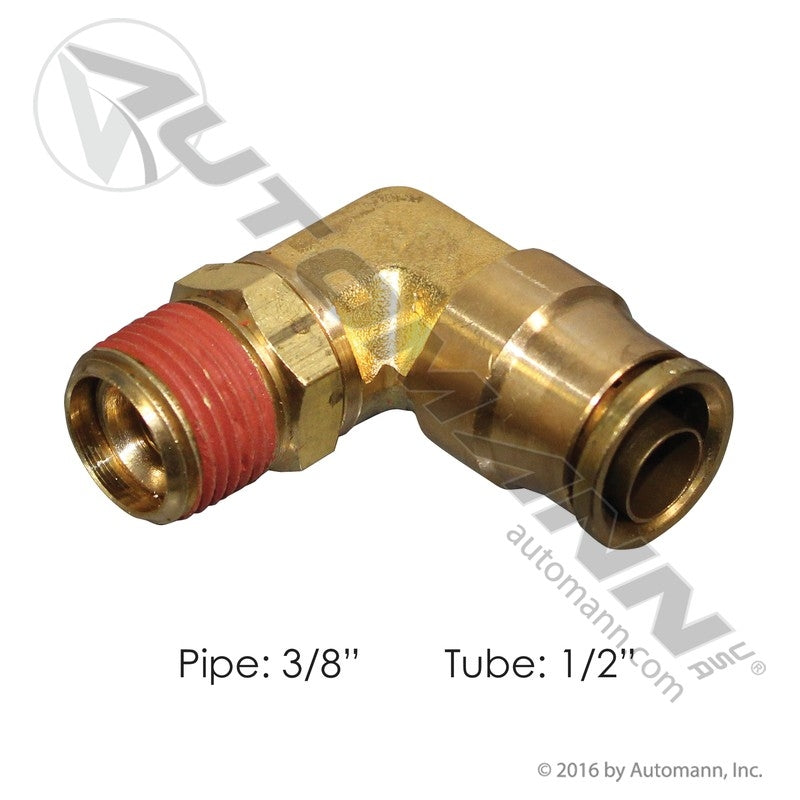

Brass Push-Lock 90-Degree Male Elbow - 1/2in Tube x 3/8in Swivel Pipe - Eaton 1869X8S Parker 169PMT86 177.13B698C
Regular price
$11.31
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Universal - Class 8 tractors and commercial trailersAir brake plumbing on tractors and trailersDOT nylon air brake tubing - 1/2in tube into a 3/8in pipe port
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
4 cross-refsEaton 1869X8S Parker 169PMT86 Tectran PL13698C Velvac 017958
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Keep your air brake plumbing tight with this DOT brass push-lock 90-degree swivel male elbow distributed by FleetPro Parts & Tires. It joins a 1/2in tube end to a 3/8in swivel pipe end, so an air line can turn a hard corner without kinking the nylon tubing. A weeping or stripped air fitting bleeds the system down overnight, drags governor cut-in pressure down, sets off low-air warnings and can leave a tractor sitting with the parking brakes locked. Manufactured by Automann to Fleet Standard specifications, we stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
Leak-Free Air Lines: The Push-Lock Swivel Elbow Advantage
The push-lock (PLC) design means no wrench work on the tube side at all โ the nylon air line pushes straight into the collet and locks, so a roadside line repair takes seconds instead of a socket set and a fistful of ferrules. The swivel pipe end lets you torque the fitting into its port first and then aim the tube leg wherever the run needs to go, which is what stops the twisted, pre-stressed tubing that turns into a chafe leak behind the frame rail six months later.
The brass body stands up to the moisture, road salt and compressor oil that live inside a heavy-duty air system, and it will not gall or seize into a valve body the way a steel fitting can. Because it is DOT-approved for heavy-duty air brake systems and meets FMVSS 571.106, it is legal in an actual brake circuit โ not a shop-grade air hose fitting pressed into service. At FleetPro Parts & Tires, we know a brake job is only as good as its weakest connection. This Automann elbow is a direct replacement for highly searched industry numbers including Eaton 1869X8S, Parker 169PMT86, Tectran PL13698C and Velvac 017958.
Vehicle Fitment & Compatibility
This universal-application DOT brass fitting is intended for the following commercial use:
- Make/Model: Universal - Class 8 tractors and commercial trailers
- System: Air brake plumbing on tractors and trailers
- Tube End: 1/2in push-lock, for DOT nylon air brake tubing
- Pipe End: 3/8in male swivel
- Component Group: Air Brake & Wheel / Air System Manifolds & Valves
Direct Replacement & Cross-Reference Numbers:
This Automann brass fitting serves as a direct replacement for the following part numbers:
- Eaton Interchange: 1869X8S
- Parker Interchange: 169PMT86
- Tectran Interchange: PL13698C
- Velvac Interchange: 017958
- Automann Distributor #: 177.13B698C
Technical Specifications
- Component Type: Push-Lock (PLC) 90-Degree Swivel Male Elbow
- Tube End: 1/2in
- Pipe End: 3/8in Swivel
- Body Material: Brass
- Application: Universal
- Compliance: DOT-approved for heavy-duty air brake systems, meets FMVSS 571.106
- UPC: 889626032462
- Product Level: Fleet Standard Aftermarket
- Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
- Push-Lock Tube End: The nylon air line pushes straight into the collet and locks, so a line repair takes seconds with no wrench work on the tube side.
- Swivel Pipe End: Torque the fitting into the port first, then aim the tube leg where the run needs it instead of twisting the tubing to meet a fixed elbow.
- 90-Degree Turn Without a Kink: Routes a 1/2in air line around a tight corner while keeping the tubing straight and unstressed at the connection.
- Solid Brass Body: Brass shrugs off the moisture, road salt and compressor oil inside a heavy-duty air system and will not gall into the valve body.
- DOT / FMVSS 571.106 Compliant: Approved for heavy-duty air brake systems, so the repair passes inspection instead of failing it.
Specifications
Component Type
Push-Lock (PLC) 90-Degree Swivel Male Elbow
Tube End
1/2in
Pipe End
3/8in swivel
Body Material
Brass
Application
Universal
Compliance
DOT-approved for heavy-duty air brake systems, meets FMVSS 571.106
UPC
889626032462
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 tractors and commercial trailers, Air brake plumbing on tractors and trailers, DOT nylon air brake tubing - 1/2in tube into a 3/8in pipe port. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Eaton 1869X8S, Parker 169PMT86, Tectran PL13698C, Velvac 017958.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
