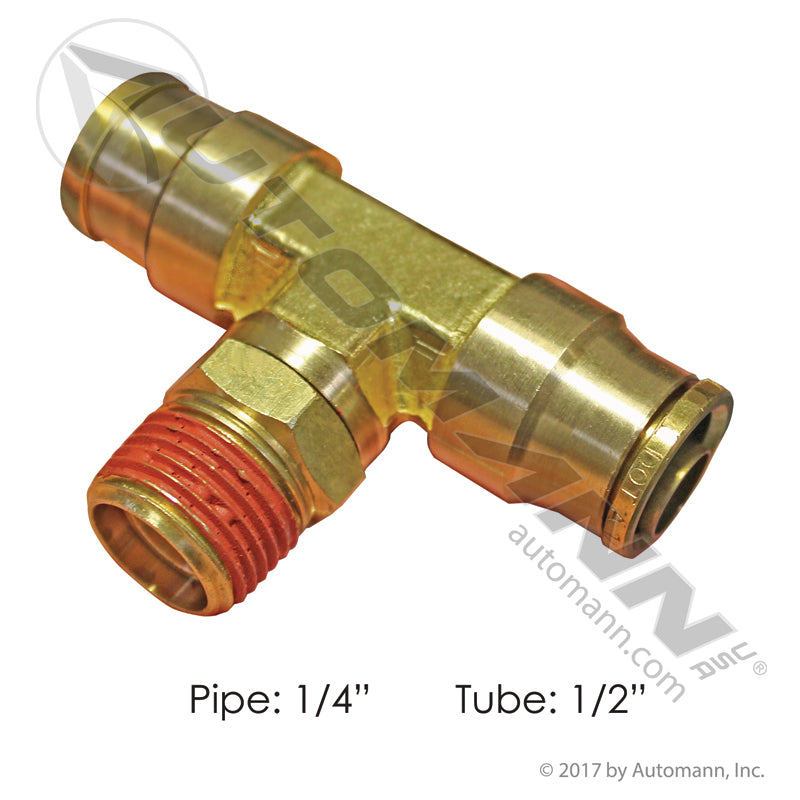

Brass Push-Lock Male Branch Tee - Two 1/2in Tube Ends x 1/4in NPT Male Swivel Air Brake Fitting 177.13B728B
Brass Push-Lock Male Branch Tee - Two 1/2in Tube Ends x 1/4in NPT Male Swivel Air Brake Fitting 177.13B728B
Automann

Brass Push-Lock Male Branch Tee - Two 1/2in Tube Ends x 1/4in NPT Male Swivel Air Brake Fitting 177.13B728B

In stock
SKU: 177.13B728B
$15.55
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 tractors and commercial trailersAir brake plumbing on tractors and trailersBranches a 1/2in air line to a 1/4in NPT valve or gauge port
Always confirm your year, make & model before ordering.
Overview

Take a branch off a large air line without cutting the run using this DOT brass push-to-connect male branch tee distributed by FleetPro Parts & Tires. It carries two 1/2in tube ends that connect opposite each other and a 1/4in NPT male swivel branch, so a 1/2in supply can feed a valve, gauge or accessory port while the main run stays intact. A tee that seeps is one of the hardest leaks on a truck to find and one of the easiest to fix โ€” it quietly runs the compressor to death, trips the low-air warning at idle, and airs the truck down overnight. Manufactured by Automann to Fleet Standard specifications, we stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Big-Line Branching: The 1/2in Push-To-Connect Tee Advantage

Both run legs are push-to-connect (PLC), so 1/2in DOT nylon air brake tubing seats with a straight push and locks โ€” a real advantage on heavy 1/2in line, which is stiff, awkward to hold and miserable to assemble with compression nuts under a chassis. The brass body and collet mean the gripping hardware is brass too, not plastic, so the joint keeps its bite through heat cycles, vibration and winter road salt.

The 1/4in NPT male swivel branch threads into its port at full torque and then rotates, letting you square the two 1/2in tube legs to the run instead of twisting stiff tubing to meet a fixed tee. This fitting meets FMVSS 571.106 / DOT requirements for brake circuits, so it is legal in a service or emergency line rather than shop air only. At FleetPro Parts & Tires, we know most air system chases end at a fitting. Order it by the Automann distributor number, 177.13B728B, and it ships new with a 1-Year FleetPro Warranty.

Vehicle Fitment & Compatibility

This universal-application DOT brass fitting is intended for the following commercial use:

  • Make/Model: Universal - Class 8 tractors and commercial trailers
  • System: Air brake plumbing on tractors and trailers
  • Tube Ends: Two 1/2in push-to-connect, opposite
  • Branch: 1/4in NPT male swivel
  • Component Group: Air Brake & Wheel / Air System Manifolds & Valves

Direct Replacement & Cross-Reference Numbers:

Order and reference this fitting by its distributor number:

  • Automann Distributor #: 177.13B728B

Technical Specifications

  • Component Type: Push-To-Connect (PLC) Male Branch Tee, DOT Air Brake
  • Tube Ends: Two 1/2in, opposite
  • Pipe End (Branch): 1/4in NPT Male Swivel
  • Body: Brass Body and Collet
  • Compliance: Meets FMVSS 571.106 / DOT requirements for brake circuits
  • Weight: 0.2 lbs
  • Package Dims: 2.75 x 1.75 x 0.75 in
  • Condition: New
  • Warranty: 1-Year FleetPro Warranty
  • UPC: 889626353871
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Branches Without Cutting the Run: Two opposite 1/2in tube ends keep the main supply line intact while the 1/4in NPT branch feeds a valve or gauge.
  • Push-To-Connect on Heavy 1/2in Line: Stiff 1/2in DOT nylon tubing seats with a straight push instead of a compression nut fought under the chassis.
  • Brass Body and Collet: The gripping collet is brass, not plastic, so the joint keeps its bite through heat cycles, vibration and road salt.
  • Swivel NPT Branch: Thread the 1/4in NPT end to full torque, then rotate the body to square both tube legs with the run.
  • FMVSS 571.106 / DOT Brake Circuit Rated: Legal in service and emergency air lines, and backed by a 1-Year FleetPro Warranty.
Specifications
Component Type
Push-To-Connect (PLC) Male Branch Tee, DOT Air Brake
Tube Ends
Two 1/2in, opposite
Pipe End (Branch)
1/4in NPT male swivel
Body
Brass body and collet
Application
Universal
Compliance
Meets FMVSS 571.106 / DOT requirements for brake circuits
Weight
0.2 lbs
Package Dims
2.75 x 1.75 x 0.75 in
Condition
New
Warranty
1-Year FleetPro Warranty
UPC
889626353871
Product Level
Fleet Standard Aftermarket
