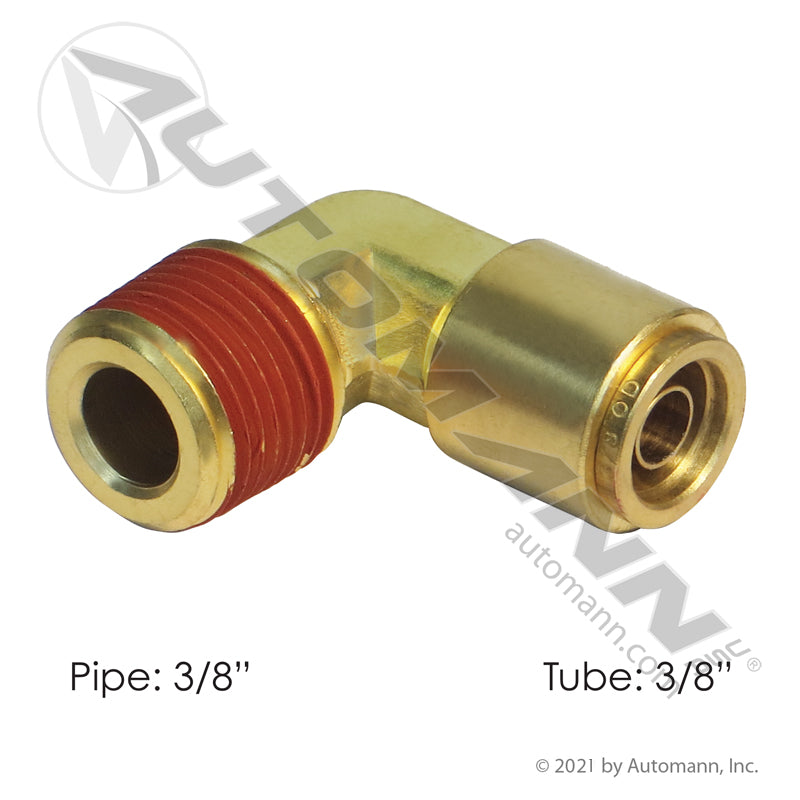

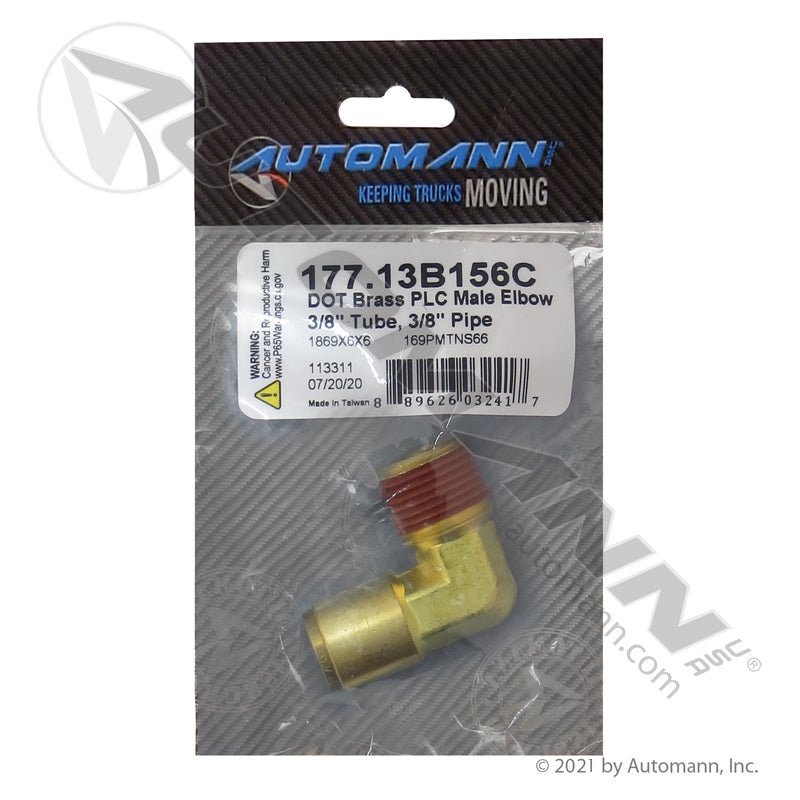

Brass Push-Lock Male Elbow - 3/8" Tube x 3/8" Pipe 90 Degree DOT Air Brake Fitting - Replaces Eaton 1869X6X6 Parker 169PMTNS66 177.13B156C
Regular price
$6.32
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Universal - heavy-duty tractors and commercial trailersAir brake plumbing on tractors and trailers3/8 in tube line into a 3/8 in male pipe portDOT-approved heavy-duty air brake systems, FMVSS 571.106
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
4 cross-refsEaton 1869X6X6 Parker 169PMTNS66 Tectran PL13156C Velvac 017963
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Turn a 3/8 in air line hard around an obstruction without kinking it, using this DOT brass push-lock male elbow distributed by FleetPro Parts & Tires. Both sides are sized 3/8 in โ a 3/8 in tube end feeding a 3/8 in male pipe end โ so you keep full line volume through the corner instead of choking the circuit down at the fitting. Weeping elbows are the classic cause of a truck that will not build air in the morning and of a compressor that never gets to rest. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
Full-Flow Corners: The 3/8 in Push-Lock Elbow Advantage
Manufactured by Automann to Fleet Standard specifications, this 90 degree brass elbow is DOT-approved for heavy-duty air brake systems and meets FMVSS 571.106. The push-lock tube end takes standard DOT nylon air brake tubing with no ferrules, no sleeves and no flare tool โ square the cut, push, and the collet locks and seals. Brass throughout means the fitting is not the part that fails when the chassis is buried in winter salt brine.
Because the pipe end matches the tube end at 3/8 in, this elbow is the natural choice at supply tees, protection valves and tractor-to-trailer plumbing where stepping the line down would starve the circuit. It is a universal-application fitting, so one part number covers tractors, straight trucks and trailers across the yard.
At FleetPro Parts & Tires, we know a leaking corner costs more in downtime than the fitting will ever cost in parts. This Automann elbow is a direct replacement for highly searched industry numbers including Eaton 1869X6X6, Parker 169PMTNS66, Tectran PL13156C and Velvac 017963.
Vehicle Fitment & Compatibility
This DOT brass air fitting uses a universal design intended for the following commercial applications:
- Make/Model: Universal - heavy-duty tractors and commercial trailers
- System: Air brake plumbing, DOT-approved for heavy-duty air brake systems
- Connection: 3/8 in push-lock tube end to 3/8 in male pipe end, 90 degree
- Compliance: Meets FMVSS 571.106
Direct Replacement & Cross-Reference Numbers:
This Automann brass fitting serves as a direct replacement for the following part numbers:
- Eaton Interchange: 1869X6X6
- Parker Interchange: 169PMTNS66
- Tectran Interchange: PL13156C
- Velvac Interchange: 017963
- Automann Distributor #: 177.13B156C
Technical Specifications
- Component Type: 90 degree Push-Lock (PLC) Male Elbow, Brass
- Tube End: 3/8 in
- Pipe End: 3/8 in male
- Angle: 90 degree
- Material: Brass
- Application: Universal
- Compliance: FMVSS 571.106, DOT-approved for heavy-duty air brake systems
- Product Level: Fleet Standard Aftermarket
- Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
- Full 3/8 in Through Both Ends: Tube end and pipe end are both 3/8 in, so the corner does not choke the circuit down the way a reducing elbow does.
- No Special Tools Needed: The push-lock end accepts standard DOT nylon air brake tubing with no ferrule, sleeve or flare tool required.
- Solid Brass Construction: A brass body survives the winter salt brine, moisture and vibration that live on an exposed chassis air line.
- DOT Approved for Air Brakes: Meets FMVSS 571.106 and is DOT-approved for heavy-duty air brake systems, keeping the repair inspection-ready.
- Broad Interchange Coverage: One part number covers Eaton 1869X6X6, Parker 169PMTNS66, Tectran PL13156C and Velvac 017963.
Specifications
Component Type
90 degree Push-Lock (PLC) Male Elbow, Brass
Tube End
3/8 in
Pipe End
3/8 in male
Angle
90 degree
Material
Brass
Application
Universal
Compliance
FMVSS 571.106, DOT-approved for heavy-duty air brake systems
UPC
889626032417
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - heavy-duty tractors and commercial trailers, Air brake plumbing on tractors and trailers, 3/8 in tube line into a 3/8 in male pipe port, DOT-approved heavy-duty air brake systems, FMVSS 571.106. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Eaton 1869X6X6, Parker 169PMTNS66, Tectran PL13156C, Velvac 017963.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
