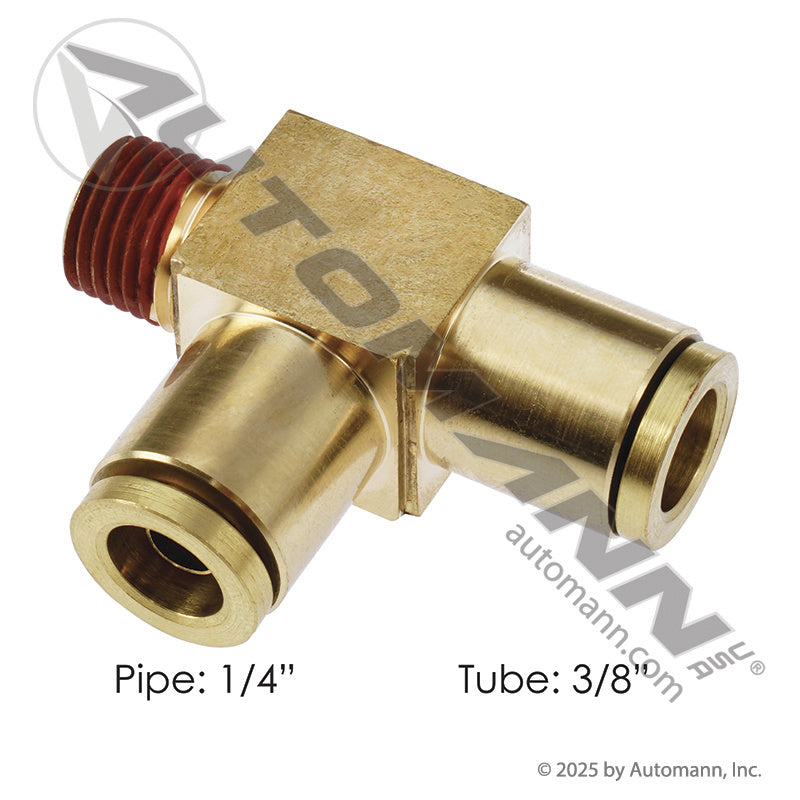

Brass Push-Lock Male Run Tee - Two 3/8in Tube Ends x 1/4in Rigid Pipe - Parker 171PMTNS-6-4 Gates G31130-0406 177.13B756B
Regular price
$9.46
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Universal - Class 8 tractors and commercial trailersAir brake plumbing on tractors and trailersTurns a 3/8in air line 90 degrees while feeding a 1/4in branch
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
10 cross-refsFairview PC1471-6B Fairview PC14716B Gates G31130-0406 Gates G311300406 Haldex APB71F6X4 Parker 171PMTNS-6-4 Parker 171PMTNS64 Sloan S271PMTNS-6-4 Velvac 017901 1871X6
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Turn a corner and take a branch in one fitting with this DOT brass push-lock male run tee distributed by FleetPro Parts & Tires. It carries two 3/8in tube ends that connect perpendicular to each other plus a 1/4in rigid pipe end, so an air line can change direction at a valve or bracket instead of being bent past its radius. Kinked nylon tubing and a seeping tee are the two most common reasons a truck loses air overnight, runs the compressor constantly, and sets a low-air warning at idle. Manufactured by Automann to Fleet Standard specifications, we stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
Corner and Branch in One: The Push-Lock Run Tee Advantage
Unlike a branch tee, whose tube legs sit opposite each other, this run tee puts its two 3/8in legs at right angles โ the shape you want where a line has to round a frame rail, a crossmember or a valve body without a separate elbow in the run. Both tube ends are push-lock (PLC), so 3/8in DOT nylon air brake tubing seats with a straight push and locks in place, with no ferrules to lose in the gravel and no compression nut to over-torque.
The 1/4in rigid pipe end is fixed rather than swiveling, which gives the branch a solid, positively located seat once it is torqued home. The brass body carries the moisture, compressor oil and winter road salt of a heavy-duty air system, and the fitting is DOT-approved for heavy-duty air brake systems and meets FMVSS 571.106. At FleetPro Parts & Tires, we know air leaks start at fittings. This Automann run tee is a direct replacement for highly searched industry numbers including Parker 171PMTNS-6-4, Gates G31130-0406, Haldex APB71F6X4 and Velvac 017901.
Vehicle Fitment & Compatibility
This universal-application DOT brass fitting is intended for the following commercial use:
- Make/Model: Universal - Class 8 tractors and commercial trailers
- System: Air brake plumbing on tractors and trailers
- Tube Ends: Two 3/8in push-lock, connecting perpendicular to each other
- Branch: 1/4in rigid pipe end
- Component Group: Air Brake & Wheel / Air System Manifolds & Valves
Direct Replacement & Cross-Reference Numbers:
This Automann brass fitting serves as a direct replacement for the following part numbers:
- Parker Interchange: 171PMTNS-6-4, 171PMTNS64
- Gates Interchange: G31130-0406, G311300406
- Fairview Interchange: PC1471-6B, PC14716B
- Haldex Interchange: APB71F6X4
- Sloan Interchange: S271PMTNS-6-4
- Velvac Interchange: 017901
- Additional Interchange: 1871X6
- Automann Distributor #: 177.13B756B
Technical Specifications
- Component Type: Push-Lock (PLC) Male Run Tee
- Tube Ends: Two 3/8in, connecting perpendicular to each other
- Pipe End: 1/4in Rigid
- Body Material: Brass
- Application: Universal
- Compliance: DOT-approved for heavy-duty air brake systems, meets FMVSS 571.106
- UPC: 889626673870
- Product Level: Fleet Standard Aftermarket
- Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
- Perpendicular Run Legs: The two 3/8in tube ends sit at right angles, so a line rounds a frame rail or valve body without a separate elbow in the run.
- Push-Lock Tube Ends: 3/8in DOT nylon air brake tubing seats with a straight push and locks, with no ferrules to lose and no nut to over-torque.
- Rigid 1/4in Pipe Branch: A fixed, positively located branch seat that stays put once torqued, instead of drifting on a swivel.
- Solid Brass Body: Handles the moisture, compressor oil and winter road salt that circulate through a heavy-duty air system.
- DOT / FMVSS 571.106 Compliant: Approved for heavy-duty air brake systems, so it belongs in a real brake circuit.
Specifications
Component Type
Push-Lock (PLC) Male Run Tee
Tube Ends
Two 3/8in, connecting perpendicular to each other
Pipe End
1/4in rigid
Body Material
Brass
Application
Universal
Compliance
DOT-approved for heavy-duty air brake systems, meets FMVSS 571.106
UPC
889626673870
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 tractors and commercial trailers, Air brake plumbing on tractors and trailers, Turns a 3/8in air line 90 degrees while feeding a 1/4in branch. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Fairview PC1471-6B, Fairview PC14716B, Gates G31130-0406, Gates G311300406, Haldex APB71F6X4, Parker 171PMTNS-6-4, Parker 171PMTNS64, Sloan S271PMTNS-6-4, Velvac 017901, 1871X6.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
