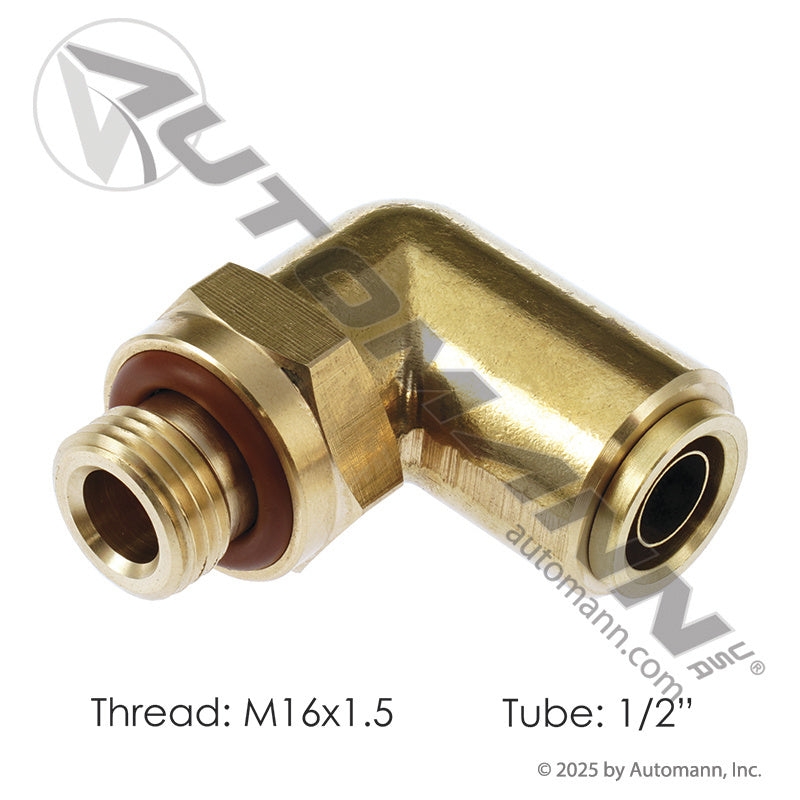

Brass Push-Lock Male Swivel Elbow - 1/2in Tube x M16 x 1.5 Metric Thread - Volvo 20515114 Parker 169PTCNSL-8-M16 177.13B698M16
Brass Push-Lock Male Swivel Elbow - 1/2in Tube x M16 x 1.5 Metric Thread - Volvo 20515114 Parker 169PTCNSL-8-M16 177.13B698M16
Automann

Brass Push-Lock Male Swivel Elbow - 1/2in Tube x M16 x 1.5 Metric Thread - Volvo 20515114 Parker 169PTCNSL-8-M16 177.13B698M16

In stock
SKU: 177.13B698M16
$17.50
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal, air brake plumbing (Volvo)Air brake plumbing on tractors and trailers1/2in DOT nylon tubing into an M16 x 1.5 port
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

3 cross-refs
Parker 169PTCNSL-8-M16 Parker 169PTCNSL8M16 Volvo 20515114
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

This DOT-approved brass push-lock male swivel elbow distributed by FleetPro Parts & Tires is the metric-thread fitting that Volvo air brake plumbing actually calls for: 1/2in DOT nylon tubing on the push-lock side and an M16 x 1.5 thread on the port side. Forcing an inch-thread fitting into a metric port is how you end up with a chewed valve body, a slow leak you chase for weeks, and a truck that dumps its air overnight. Manufactured by Automann to Fleet Standard specifications, we stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Correct Metric Thread: The M16 x 1.5 Swivel Elbow Advantage

The push-to-connect (PLC) tube end takes 1/2in DOT nylon air brake tubing with a straight push โ€” no ferrule, no nut, no second trip to the parts counter. The swivel body is the part that saves the job: seat and torque the M16 x 1.5 thread into the port to its own spec, then rotate the tube leg to line up with the run. The tubing goes in relaxed instead of pre-twisted, which is exactly the difference between a connection that seals for years and one that chafes through behind a crossmember.

The brass body is built for the water, oil carryover and winter road salt that live in a heavy-duty air system, and the fitting meets FMVSS 571.106 / DOT requirements for brake circuits โ€” it belongs in a service or emergency line, not just a shop air hose. At FleetPro Parts & Tires, we know the right thread is the whole job. This Automann elbow replaces 177.V20515114 and is a direct replacement for highly searched industry numbers including Volvo 20515114 and Parker 169PTCNSL-8-M16.

Vehicle Fitment & Compatibility

This DOT brass fitting is intended for the following commercial applications:

  • Make/Model: Universal, Volvo
  • System: Universal air brake plumbing (Volvo)
  • Tube End: PLC 1/2in DOT nylon tubing
  • Thread: M16 x 1.5 male swivel
  • Component Group: Air Brake & Wheel / Air System Manifolds & Valves

Direct Replacement & Cross-Reference Numbers:

This Automann brass fitting serves as a direct replacement for the following part numbers:

  • Volvo Interchange: 20515114
  • Parker Interchange: 169PTCNSL-8-M16, 169PTCNSL8M16
  • Automann Supersedes: 177.V20515114
  • Automann Distributor #: 177.13B698M16

Technical Specifications

  • Component Type: Push-Lock (PLC) Male Swivel Elbow
  • Tube End: PLC 1/2in DOT Nylon Tubing
  • Thread: M16 x 1.5
  • Body Material: Brass
  • Application: Universal, Volvo
  • Replaces: 177.V20515114
  • Compliance: Meets FMVSS 571.106 / DOT requirements for brake circuits
  • UPC: 889626743481
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Correct M16 x 1.5 Metric Thread: Seats in the metric port the way the factory fitting did, instead of chewing threads with a forced inch-size substitute.
  • Push-Lock 1/2in Tube End: DOT nylon air brake tubing pushes straight in and locks, with no ferrule, nut or flaring tool needed at the roadside.
  • Swivel Body: Torque the thread to spec first, then rotate the tube leg to the run so the tubing enters relaxed rather than pre-twisted.
  • Brass Construction: Handles the moisture, oil carryover and winter road salt that circulate through a heavy-duty air system.
  • FMVSS 571.106 / DOT Brake Circuit Rated: Legal in service and emergency brake lines, not just shop air.
Specifications
Component Type
Push-Lock (PLC) Male Swivel Elbow
Tube End
PLC 1/2in DOT Nylon Tubing
Thread
M16 x 1.5
Body Material
Brass
Application
Universal, Volvo
Replaces
177.V20515114
Compliance
Meets FMVSS 571.106 / DOT requirements for brake circuits
UPC
889626743481
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal, air brake plumbing (Volvo), Air brake plumbing on tractors and trailers, 1/2in DOT nylon tubing into an M16 x 1.5 port. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Parker 169PTCNSL-8-M16, Parker 169PTCNSL8M16, Volvo 20515114.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
