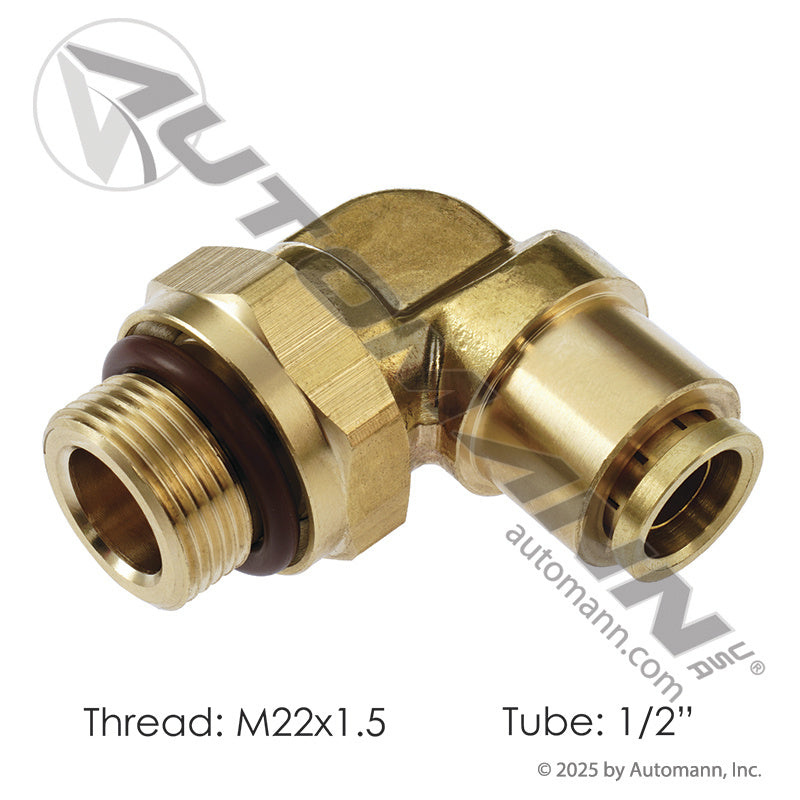

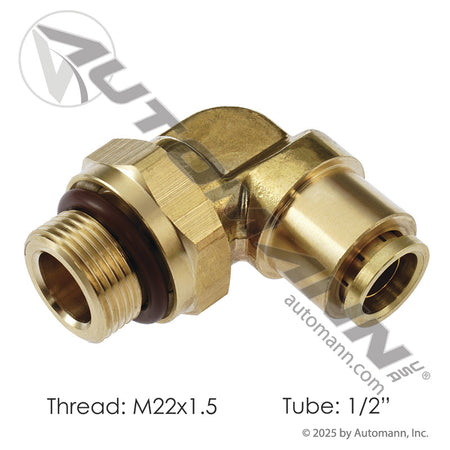

Brass Push-Lock Male Swivel Elbow - 1/2in Tube x M22 x 1.5 Metric Thread - Volvo 20462690 Haldex APM69S8XM22 177.13B698M22
Brass Push-Lock Male Swivel Elbow - 1/2in Tube x M22 x 1.5 Metric Thread - Volvo 20462690 Haldex APM69S8XM22 177.13B698M22
Automann

Brass Push-Lock Male Swivel Elbow - 1/2in Tube x M22 x 1.5 Metric Thread - Volvo 20462690 Haldex APM69S8XM22 177.13B698M22

In stock
SKU: 177.13B698M22
$16.78
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal, air brake plumbing (Volvo)Air brake plumbing on tractors and trailers1/2in DOT nylon tubing into an M22 x 1.5 port
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

4 cross-refs
Haldex APM69S8XM22 Parker 169PTCNSL-8-M22 Parker 169PTCNSL8M22 Volvo 20462690
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

This DOT-approved brass push-lock male swivel elbow distributed by FleetPro Parts & Tires carries the large metric port thread used across Volvo air brake plumbing: 1/2in DOT nylon tubing on the push-lock side, M22 x 1.5 on the thread side. A metric port that has been cross-threaded by an inch-size fitting turns a fifteen-minute air leak repair into a valve or manifold replacement. Manufactured by Automann to Fleet Standard specifications, we stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

The Right Port Thread: The M22 x 1.5 Swivel Elbow Advantage

The push-to-connect (PLC) end accepts 1/2in DOT nylon air brake tubing with a straight push โ€” no nut, no ferrule, no flaring tool in the toolbox. The swivel design does the real work on a tight chassis: torque the M22 x 1.5 thread home to its own spec, then spin the tube leg to face the run. The line drops in relaxed instead of wound up, and relaxed tubing is what survives a winter of vibration without chafing through against a crossmember.

Brass resists the water, compressor oil and road salt that circulate through a heavy-duty air system, and this fitting meets FMVSS 571.106 / DOT requirements for brake circuits, so it belongs in a service or emergency line rather than only on shop air. At FleetPro Parts & Tires, we know the thread pitch is the whole repair. This Automann elbow replaces 177.V20462690 and is a direct replacement for highly searched industry numbers including Volvo 20462690, Haldex APM69S8XM22 and Parker 169PTCNSL-8-M22.

Vehicle Fitment & Compatibility

This DOT brass fitting is intended for the following commercial applications:

  • Make/Model: Universal, Volvo
  • System: Universal air brake plumbing (Volvo)
  • Tube End: PLC 1/2in DOT nylon tubing
  • Thread: M22 x 1.5 male swivel
  • Component Group: Air Brake & Wheel / Air System Manifolds & Valves

Direct Replacement & Cross-Reference Numbers:

This Automann brass fitting serves as a direct replacement for the following part numbers:

  • Volvo Interchange: 20462690
  • Haldex Interchange: APM69S8XM22
  • Parker Interchange: 169PTCNSL-8-M22, 169PTCNSL8M22
  • Automann Supersedes: 177.V20462690
  • Automann Distributor #: 177.13B698M22

Technical Specifications

  • Component Type: Push-Lock (PLC) Male Swivel Elbow
  • Tube End: PLC 1/2in DOT Nylon Tubing
  • Thread: M22 x 1.5
  • Body Material: Brass
  • Application: Universal, Volvo
  • Replaces: 177.V20462690
  • Compliance: Meets FMVSS 571.106 / DOT requirements for brake circuits
  • UPC: 889626743498
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Correct M22 x 1.5 Metric Thread: Matches the large metric port used in Volvo air brake plumbing so nothing gets cross-threaded on installation.
  • Push-Lock 1/2in Tube End: DOT nylon air brake tubing pushes straight in and locks, with no nut, ferrule or flaring tool required.
  • Swivel Body: Torque the thread to spec, then rotate the tube leg to the run so the line enters relaxed instead of wound up.
  • Brass Construction: Stands up to the water, compressor oil and road salt circulating through a heavy-duty air system.
  • FMVSS 571.106 / DOT Brake Circuit Rated: Approved for service and emergency brake lines, not just shop air plumbing.
Specifications
Component Type
Push-Lock (PLC) Male Swivel Elbow
Tube End
PLC 1/2in DOT Nylon Tubing
Thread
M22 x 1.5
Body Material
Brass
Application
Universal, Volvo
Replaces
177.V20462690
Compliance
Meets FMVSS 571.106 / DOT requirements for brake circuits
UPC
889626743498
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal, air brake plumbing (Volvo), Air brake plumbing on tractors and trailers, 1/2in DOT nylon tubing into an M22 x 1.5 port. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Haldex APM69S8XM22, Parker 169PTCNSL-8-M22, Parker 169PTCNSL8M22, Volvo 20462690.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
