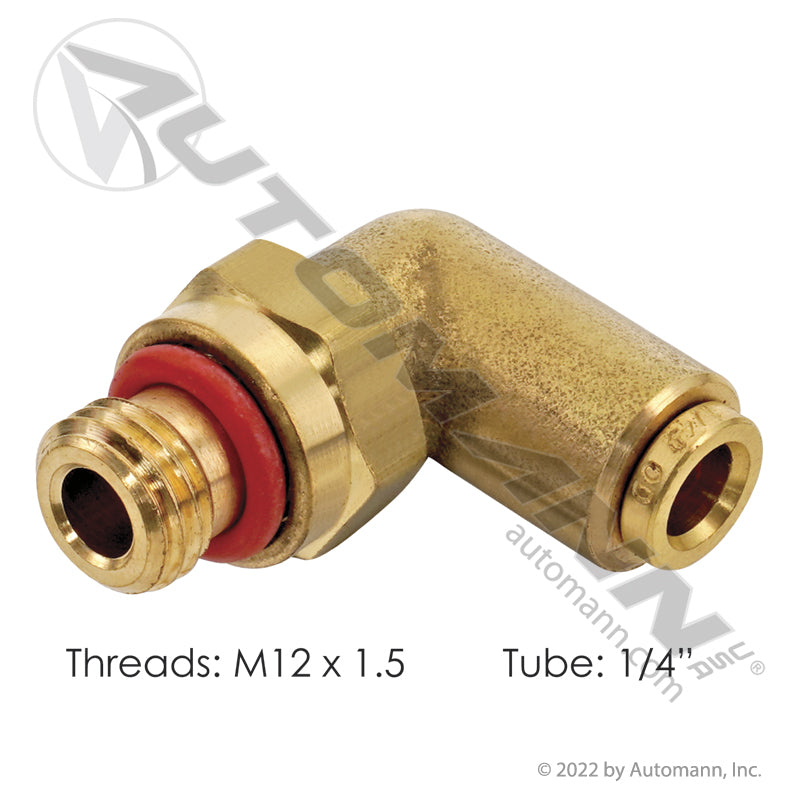

Brass Push-to-Connect (PLC) Male Swivel Elbow - 1/4" Tube x M12 x 1.5 - Volvo 994146 Freightliner 23-13255-000 Haldex APM69S4XM12 177.13B694M12
Regular price
$14.01
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Universal - air brake plumbing on tractors and trailersCommonly used on Volvo air brake plumbing1/4 in DOT nylon tubing into an M12 x 1.5 port
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
10 cross-refsFreightliner 23-13255-000 Freightliner 2313255000 Haldex APM69S4XM12 Parker 169PMTNS-4-M12 Parker 169PMTNS4M12 Parker 169PTCNS-4-M12 Parker 169PTCNS4M12 Parker 169PTCNSL-4-M12 Parker 169PTCNSL4M12 Volvo 994146
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Get a metric air port plumbed correctly with this Brass Push-to-Connect (PLC) Male Swivel Elbow distributed by FleetPro Parts & Tires. It carries 1/4 in DOT nylon air brake tubing into an M12 x 1.5 threaded port โ the small metric thread that leaves you standing at a parts counter watching someone hunt through NPT bins. A control line that has been kinked to reach its port, or an elbow that has started to weep at the thread, drags the whole system down: slow recovery, a compressor that cycles constantly, and an audible leak on a brake circuit that ends in an out-of-service ticket. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
The Metric Thread You Cannot Find Locally: The M12 Swivel Elbow Advantage
Because the thread swivels independently of the tube port, the M12 x 1.5 male thread gets seated properly first and the elbow is then rotated to aim the tube run. That is the difference between a control line that lies relaxed and one that has been twisted a quarter turn to reach its fitting and will work-harden where it enters over the next winter. Metric ports are unforgiving of improvised adapter stacks, and every extra joint you avoid is one less place to leak.
The fitting is a DOT-approved brass air fitting that meets FMVSS 571.106 and DOT requirements for brake circuits, so it stays in the line legally. Brass also means it comes back out in five years instead of shearing off in the port the way a corroded plated-steel fitting does.
At FleetPro Parts & Tires, we know this size gets ordered by whichever number is legible on the old part. This elbow is a direct replacement for highly searched industry numbers including Volvo 994146, Freightliner 23-13255-000, Haldex APM69S4XM12 and the Parker 169PMTNS-4-M12 and 169PTCNSL-4-M12 families, and it supersedes Automann 177.V994146 and 177.2313255000.
Vehicle Fitment & Compatibility
This DOT brass air fitting uses a universal design intended for the following commercial applications:
- Make/Model: Universal โ air brake plumbing on tractors and trailers, commonly Volvo
- System: Air brake plumbing / brake circuits
- Tube Size: 1/4 in DOT nylon tubing, push-to-connect
- Port Thread: M12 x 1.5 male swivel
- Standards: Meets FMVSS 571.106 / DOT requirements for brake circuits
Direct Replacement & Cross-Reference Numbers:
This Automann brass fitting serves as a direct replacement for the following part numbers:
- Volvo Interchange: 994146
- Freightliner Interchange: 23-13255-000, 2313255000
- Haldex Interchange: APM69S4XM12
- Parker Interchange: 169PMTNS-4-M12, 169PMTNS4M12, 169PTCNS-4-M12, 169PTCNS4M12, 169PTCNSL-4-M12, 169PTCNSL4M12
- Supersedes: 177.V994146, 177.2313255000
- Automann Distributor #: 177.13B694M12
Technical Specifications
- Component Type: Push-to-Connect (PLC) Male Swivel Elbow, DOT Air Brake
- Tube End: 1/4 in DOT Nylon Tubing
- Thread: M12 x 1.5
- Material: Brass
- Application: Universal, Volvo
- Compliance: FMVSS 571.106 / DOT
- Replaces: 177.V994146 and 177.2313255000
- Product Level: Fleet Standard Aftermarket
- Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
- Hard-to-Source M12 x 1.5 Thread: The small metric port that most counters do not stock, matched directly instead of through an adapter stack.
- Swivel Thread End: Seat the thread first, then rotate the elbow to aim the run, so the control line is never twisted to reach its fitting.
- Widest Cross Coverage in the Size: Crosses to Volvo 994146, Freightliner 23-13255-000, Haldex APM69S4XM12 and six Parker numbers.
- DOT Brass Construction: Meets FMVSS 571.106 requirements for brake circuits and comes back out of the port years later instead of shearing off.
- Supersedes Two Automann Numbers: Replaces both 177.V994146 and 177.2313255000, so one part covers the older listings.
Specifications
Component Type
Push-to-Connect (PLC) Male Swivel Elbow, DOT Air Brake
Tube End
1/4 in DOT Nylon Tubing
Thread
M12 x 1.5
Material
Brass
Application
Universal, Volvo
Compliance
FMVSS 571.106 / DOT
Replaces
177.V994146 and 177.2313255000
UPC
889626743467
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - air brake plumbing on tractors and trailers, Commonly used on Volvo air brake plumbing, 1/4 in DOT nylon tubing into an M12 x 1.5 port. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Freightliner 23-13255-000, Freightliner 2313255000, Haldex APM69S4XM12, Parker 169PMTNS-4-M12, Parker 169PMTNS4M12, Parker 169PTCNS-4-M12, Parker 169PTCNS4M12, Parker 169PTCNSL-4-M12, Parker 169PTCNSL4M12, Volvo 994146.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
