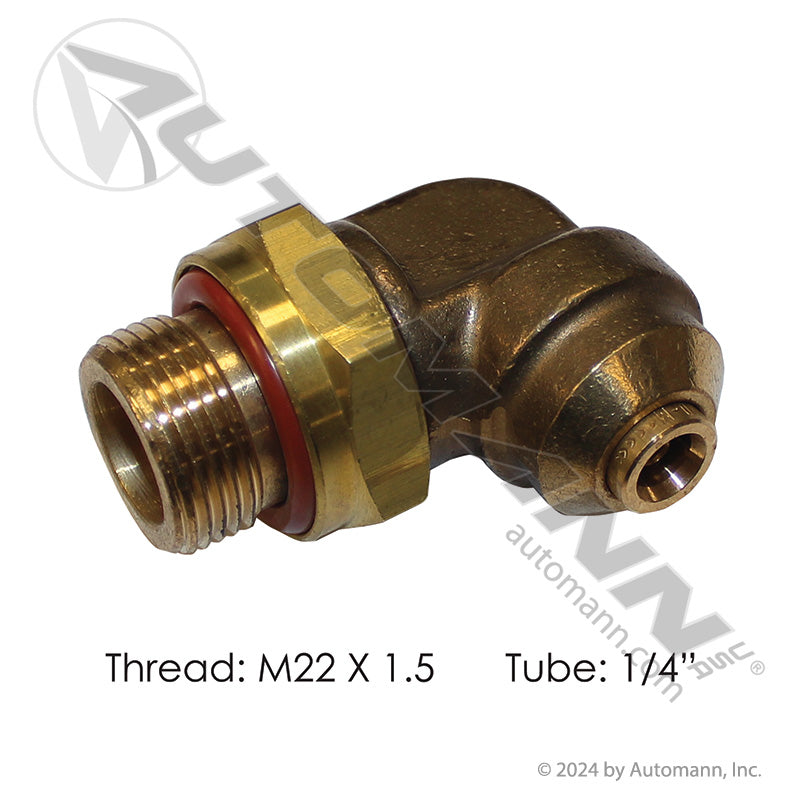

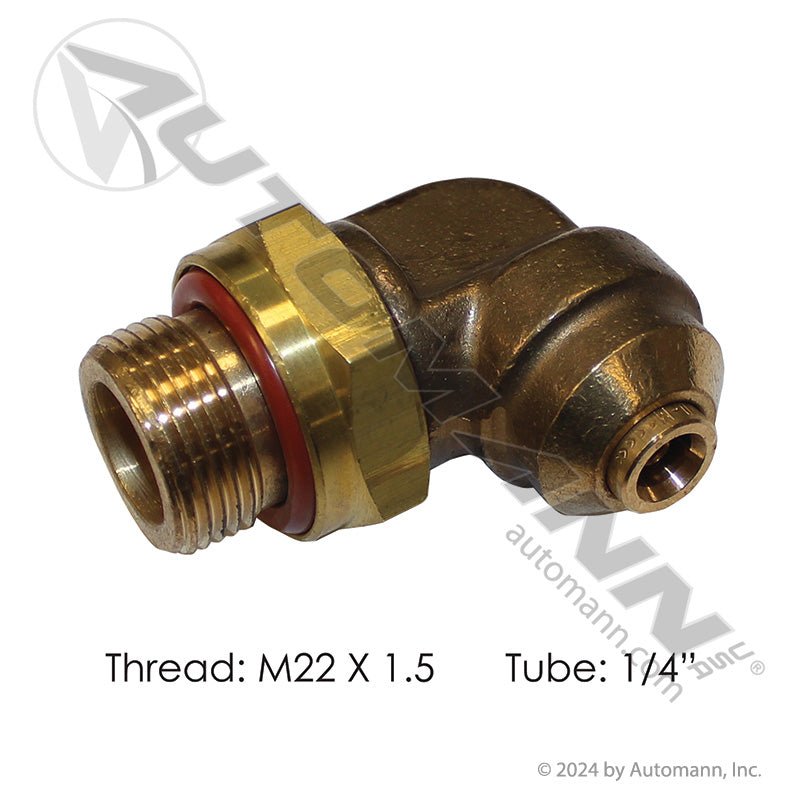

Brass Push-to-Connect (PLC) Male Swivel Elbow - 1/4" Tube x M22 x 1.5 - Volvo 3180102 Parker 169PTCNSL-4-M22 177.13B694M22
Regular price
$27.81
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Universal - air brake plumbing on tractors and trailersCommonly used on Volvo air brake plumbing1/4 in DOT nylon tubing into an M22 x 1.5 port
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
3 cross-refsParker 169PTCNSL-4-M22 Parker 169PTCNSL4M22 Volvo 3180102
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Land a small control line into a large metric port with this Brass Push-to-Connect (PLC) Male Swivel Elbow distributed by FleetPro Parts & Tires. It takes 1/4 in DOT nylon air brake tubing into an M22 x 1.5 threaded boss โ an odd pairing that is nearly impossible to improvise, because bushing a big metric port down to a small tube run adds two more joints and two more places to leak. Every one of those joints eventually weeps, and a slow leak on a brake circuit means constant compressor cycling, pressure gone by morning, and an audible leak that will take a truck out of service at the scale. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
One Fitting Instead of an Adapter Stack: The 1/4 in to M22 Swivel Elbow Advantage
This elbow does in one brass body what would otherwise take a metric-to-NPT bushing plus a separate push-to-connect elbow. Fewer joints means fewer leak paths, less weight hanging off the port, and no stack of adapters to work loose with chassis vibration. Because the thread end swivels, the M22 x 1.5 male thread is seated properly first and the elbow is then rotated to aim the tube โ the nylon line leaves relaxed instead of pre-twisted.
It is a DOT-approved brass air fitting that meets FMVSS 571.106 and DOT requirements for brake circuits, so it can stay in the line permanently. Brass also survives the road salt and washdown chemistry that seize plated-steel fittings into a component until they shear.
At FleetPro Parts & Tires, we know this one gets searched by the number stamped on whatever came off. This elbow is a direct replacement for highly searched industry numbers including Volvo 3180102 and Parker 169PTCNSL-4-M22 (also listed as 169PTCNSL4M22), and it supersedes Automann 177.V3180102. Order it as 177.13B694M22.
Vehicle Fitment & Compatibility
This DOT brass air fitting uses a universal design intended for the following commercial applications:
- Make/Model: Universal โ air brake plumbing on tractors and trailers, commonly Volvo
- System: Air brake plumbing / brake circuits
- Tube Size: 1/4 in DOT nylon tubing, push-to-connect
- Port Thread: M22 x 1.5 male swivel
- Standards: Meets FMVSS 571.106 / DOT requirements for brake circuits
Direct Replacement & Cross-Reference Numbers:
This Automann brass fitting serves as a direct replacement for the following part numbers:
- Volvo Interchange: 3180102
- Parker Interchange: 169PTCNSL-4-M22, 169PTCNSL4M22
- Supersedes: 177.V3180102
- Automann Distributor #: 177.13B694M22
Technical Specifications
- Component Type: Push-to-Connect (PLC) Male Swivel Elbow, DOT Air Brake
- Tube End: 1/4 in DOT Nylon Tubing
- Thread: M22 x 1.5
- Material: Brass
- Application: Universal, Volvo
- Compliance: FMVSS 571.106 / DOT
- Replaces: 177.V3180102
- Product Level: Fleet Standard Aftermarket
- Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
- Replaces an Adapter Stack: Takes a 1/4 in tube run straight into a large M22 x 1.5 port in one body, removing two joints that would otherwise leak.
- Swivel Thread End: The M22 thread seats first and the elbow then rotates to aim the tube, so the nylon control line is never pre-twisted.
- Metric Port Match: Threads directly into the M22 x 1.5 brake-component ports used on Volvo air systems.
- DOT Brass Construction: Meets FMVSS 571.106 requirements for brake circuits and resists the salt and washdown chemistry that seize steel fittings.
- Volvo and Parker Interchange: Crosses to Volvo 3180102 and Parker 169PTCNSL-4-M22, and supersedes Automann 177.V3180102.
Specifications
Component Type
Push-to-Connect (PLC) Male Swivel Elbow, DOT Air Brake
Tube End
1/4 in DOT Nylon Tubing
Thread
M22 x 1.5
Material
Brass
Application
Universal, Volvo
Compliance
FMVSS 571.106 / DOT
Replaces
177.V3180102
UPC
889626743474
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - air brake plumbing on tractors and trailers, Commonly used on Volvo air brake plumbing, 1/4 in DOT nylon tubing into an M22 x 1.5 port. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Parker 169PTCNSL-4-M22, Parker 169PTCNSL4M22, Volvo 3180102.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
