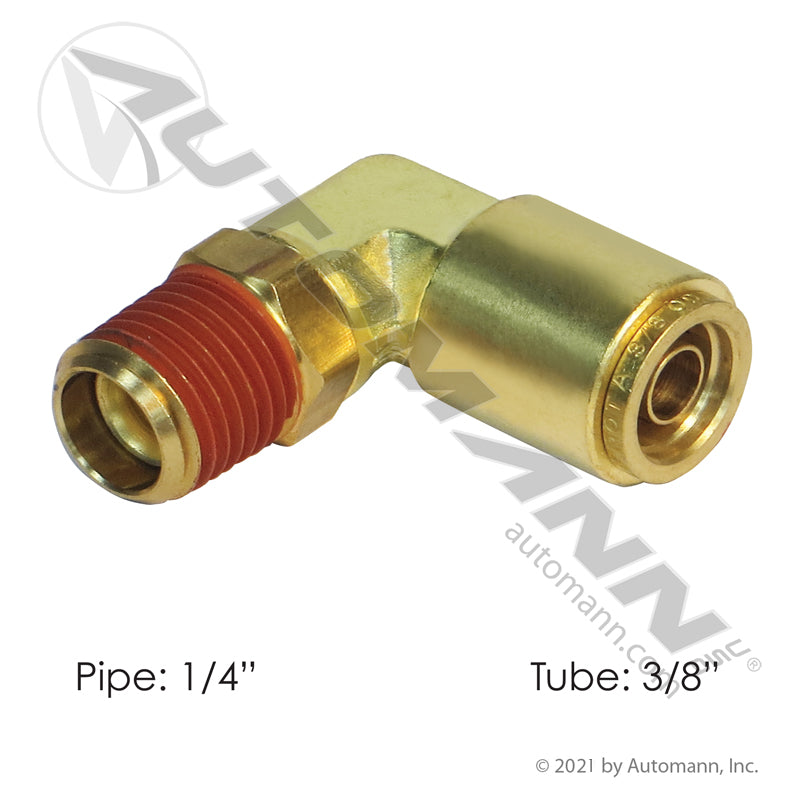

Brass Push-to-Connect (PLC) Male Swivel Elbow 90 Degree - 3/8" Tube x 1/4" NPT - Eaton 1869X6S Volvo/White 8397700 177.13B696B
Regular price
$5.98
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Universal - tractors and trailers with air brake systemsAir brake plumbing / brake circuits3/8 in nylon tubing into a 1/4 in female NPT port at 90 degrees
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
3 cross-refsEaton 1869X6S Parker 169PMT64 Volvo/White 8397700
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Turn a 3/8 in air line right at the component with this Brass Push-Lock Connect (PLC) Male Swivel Elbow distributed by FleetPro Parts & Tires. It runs a 3/8 in tube end through a 90 degree bend into a 1/4 in swivel male NPT port, so a mid-size line can leave a valve or tank fitting cleanly instead of being bent hard against a frame rail. Tubing forced into a tight radius work-hardens and eventually splits, and a cracked collet or a weeping thread costs you air all day โ constant compressor cycling, a low-air warning that finds you on a grade, and an audible leak on a brake circuit that ends the trip at the scale. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
A Relaxed Line and a Sealed Thread: The 90 Degree Swivel Elbow Advantage
Construction is brass body and collet throughout, which is what keeps this fitting serviceable. Brass will not scale up and seize into the port the way plated steel does after a few Midwest winters of salt and washdowns, and a brass collet will not go brittle and release the tube like the plastic collets on economy fittings. The elbow is nylon tube compatible and DOT approved for heavy-duty air brake systems, meeting FMVSS 571.106 requirements for brake circuits.
The swivel thread end is the practical difference on an elbow. You seat the 1/4 in male NPT thread properly and only then rotate the elbow to aim the tube run, instead of settling for whatever angle the thread stops at and twisting the nylon to reach. At a listed 0.2 lbs and 1.54 x 1.48 x 0.65 in, it is a small part with an outsized effect on how long a line lasts.
At FleetPro Parts & Tires, we know this one gets looked up three different ways. This elbow is a direct replacement for highly searched industry numbers including Eaton 1869X6S, Parker 169PMT64 and Volvo/White 8397700. It ships new and is backed by our 1-Year FleetPro Warranty.
Vehicle Fitment & Compatibility
This DOT brass air fitting uses a universal design intended for the following commercial applications:
- Make/Model: Universal โ tractors and trailers with air brake systems
- System: Air brake plumbing / brake circuits
- Tube Size: 3/8 in push-to-connect tube end, nylon tube compatible
- Port Thread: 1/4 in swivel male NPT
- Angle: 90 degree elbow
- Standards: Meets FMVSS 571.106 / DOT requirements for brake circuits
Direct Replacement & Cross-Reference Numbers:
This Automann brass fitting serves as a direct replacement for the following part numbers:
- Eaton Interchange: 1869X6S
- Parker Interchange: 169PMT64
- Volvo/White Interchange: 8397700

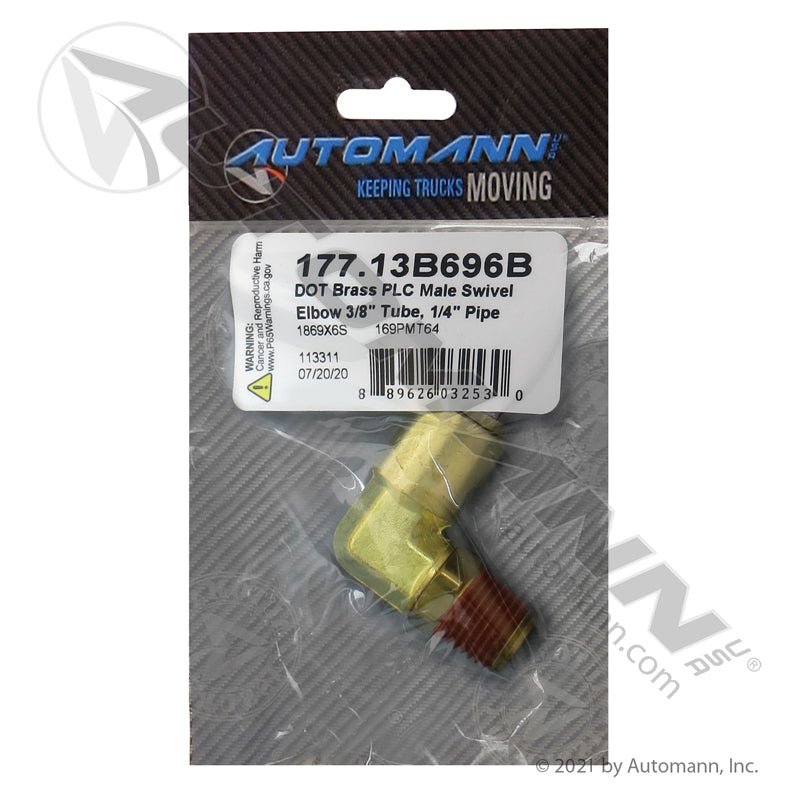

- Automann Distributor #: 177.13B696B
Technical Specifications
- Component Type: Push-to-Connect (PLC) Male Swivel Elbow, DOT Air Brake
- Tube End: 3/8 in
- Pipe Thread: 1/4 in NPT Male Swivel
- Angle: 90 degree
- Body: Brass body and collet
- Tube Compatibility: Nylon tube compatible
- Compliance: FMVSS 571.106 / DOT
- Condition: New
- Warranty: 1-Year FleetPro Warranty
- Weight: 0.2 lbs
- Package Dims: 1.54 x 1.48 x 0.65 in
- Product Level: Fleet Standard Aftermarket
- Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
- True 90 Degree Turn: Lets a 3/8 in line leave the component at a right angle instead of being bent into a radius that work-hardens and splits.
- Swivel Thread End: Seat the 1/4 in NPT thread properly first, then rotate the elbow to aim the tube, so the nylon is never twisted to reach.
- All-Brass Body and Collet: Brass resists the salt and washdown chemistry that seize plated-steel fittings and embrittle plastic collets.
- DOT Approved for Heavy-Duty Air Brakes: Nylon tube compatible and meeting FMVSS 571.106 requirements for brake circuits.
- Three-Way Interchange: Crosses to Eaton 1869X6S, Parker 169PMT64 and Volvo/White 8397700, however the old part is stamped.
Specifications
Component Type
Push-to-Connect (PLC) Male Swivel Elbow, DOT Air Brake
Tube End
3/8 in
Pipe Thread
1/4 in NPT Male Swivel
Angle
90 degree
Body
Brass body and collet
Tube Compatibility
Nylon tube compatible
Compliance
FMVSS 571.106 / DOT
Condition
New
Warranty
1-Year FleetPro Warranty
Weight
0.2 lbs
Package Dims
1.54 x 1.48 x 0.65 in
UPC
889626032530
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - tractors and trailers with air brake systems, Air brake plumbing / brake circuits, 3/8 in nylon tubing into a 1/4 in female NPT port at 90 degrees. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Eaton 1869X6S, Parker 169PMT64, Volvo/White 8397700.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
