Castellated Sleeve for Air Brake Hose - 3/8" Reusable Fitting - Euclid E8602 33086A 177.16966
Castellated Sleeve for Air Brake Hose - 3/8" Reusable Fitting - Euclid E8602 33086A 177.16966
Automann

Castellated Sleeve for Air Brake Hose - 3/8" Reusable Fitting - Euclid E8602 33086A 177.16966

In stock
SKU: 177.16966
$0.92
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 trucks, tractors and commercial trailersAir brake systems using 3/8 in DOT rubber hoseField assembly and repair of DOT air brake hose endsOuter sleeve for reusable 3/8 in hose end fittings
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

6 cross-refs
Euclid E8602 33086A 60RB6 1022 500005 S360AB6
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

The sleeve is the half of a reusable hose end that nobody remembers to order. This 3/8 in castellated sleeve distributed by FleetPro Parts & Tires is the outer half of a field-assembled fitting for DOT rubber air brake hose โ€” it goes over the hose so the coupling can seal inside it. Reuse a tired, distorted sleeve on a fresh repair and the joint weeps, the hose creeps out under pressure, and you get to do the job twice. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

The Half That Grips: The 3/8 In Castellated Sleeve Advantage

A reusable air brake hose end is a two-piece system. The castellated sleeve threads over the outside of the hose and holds it; the coupling then enters the bore and seals against it. The castellations โ€” the slotted crown that gives the part its name โ€” let the sleeve close down onto the hose cover instead of simply pinching it flat, which is why a correctly sized sleeve grips a 3/8 in hose without cutting into the reinforcement underneath.

Keep sleeves in the same quantity as your couplings and a hose repair stops being a project. Cut, sleeve, couple, pressurize โ€” the whole repair happens on your bench. At FleetPro Parts & Tires we keep the cheap half of the job in stock precisely because it is the piece that holds everything up. This Automann sleeve is a direct replacement for highly searched industry numbers including Euclid E8602, 33086A, 60RB6, 1022, 500005 and S360AB6, and it replaces the earlier 177.7013.

Vehicle Fitment & Compatibility

This Fleet Standard fitting uses a universal design intended for the following commercial applications:

  • Make/Model: Universal - Class 8 trucks, commercial tractors and trailers
  • System: Air brake systems plumbed in 3/8 in DOT rubber hose
  • Assembly Role: Outer sleeve of a reusable, field-assembled hose end
  • Service: Field assembly and repair of DOT rubber air brake hose ends

Direct Replacement & Cross-Reference Numbers:

This Automann castellated sleeve serves as a direct replacement for the following part numbers:

  • Euclid Interchange: E8602
  • Additional Interchange: 33086A, 60RB6, 1022, 500005, S360AB6
  • Automann Supersedes: 177.7013
  • Automann Distributor #: 177.16966

Technical Specifications

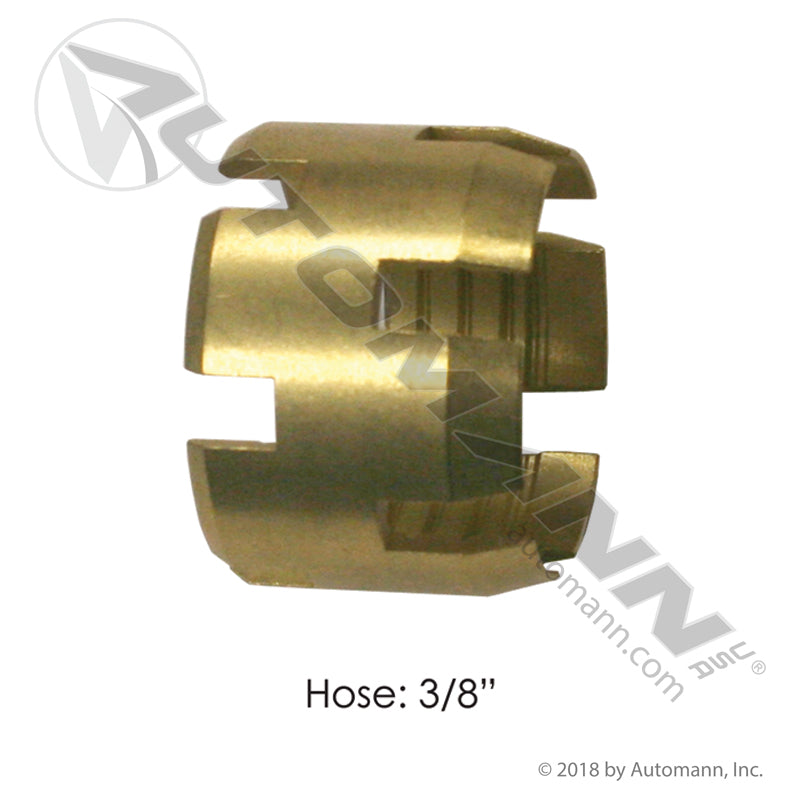

  • Component Type: 3/8 in Castellated Sleeve
  • Hose Size: 3/8 in DOT Air Brake Hose
  • Assembly: Reusable field-assembled hose end hardware
  • Replaces: 177.7013
  • OEM Reference: Euclid E8602
  • UPC: 889626444630
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Correct 3/8 In Grip: Sized for 3/8 in DOT rubber air brake hose so the sleeve holds the cover without crushing the reinforcement under it.
  • Fresh Sleeve, Sealed Joint: A new sleeve on every rebuild stops the weeping ends and hose creep you get from reusing a distorted one.
  • Half of a Reusable Hose End: Pairs with the matching coupling so DOT hose can be cut and assembled at your own bench.
  • Wide Euclid Interchange: Direct replacement for Euclid E8602 plus 33086A, 60RB6, 1022, 500005 and S360AB6.
  • Supersedes 177.7013: One current Automann number covers the older callout.
Specifications
Component Type
3/8 in Castellated Sleeve
Hose Size
3/8 in DOT Air Brake Hose
Assembly
Reusable field-assembled hose end hardware
Replaces
177.7013
OEM Reference
Euclid E8602
UPC
889626444630
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 trucks, tractors and commercial trailers, Air brake systems using 3/8 in DOT rubber hose, Field assembly and repair of DOT air brake hose ends, Outer sleeve for reusable 3/8 in hose end fittings. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Euclid E8602, 33086A, 60RB6, 1022, 500005, S360AB6.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
