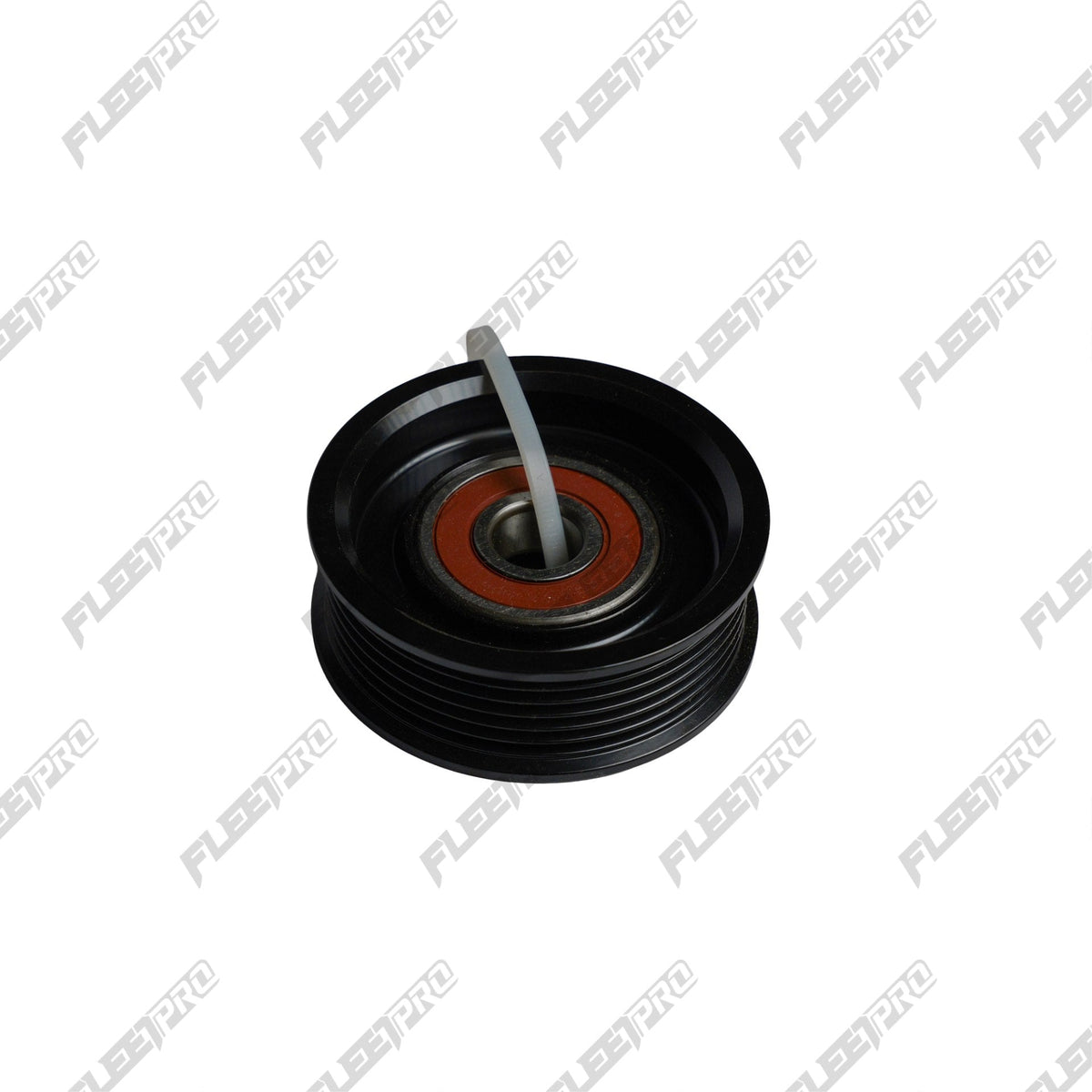

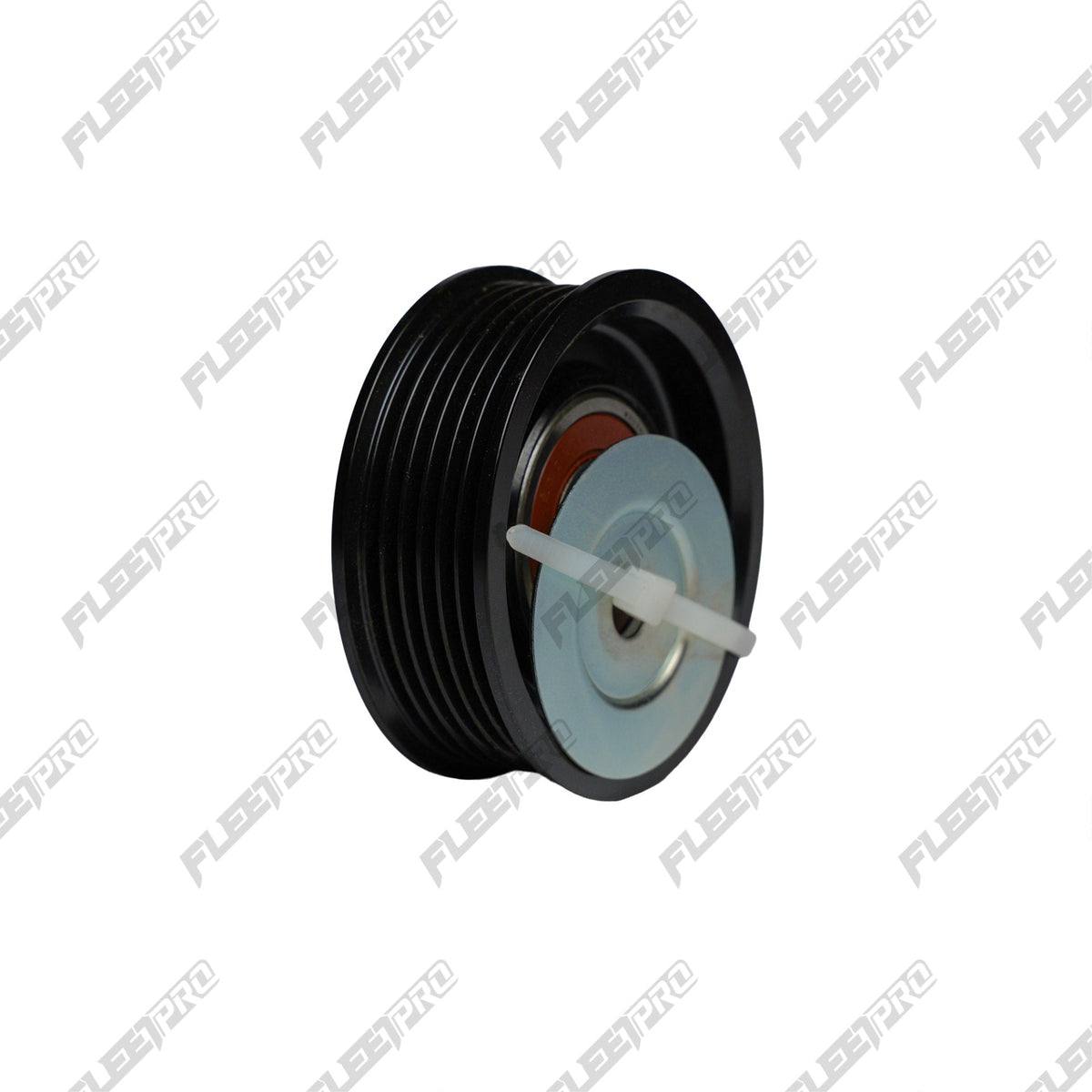

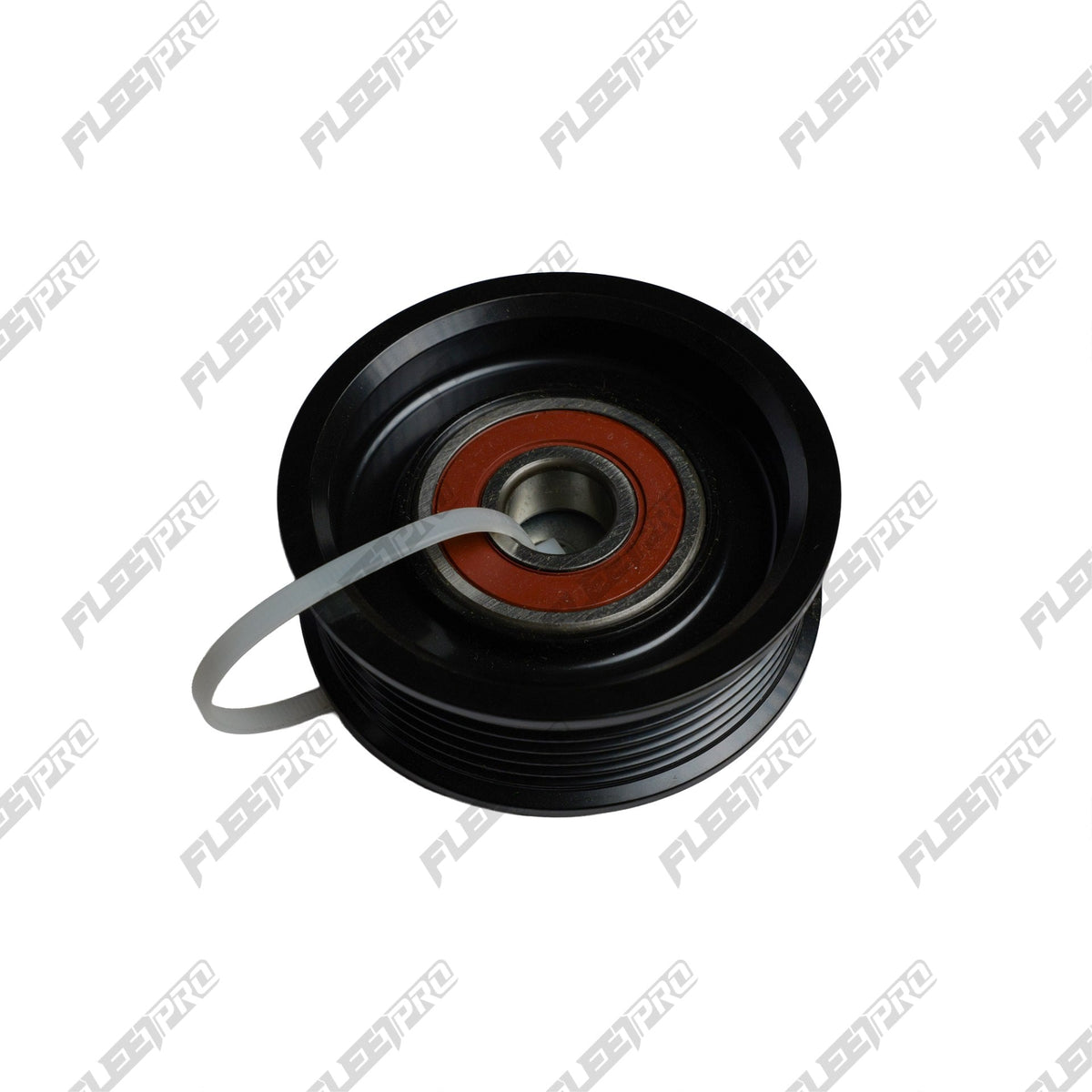

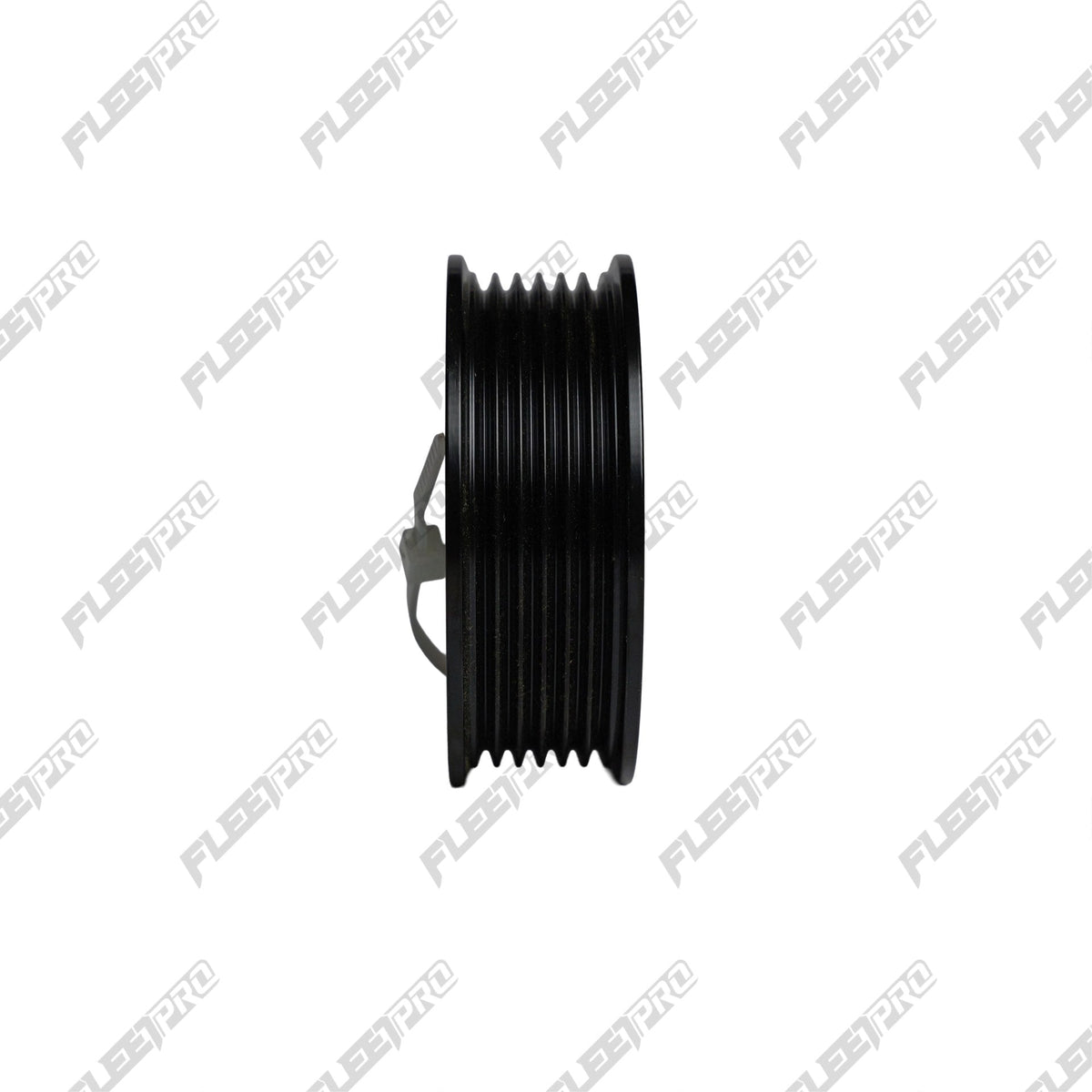

Continental Elite Idler Pulley - Grooved Poly-V, Cummins ISX15 / X15 - 49147 816.49147
Regular price
$47.07
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Cummins ISX, ISX15 and X15 heavy-duty 15L enginesKenworth, Peterbilt, Freightliner, International and Volvo tractorsAccessory drive bracket - guide pulley in the serpentine belt path
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
2 cross-refsContinental Elite 49147 ContiTech 49147
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Silence the growl at the front of the engine with this Continental Elite (Accu-Drive) grooved idler pulley distributed by FleetPro Parts & Tires. It is the pulley that guides and tensions the serpentine belt around the front of a Cummins ISX, ISX15 or X15, and when its bearing wears out it tells you plainly: a squeal or growl from the front cover, belt wobble you can see at idle, and premature wear on the edge of a belt you just paid for. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
Quiet, True Belt Tracking: The Continental Elite Idler Advantage
This pulley is built to OE form, fit and function as a direct replacement, and the details are where that shows. The body is a precision steel stamping rather than a moulded substitute, and it turns on a close-tolerance sealed ball bearing - sealed because an idler bearing lives in the direct path of everything the front tires throw at it. The running face is crowned, which is the geometry that keeps the belt centred and tracking true instead of creeping toward one flange and chewing its own edge.
The whole pulley carries an electro-deposited corrosion-resistant finish, so the winters that pit a bare stamping do not get a head start on this one. At roughly 1 lb it is a small, cheap part sitting in a very expensive belt path, which is precisely the argument for replacing it while the belt is already off rather than going back in six months to do the same job twice.
At FleetPro Parts & Tires, we know the accessory drive is a system. This grooved idler is the direct replacement for the highly searched industry number 49147, referenced as Continental Elite 49147 and ContiTech 49147, and it mounts on the accessory drive bracket as a guide pulley in the serpentine belt path. Replace it with the belt and the tensioner and the drive goes quiet as a set.
Vehicle Fitment & Compatibility
This Continental Elite idler pulley is intended for the following commercial applications:
- Engines: Cummins ISX, ISX15 and X15 heavy-duty 15L engines
- Make/Model: Kenworth, Peterbilt, Freightliner, International and Volvo tractors
- Position: Accessory drive bracket, guide pulley in the serpentine belt path
- Component Group: Engine / Belts & Tensioners
Direct Replacement & Cross-Reference Numbers:
This Continental Elite idler pulley serves as a direct replacement for the following part numbers:
- Continental Elite Interchange: 49147
- ContiTech Interchange: 49147
- Automann Distributor #: 816.49147
Technical Specifications
- Component Type: Grooved (poly-V) idler pulley
- Body: Precision steel stamping
- Bearing: Close-tolerance sealed ball bearing
- Surface: Crowned running face for belt tracking
- Coating: Electro-deposited corrosion-resistant finish
- Weight: Approx. 1 lb
- UPC: 889626312014
- Warranty: 1-Year FleetPro Warranty
- Product Level: OEM
- Brand: Continental (Distributed by FleetPro Parts & Tires)
Key features
- Crowned Running Face: The crowned profile keeps the belt centred and tracking true instead of creeping toward a flange and chewing its own edge.
- Sealed Close-Tolerance Bearing: A sealed ball bearing keeps out the water and grit that kill an exposed idler bearing and start the front-cover growl.
- Precision Steel Stamping: A steel body rather than a moulded substitute, built to OE form, fit and function as a direct replacement.
- Corrosion-Resistant Finish: An electro-deposited coating keeps winter road chemicals from getting a head start on a bare stamping.
- Cheap Part, Expensive Belt Path: At about 1 lb it costs little to replace while the belt is already off, and a lot to skip and redo later.
Specifications
Component Type
Grooved (poly-V) idler pulley
Body
Precision steel stamping
Bearing
Close-tolerance sealed ball bearing
Surface
Crowned running face for belt tracking
Coating
Electro-deposited corrosion-resistant finish
Weight
Approx. 1 lb
UPC
889626312014
Warranty
1-Year FleetPro Warranty
Product Level
OEM
