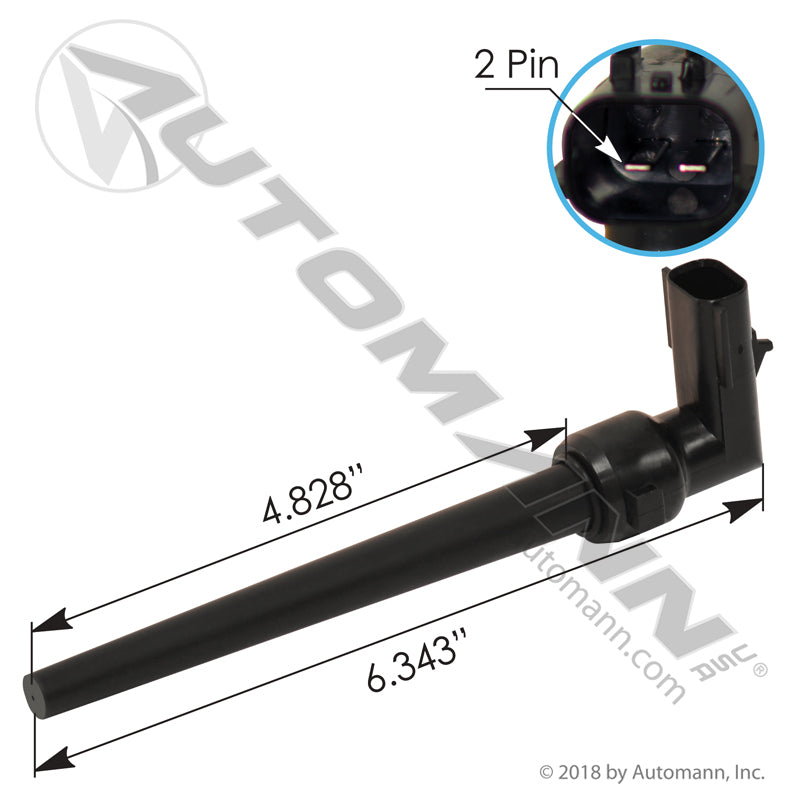

Coolant Level Sensor - 2-Pin for Freightliner HDEP Reservoir 575.10115 - 06-93316-000 577.46316

Clear the low-coolant warning at its source with this Coolant Level Sensor distributed by FleetPro Parts & Tires. Built to OE signal specification, it is the 2-pin sensor used on the Freightliner HDEP coolant reservoir 575.10115. When one of these fails the truck does not simply throw a light: you get a dash warning that will not clear, a stored fault code, and a derate that turns a loaded grade into a long, slow climb. Manufactured by Automann to Fleet Standard specifications, this sensor is stocked heavily right here in our Hanover Park, Illinois warehouse for lightning-fast shipping to fleets, diesel repair shops, and owner-operators nationwide.

Warning Light Solved: The HDEP Coolant Level Sensor Advantage

This is an electronic sensor built to OE signal specification, and that matters more here than it does on a bracket or a bushing, because the ECU is reading a signal rather than holding a load. A sensor that reads slightly wrong is in some ways worse than one that has failed outright, since it will chase you with intermittent faults for months. This sensor uses a 2-pin connector.

Before the wrench comes out, do the boring step first and verify the fault with diagnostics. A coolant-level warning can come from a genuinely low system, from a chafed or corroded harness, or from the sensor itself, and only one of those three is fixed by this part. If the harness end turns out to be the problem, you can try pigtail 577.99115R along with it. The sensor weighs 0.1 lbs, drops into the 575.10115 reservoir it was designed for, and covers Freightliner and Western Star chassis running that tank.

At FleetPro Parts & Tires, we keep the interchange straight so the right sensor shows up the first time. This unit is a direct replacement for highly searched industry numbers including Freightliner 06-93316-000 and its unhyphenated form 0693316000.

Vehicle Fitment & Compatibility

This OE-specification electronic sensor is intended for the following commercial applications:

• Make/Model: Freightliner HDEP, and Western Star chassis using this reservoir
• Reservoir: Coolant reservoir 575.10115
• Connector: 2-pin
• Pigtail: 577.99115R, sold separately
• Component Group: Cooling System / Coolant Level Sensing

Direct Replacement & Cross-Reference Numbers:

This Automann coolant level sensor serves as a direct replacement for the following part numbers:

• Freightliner Interchange: 06-93316-000, 0693316000
• Related Automann Numbers: 575.10115 (reservoir), 577.99115R (pigtail)
• Automann Distributor #: 577.46316

Technical Specifications

• Component Type: Coolant Level Sensor
• Connector: 2-pin
• Fits: Freightliner HDEP
• Reservoir: 575.10115
• Pigtail: 577.99115R
• Application: Freightliner, Western Star
• Weight: 0.1 lbs
• Package Dims: 7.5 x 4.35 x 1.25 in
• Warranty: 1-Year FleetPro Warranty
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
