Drive Axle Flange Gasket - 8-Bolt 7in Bolt Circle - Meritor R002341 Volvo/White 453127 180.10613

Put the right gasket back under an 8-bolt drive flange with this Drive Axle Flange Gasket distributed by FleetPro Parts & Tires. It is cut for the 8-hole, 7in bolt circle flange used on Meritor and Volvo/White drive axles, and it is what stands between the lube in that housing and the outside of your wheel. Run a flattened or reused gasket and you get a slow weep at the flange, oil tracking down the rim, and a second teardown you already paid for once. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Correct Bolt Pattern, Clean Seal: The 8-Bolt Drive Flange Gasket Advantage

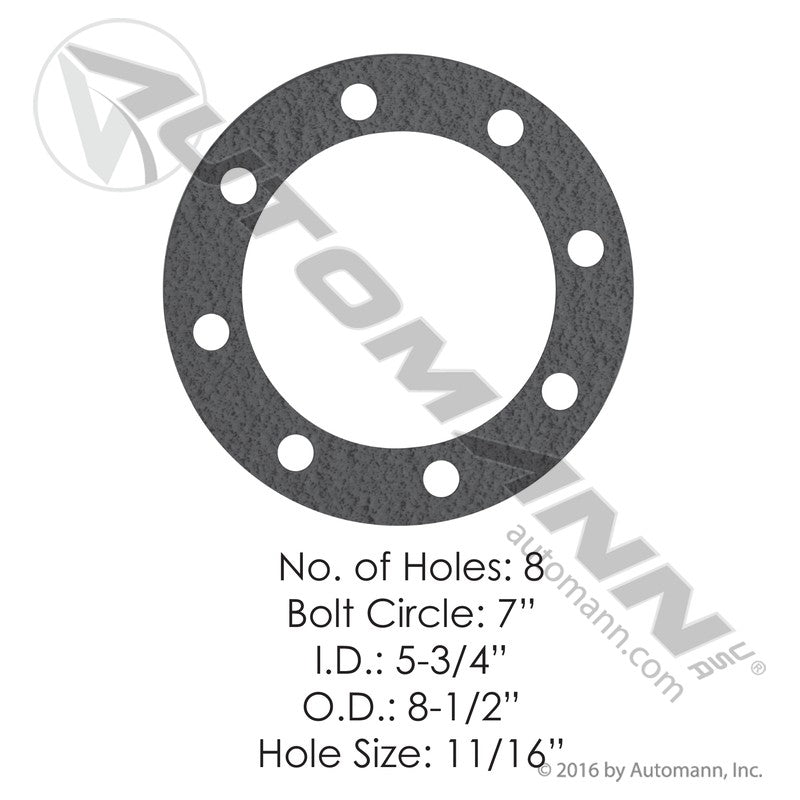

Getting a flange gasket right is entirely about geometry. This one measures 5-3/4in inside diameter and 8-1/2in outside diameter, with eight 11/16in bolt holes on a 7in bolt circle. The holes drop straight over the studs, the inside diameter clears the flange hub, and the outside diameter covers the full sealing face instead of stopping short of it and leaving a path for oil.

Clean both sealing surfaces before the gasket goes on and torque the flange bolts to spec in sequence, so the clamp load lands evenly all the way around the circle. Never reuse the old gasket - once it has been crushed under a flange it will not seal the same way twice, and this is the one part in the job that costs nothing to do properly.

At FleetPro Parts & Tires, we know an axle job is only right when every seal in it is new. This Automann gasket is a direct replacement for highly searched industry numbers including Meritor R002341 and R002435, Volvo/White 453127, Stemco 330-3106 and 330-3111, National GKT1002 and Euclid E-2341.

Vehicle Fitment & Compatibility

This drive axle flange gasket is intended for the following commercial applications:

• Application: Meritor drive axles
• Flange Pattern: 8 bolt holes, 7in bolt circle, 11/16in hole size
• Position: Drive axle flange joint at the wheel end
• Also Covers: Volvo/White, Mack, IHC, GMC, Ford, Chrysler, Euclid, National, Batco, Spicer and Stemco numbers
• Component Group: Air Brake & Wheel / Wheel End Seals & Bearings

Direct Replacement & Cross-Reference Numbers:

This Automann drive flange gasket serves as a direct replacement for the following part numbers:

• Meritor Interchange: 2208W413, 2208X440, R002341, R002435
• Volvo/White Interchange: 453127, 462596
• Stemco Interchange: 330-3106, 330-3111, 3303111
• Euclid Interchange: E-2341, E-2435, E2341, E2435
• National Interchange: GKT1002, GKT1008
• IHC Interchange: 297331C1, 5615242, 56152R2, 974859R1
• GMC Interchange: 2310540, 2362287
• Batco Interchange: 13-7116, 13-7116BG
• Other Interchange: Chrysler 1267751, Ford C6TS1144A, Mack 131SP31, Spicer 7281
• Automann Distributor #: 180.10613

Technical Specifications

• Component Type: Drive Axle Flange Gasket
• Bolt Pattern: 8 bolt holes
• Bolt Circle: 7in
• Bolt Hole Size: 11/16in
• Inner Diameter: 5-3/4in
• Outer Diameter: 8-1/2in
• Application: Meritor
• Weight: 0.02 lbs
• Package Dims: 8.468 x 8.468 x 0.05 in
• UPC: 889626045479
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
