Econoride Rolling Lobe Air Spring - Hendrickson Intraax AA230T Vantraax HKA180 - Firestone 8709 64645 566.ER8709

Bring your trailer back to ride height with this Econoride Rolling Lobe Air Spring distributed by FleetPro Parts & Tires. It carries the load and holds ride height on Hendrickson Intraax AA230T and Vantraax HKA180 trailer air suspensions. A cracked, chafed or leaking air bag drops the deck, leaks air all shift, hammers the freight and takes the shock absorbers with it. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, trailer repair shops, and owner-operators nationwide.

Long Stroke, Low Collapse: The Econoride 8709 Advantage

The number that matters most on this bag is its travel. It collapses to just 6.0in and extends to 19.4in, so it can dump flat at a dock without pinching the bellows against the piston, and still reach full extension when the axle drops into a dip. That range is exactly what the Intraax AA230T and Vantraax HKA180 suspensions are built around.

The plastic base resists the corrosion that eats steel bases from underneath a salted trailer, and the rubber compound shrugs off road salt, spilled lubricants, freezing temperatures and highway debris. At 15.66 lbs this is a substantial bellows, so support the axle before you unbolt the old one, and inspect the mounts and shock absorbers while you are under there — a dead shock will destroy a brand new bag.

At FleetPro Parts & Tires, we know a suspension job is only right when the part is right. This Econoride spring is a direct replacement for highly searched industry numbers including Firestone 8709 and W01-358-8709, Contitech 1010.5-15P460 and 64645, and Goodyear 1R13-159, 1R13-262 and 1R13-362.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket air spring is intended for the following commercial applications:

• Make/Model: Hendrickson Intraax AA230T, Vantraax HKA180
• Position: Trailer air-ride suspension
• Travel: Collapses to 6.0in, extended height 19.4in
• Component Group: Air Suspension / Air Springs

Direct Replacement & Cross-Reference Numbers:

This Econoride air spring serves as a direct replacement for the following part numbers:

• Contitech Interchange: 1010.5-15P460, 64645
• Firestone Interchange: 8709, W013588709, W01-358-8709
• Goodyear Interchange: 1R13159, 1R13-159, 1R13262, 1R13-262, 1R13362, 1R13-362
• Automann Distributor #: 566.ER8709

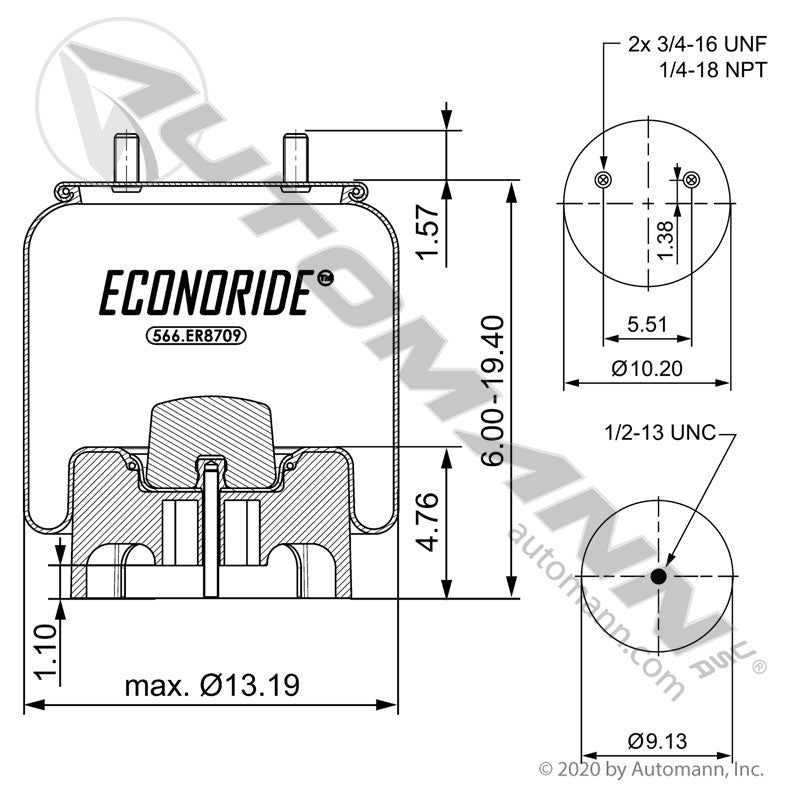

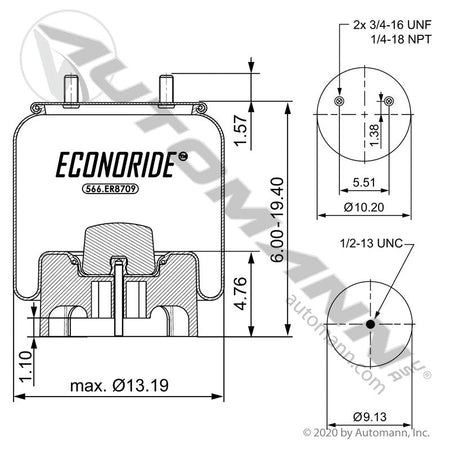

Technical Specifications

• Component Type: Rolling Lobe Air Spring
• Base Material: Plastic
• Collapsed Height: 6.0 in
• Extended Height: 19.4 in
• Weight: 15.66 lbs
• Package Dims: 10.75 x 10.75 x 12 in
• Product Level: Fleet Value Aftermarket
• Brand: Econoride (Distributed by FleetPro Parts & Tires)
