Econoride Rolling Lobe Air Spring - Steel Base Hendrickson Trailer - 8755 1R13-124 566.ER8755S

Get the trailer sitting level again with this Econoride Rolling Lobe Air Spring distributed by FleetPro Parts & Tires. The bellows is the part that actually carries the load and maintains ride height in a Hendrickson trailer air-ride suspension, and once it cracks, chafes or starts leaking you are living with a sagging trailer, an air system that never stops cycling, a harsh ride that beats up the freight, and shock absorbers wearing out early trying to control an axle the bag is no longer supporting. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, trailer repair shops, and owner-operators nationwide.

Ride Height Restored: The Econoride Air Spring Advantage

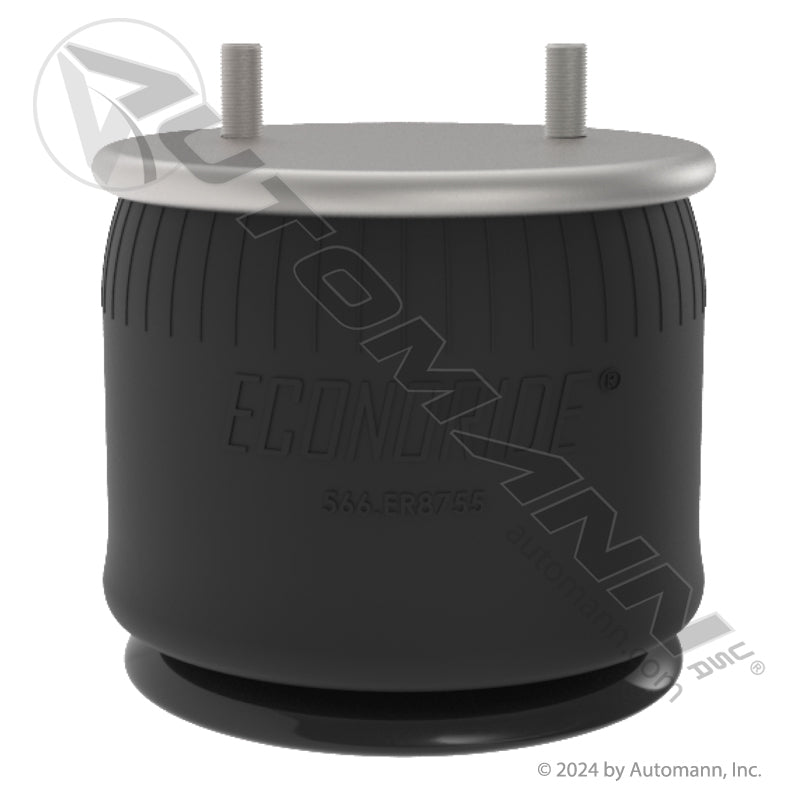

This is a rolling lobe air spring on a steel base — the piston-style bag Hendrickson trailer air suspensions are built around. The rolling lobe rolls smoothly along the piston as the axle travels, soaking up road shock instead of transmitting it straight into the frame rails, and the steel base gives a rigid mounting surface underneath a fully loaded trailer. What you get back on the road is a level deck, protected cargo, and a suspension working through the travel it was designed for.

The Econoride line is the working-price air bag in the FleetPro catalog, and at FleetPro Parts & Tires we know an air suspension repair is only right when the bag is right. This one is a drop-in replacement for the highly searched industry numbers 8755, 1R13-124 and 64397, and is also listed as AB1DK25B-8755. Air springs live in pairs, so when one bag has failed it is worth looking hard at its partner and at the shocks on the same axle before the trailer goes back into service.

Vehicle Fitment & Compatibility

This air spring is intended for the following commercial application:

• Make/Model: Hendrickson trailer air-ride suspensions
• Position: Trailer axle air suspension, load-carrying air spring
• Spring Type: Rolling lobe with steel base
• Component Group: Air Suspension / Air Springs

Direct Replacement & Cross-Reference Numbers:

This Econoride air spring serves as a direct replacement for the following part numbers:

• Additional Interchange: 8755, 1R13-124, 64397, AB1DK25B-8755
• Automann Distributor #: 566.ER8755S

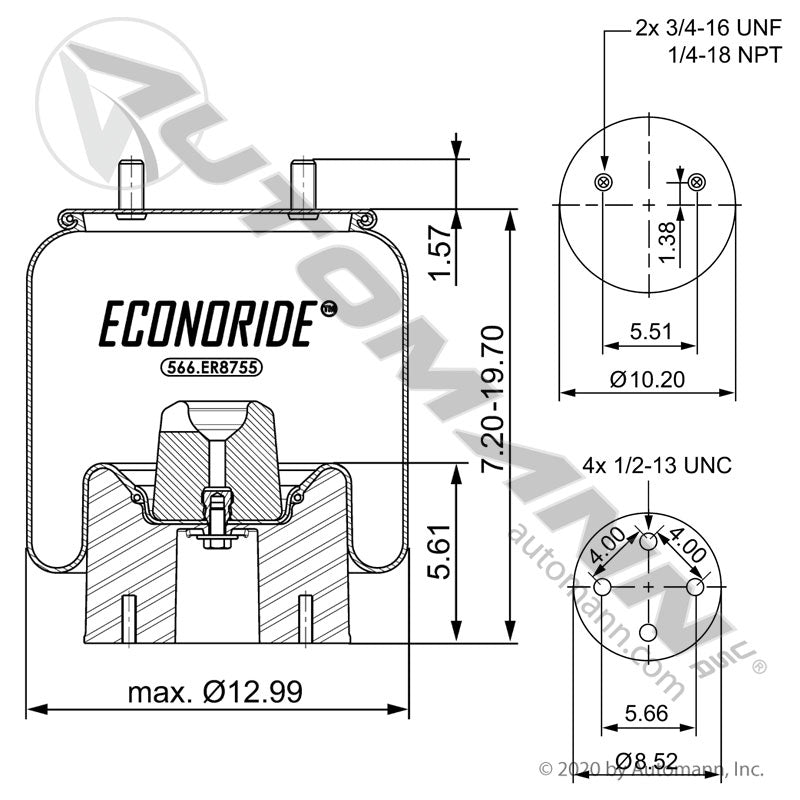

Technical Specifications

• Component Type: Rolling Lobe Air Spring
• Base Material: Steel
• Product Line: Econoride
• Fits: Hendrickson trailer air suspension
• Equivalent: 8755 / 1R13-124 / 64397
• Condition: New
• Warranty: 1-Year FleetPro Warranty
• UPC: 889626693311
• Brand: Econoride (Distributed by FleetPro Parts & Tires)
