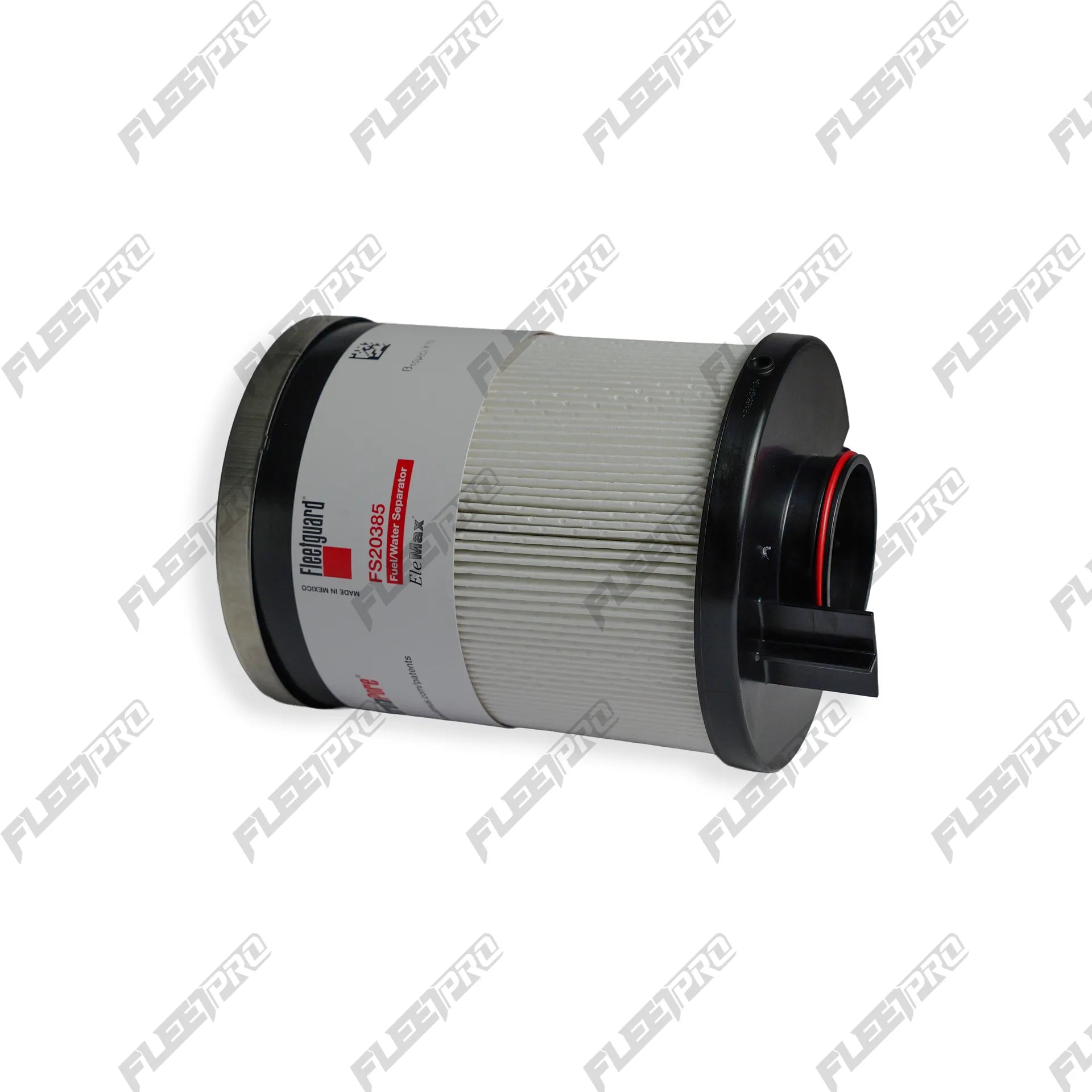

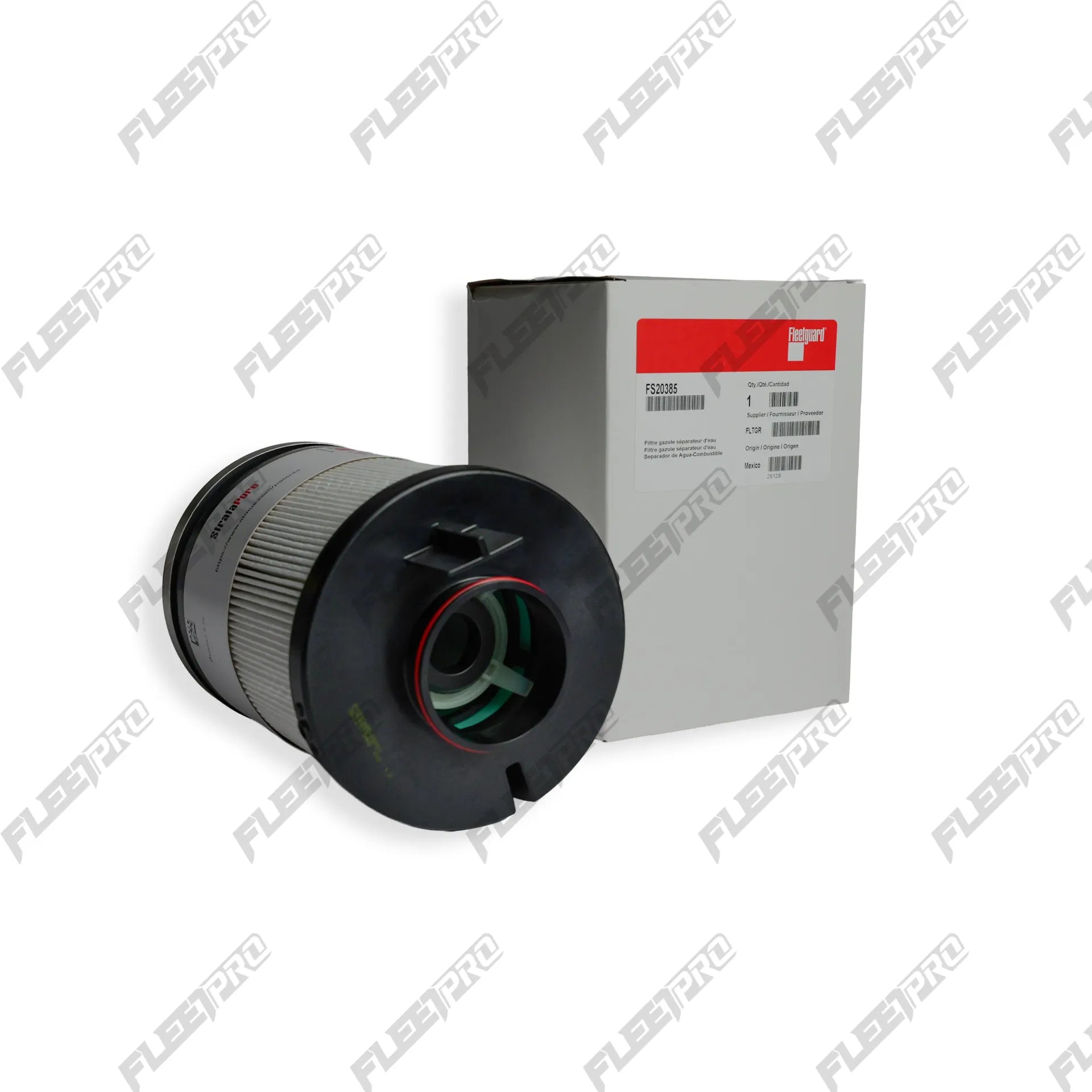

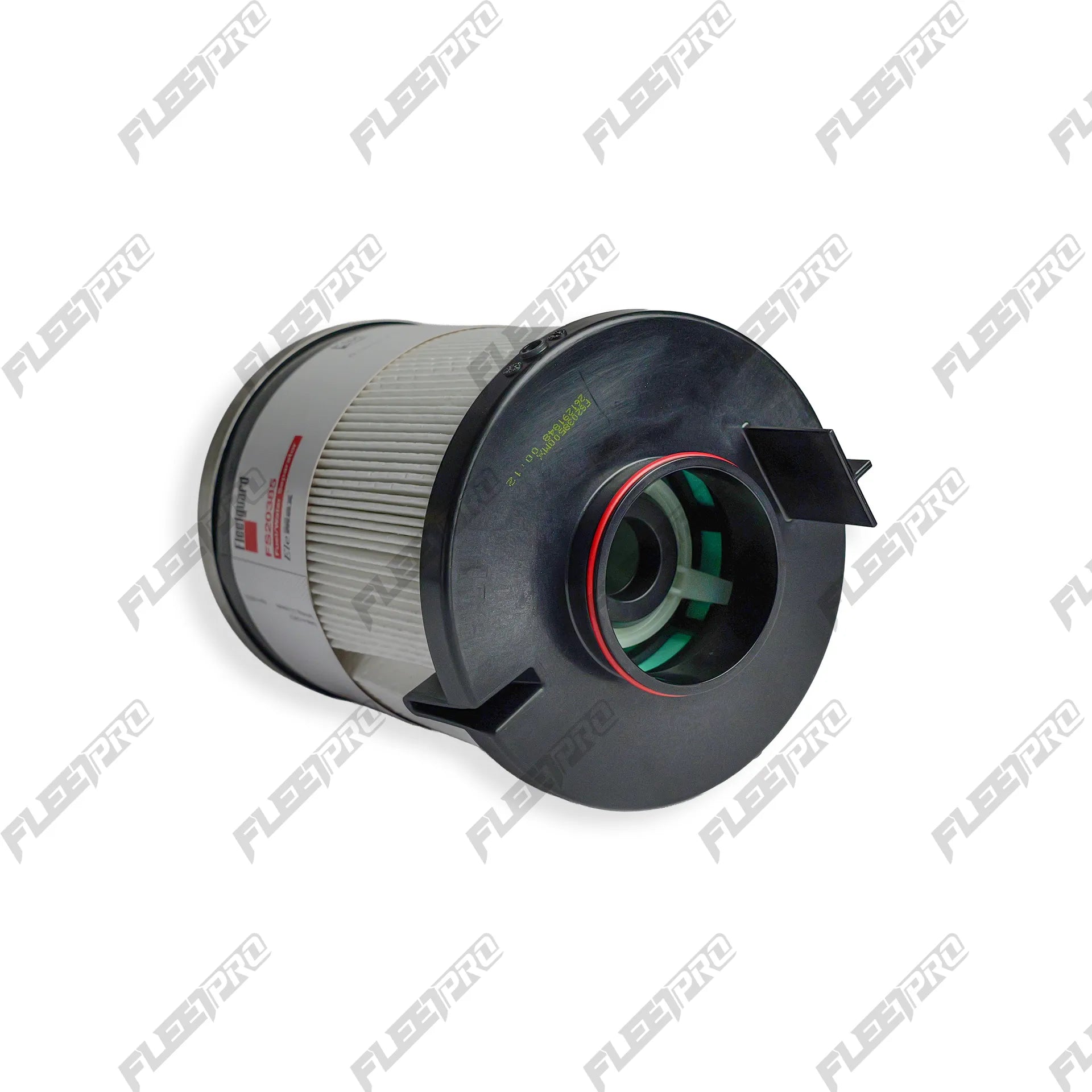

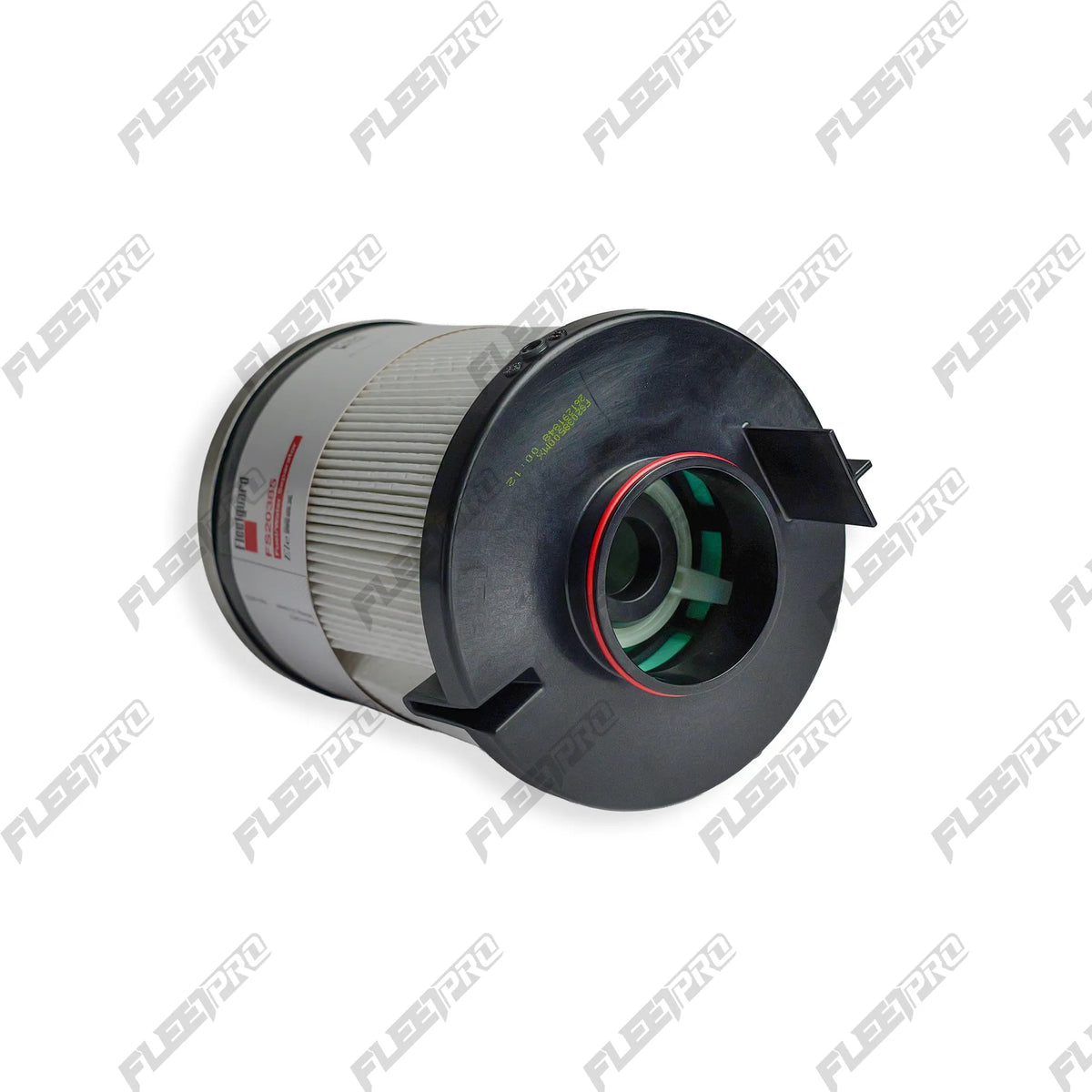

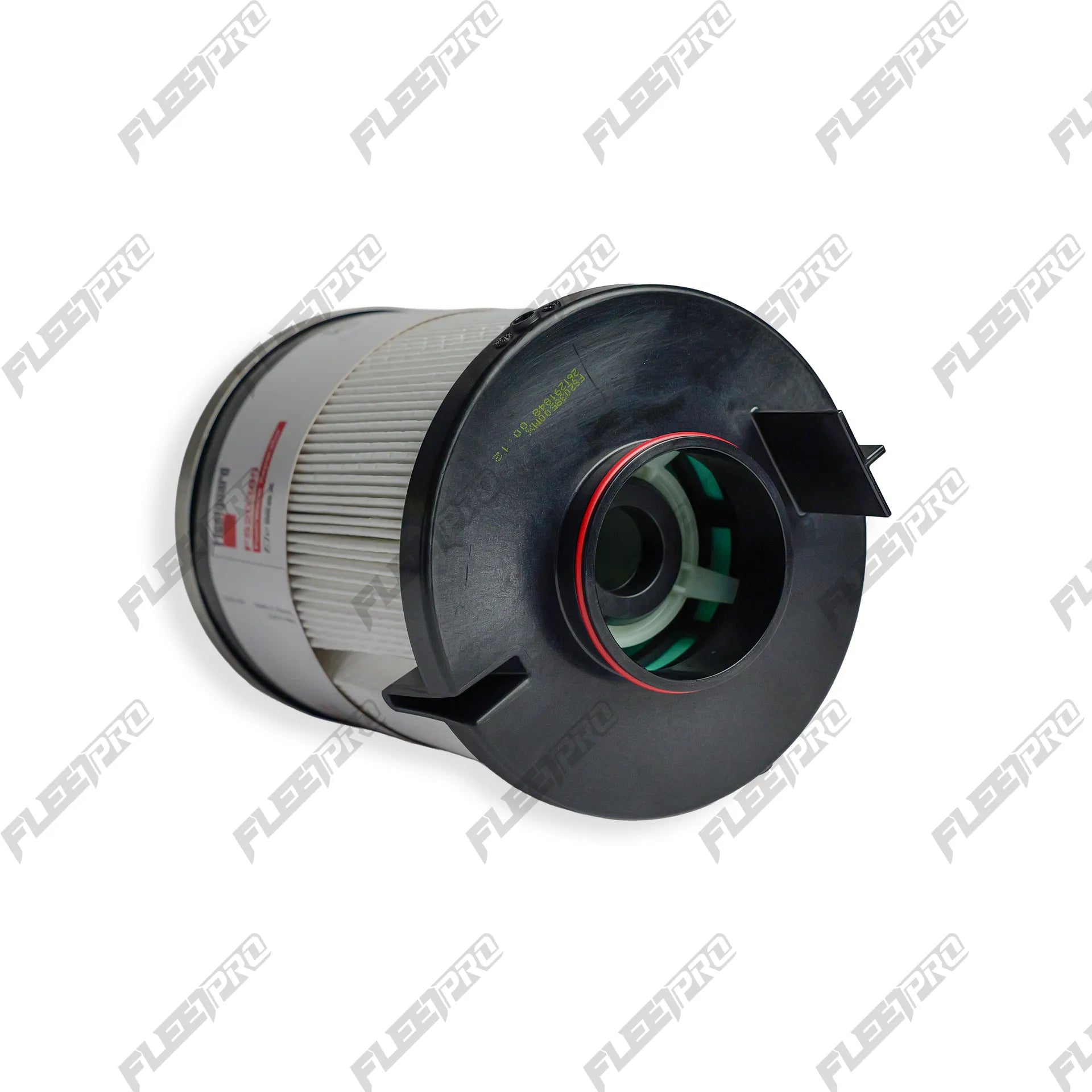

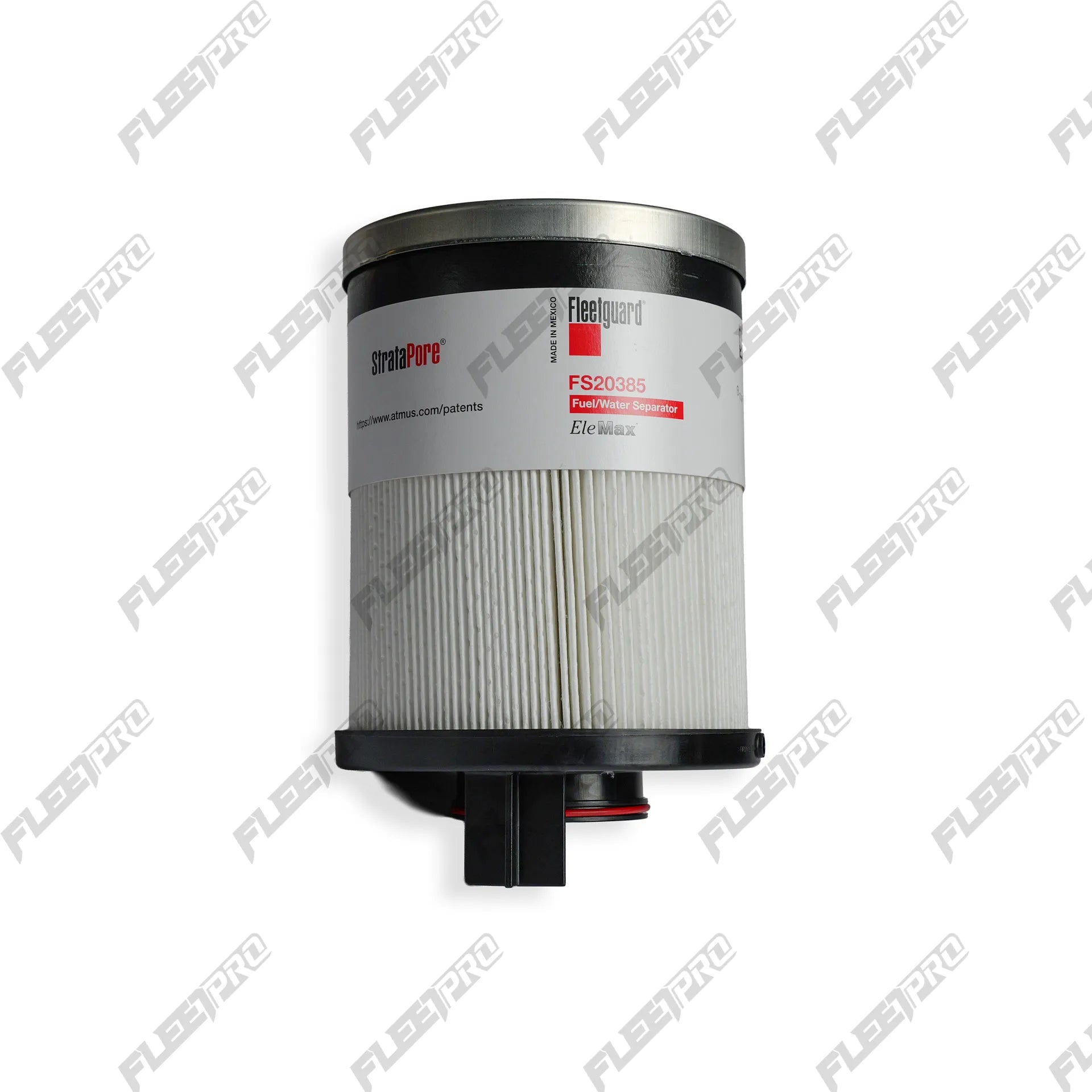

Fleetguard EleMax Fuel/Water Separator - Fuel Pro 485 Regular 9.04 in Cartridge - Detroit A0001485007 Baldwin PF46145 FS20385

If your parts book still points at a discontinued cartridge, this is the number that ends the search. The Fleetguard FS20385 is the current-production EleMax cartridge fuel/water separator for Fuel Pro 485 fuel processor housings, and it replaces the now-obsolete Fleetguard FS20083 in the very same housing. It strips free and emulsified water out of the diesel before it reaches the injectors. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

The Obsolete Number Solved: The Fuel Pro 485 EleMax Advantage

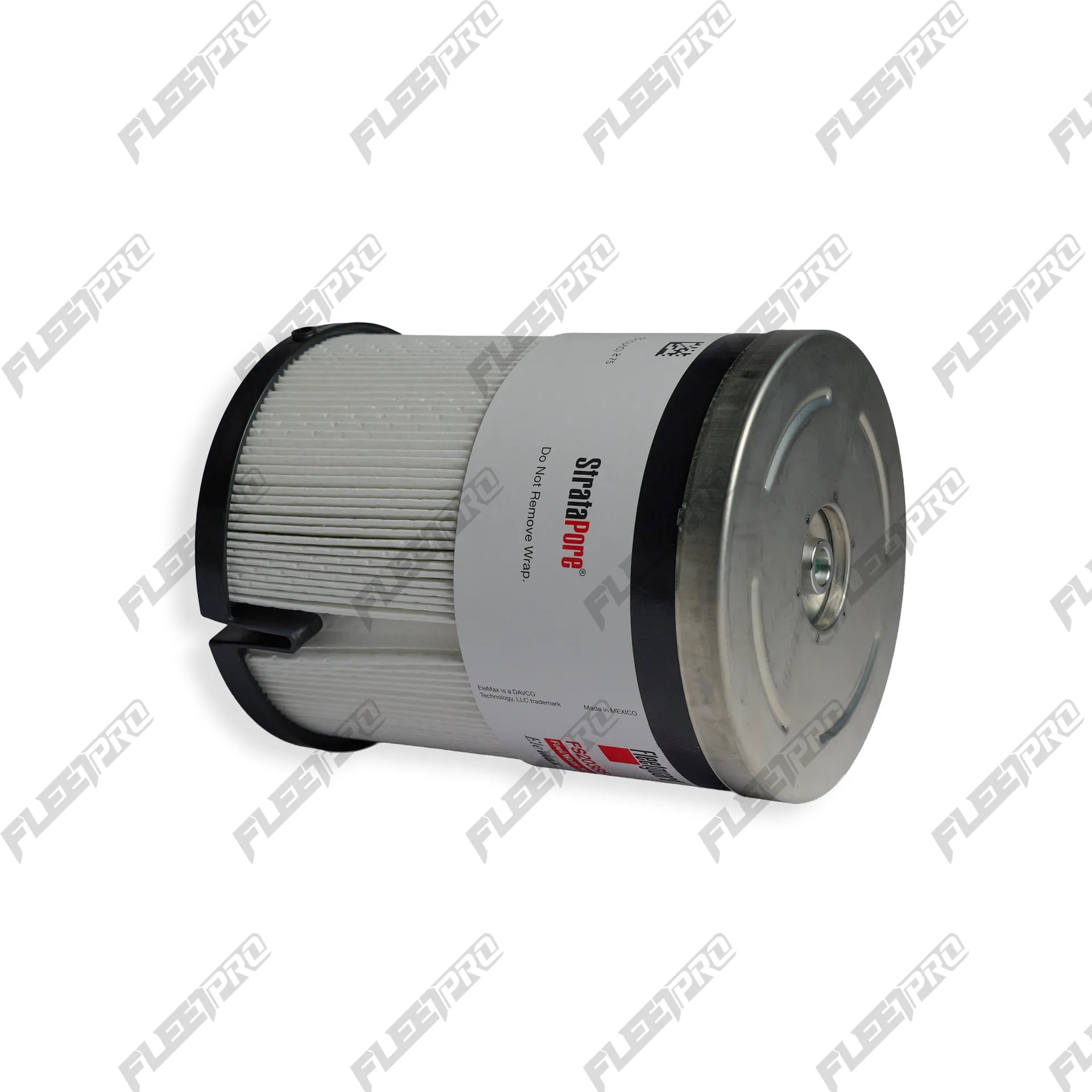

The element uses StrataPore multi-layer coalescing media rated 6.9 micron absolute / 10 micron nominal, so the water and fine particulate that cause low power, hard starting and injector damage are pulled out rather than passed along. A patented internal control valve routes fuel through the full element, which is how you get the entire rated life instead of a filter that plugs at one end. This is the regular housing size at roughly 9.04 in (229 mm) tall and 6.06 in (154 mm) largest OD, with an approximate 2.46-2.61 in (62-66 mm) gasket and inside diameter, so confirm your housing before ordering.

At FleetPro Parts & Tires, we keep the element that covers both engine families on this housing: Cummins ISX12, ISX15 and X15, and Detroit DD13, DD15 and DD16. It is a direct replacement for highly searched industry numbers including Baldwin PF46145, Donaldson P580710, Luber-Finer L20083F, Detroit Diesel A0001485007 and A0000905051, and Freightliner A485007. Change it at the scheduled fuel service or when the Fuel Pro water-in-fuel indicator signals water in the bowl.

Vehicle Fitment & Compatibility

This OE-grade separator element is intended for the following commercial applications:

• Housing: Fuel Pro 485 fuel processor, regular 9.04 in size
• Engines: Cummins ISX12, ISX15 and X15
• Engines: Detroit DD13, DD15 and DD16
• Replaces: Fleetguard FS20083 in the same housing
• Component Group: Filtration / Fuel Filters

Direct Replacement & Cross-Reference Numbers:

This Fleetguard separator element serves as a direct replacement for the following part numbers:

• Fleetguard Interchange: FS20083 (obsolete, same housing)
• Baldwin Interchange: PF46145
• Donaldson Interchange: P580710
• Luber-Finer Interchange: L20083F
• Detroit Diesel Interchange: A0001485007, A0000905051
• Freightliner Interchange: A485007
• Fleetguard Part #: FS20385

Technical Specifications

• Component Type: Cartridge Fuel/Water Separator Element (EleMax)
• Housing: Fuel Pro 485 fuel processor
• Media: StrataPore Multi-Layer Coalescing Media
• Efficiency: 6.9 micron absolute / 10 micron nominal
• Height: approx. 9.04 in (229 mm)
• Largest OD: approx. 6.06 in (154 mm)
• Gasket / Inside ID: approx. 2.46-2.61 in (62-66 mm)
• Features: Patented internal control valve for full element life
• Replaces: Fleetguard FS20083 (obsolete)
• Product Level: OE (Original Equipment)
• Brand: Fleetguard (Distributed by FleetPro Parts & Tires)
