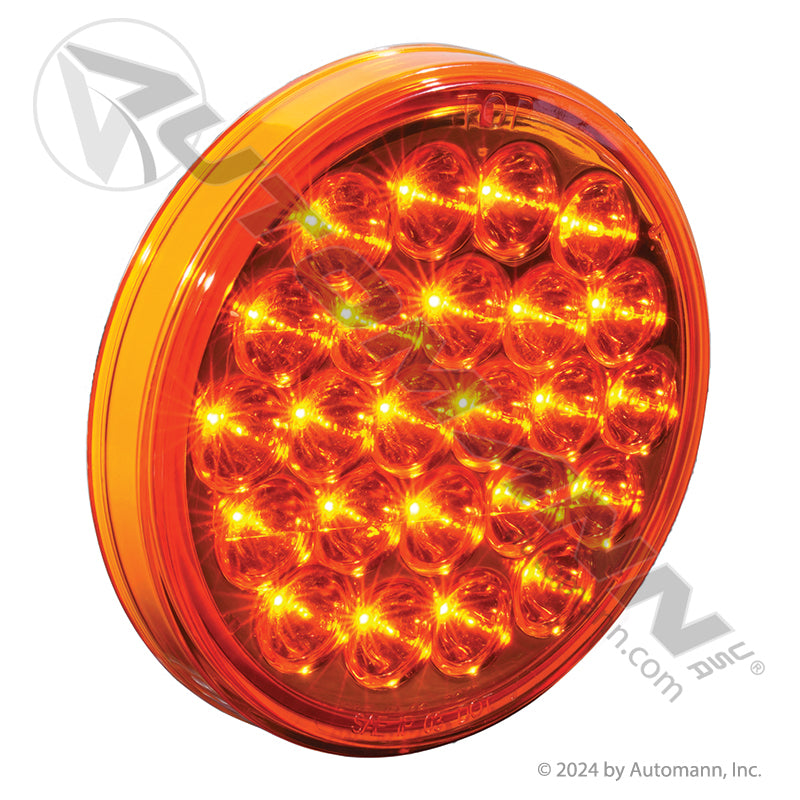

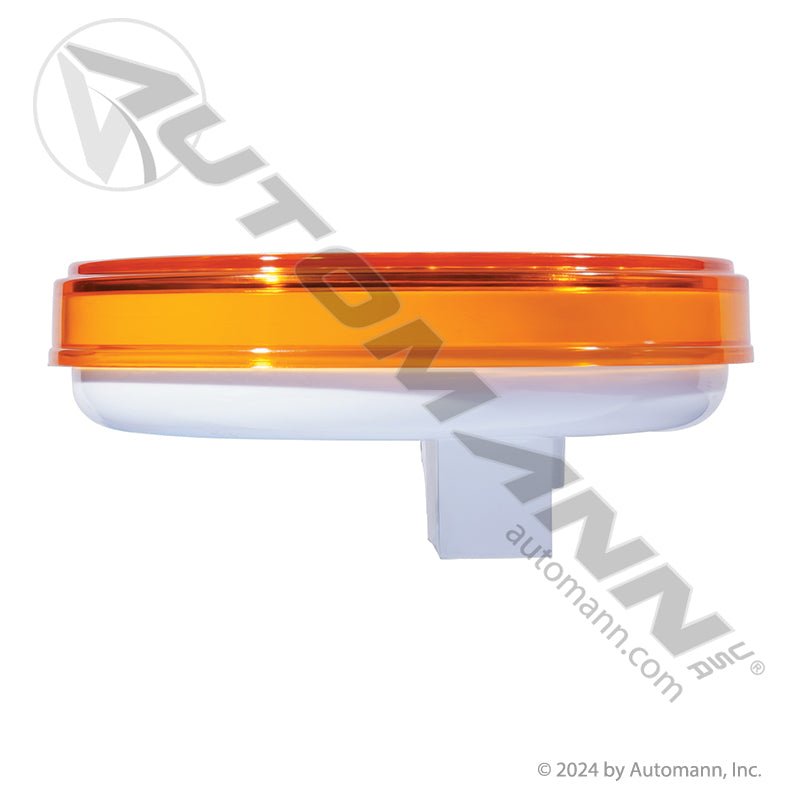

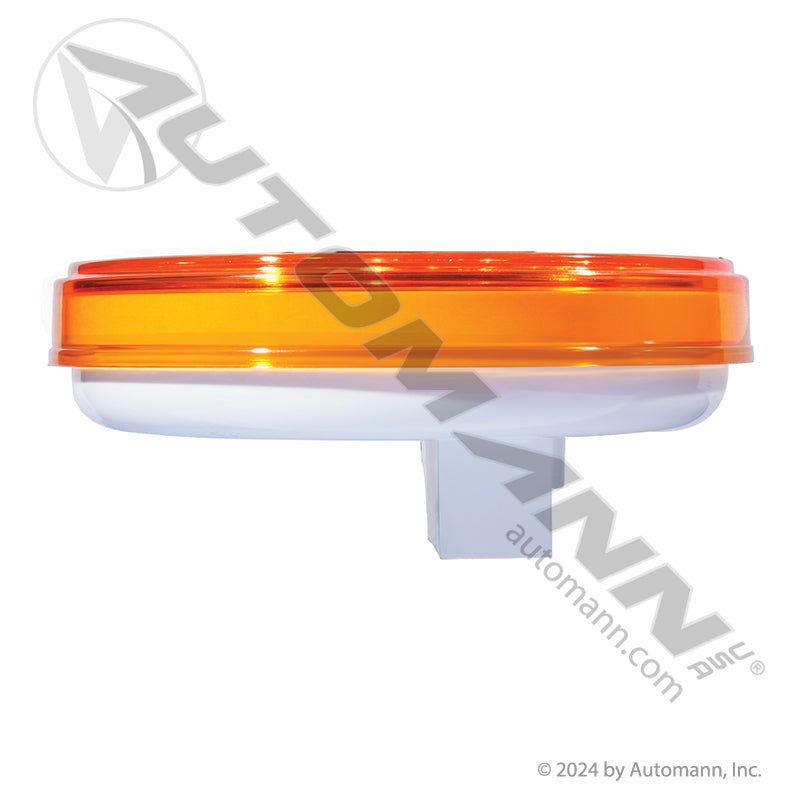

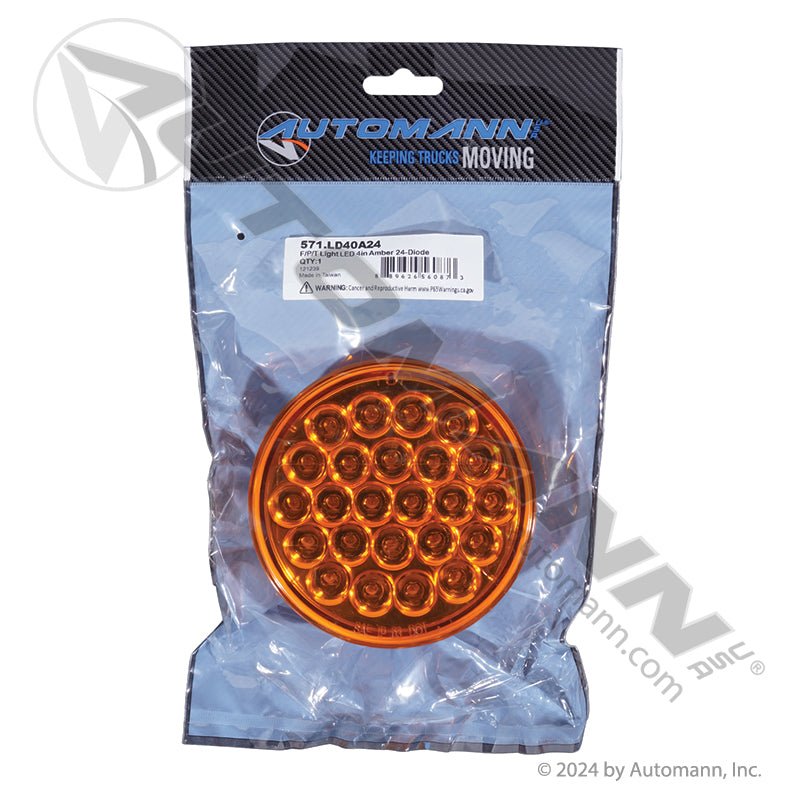

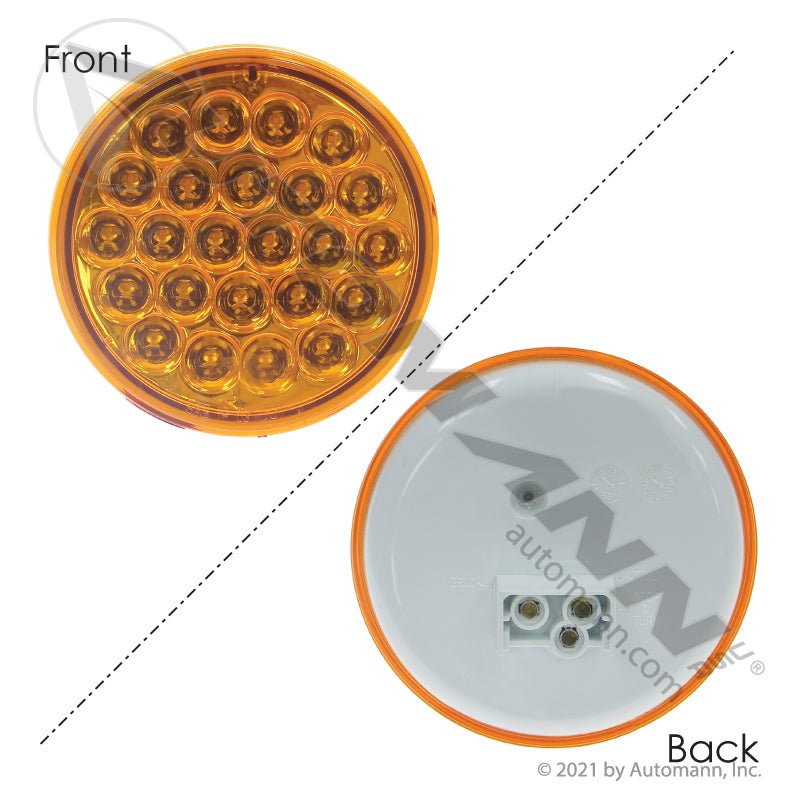

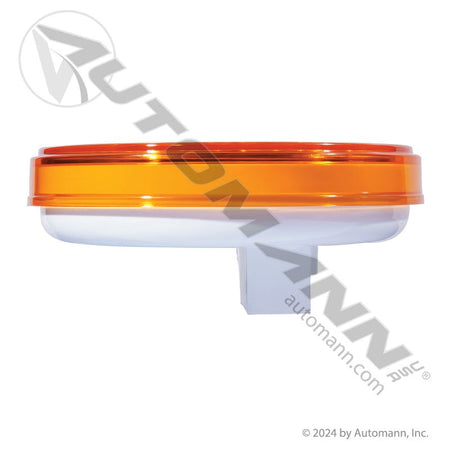

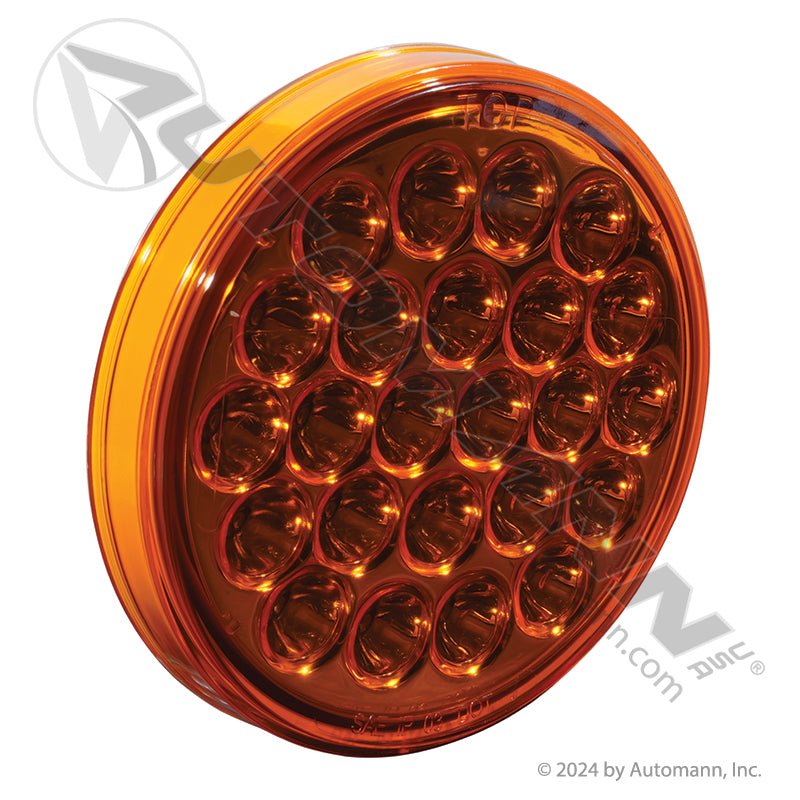

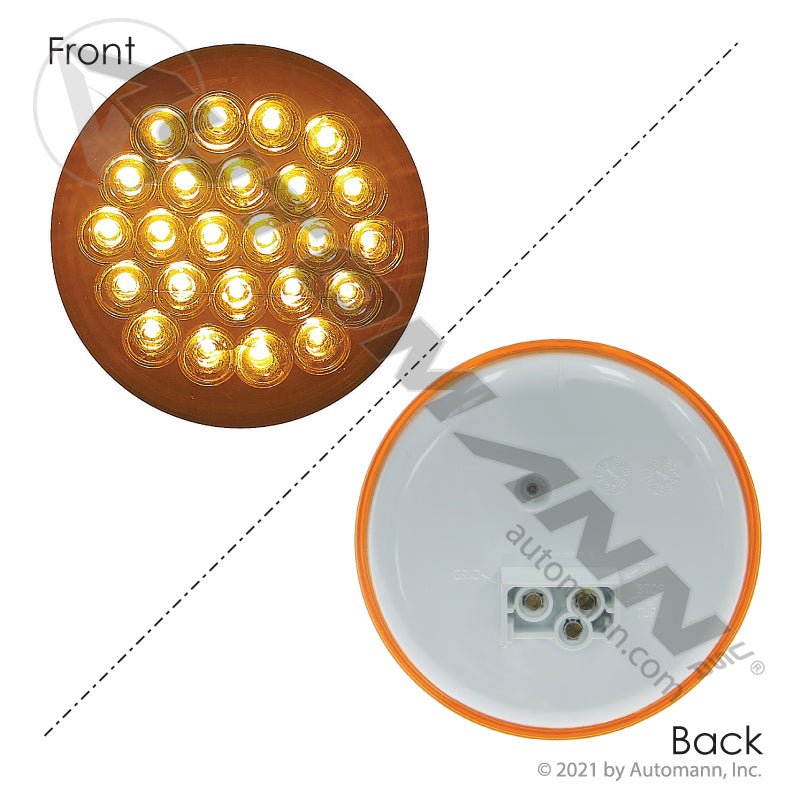

Front Park Turn LED Light - 4 Inch Amber 24-Diode with Reflector - Grand General 78270 571.LD40A24
Front Park Turn LED Light - 4 Inch Amber 24-Diode with Reflector - Grand General 78270 571.LD40A24
Automann

Front Park Turn LED Light - 4 Inch Amber 24-Diode with Reflector - Grand General 78270 571.LD40A24

In stock
SKU: 571.LD40A24
$15.94
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - trucks and trailersFront corner lighting - front, park and turnDirect replacement into standard grommets and flanges12 Volt DC electrical systems
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

5 cross-refs
Grand General 78270 UBLights MTLED4000-24A UBLights MTLED400024A Uni-Bond LED4000-24A Uni-Bond LED400024A
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Put the front corner of the truck back on the road-legal side of a DOT inspection with this 4in amber front, park and turn LED lamp distributed by FleetPro Parts & Tires. It carries 24 high-output diodes behind an amber lens and includes a built-in reflector, so the corner stays visible whether the lamp is lit or the truck is parked dark on a shoulder. A dim or dead front lamp is an inspection failure and, worse, the reason a car turning across your bow never saw the corner of the tractor. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Seen From The Corner: The 24-Diode Amber LED Advantage

Twenty-four diodes is a high count for a 4in lamp, and the payoff is a bright, even face rather than a handful of hot spots - plus the instant-on response an LED gives a turn signal, where an incandescent bulb has to warm up before the car beside you registers the flash. It runs on 12 Volt and meets FMVSS 108 with SAE code IP, the front park and turn classification, so it satisfies the inspector as well as the driver.

Installation is a grommet mount, a direct drop into the standard grommets and flanges already on the truck or trailer, and the whole lamp weighs 0.45 lbs. If your fleet is still running incandescent in this position, Automann's matching bulb-type lamp is 571.LG40A - but moving the corner to LED is how you stop pulling the same lamp apart every winter. This unit is a direct replacement for highly searched industry numbers including Grand General 78270, UBLights MTLED4000-24A and MTLED400024A, and Uni-Bond LED4000-24A and LED400024A.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket LED light uses a universal design intended for the following commercial applications:

  • Make/Model: Universal - trucks and trailers
  • Position: Front corner lighting - front, park and turn
  • Mounting Style: Grommet mount, direct replacement into standard grommets and flanges
  • System Requirement: 12 Volt DC electrical systems
  • Component Group: Exterior Lighting / Front, Park & Turn Lamps

Direct Replacement & Cross-Reference Numbers:

This Automann LED light serves as a direct replacement for the following part numbers:

  • Grand General Interchange: 78270
  • UBLights Interchange: MTLED4000-24A, MTLED400024A
  • Uni-Bond Interchange: LED4000-24A, LED400024A
  • Automann Distributor #: 571.LD40A24

Technical Specifications

  • Component Type: Front / Park / Turn LED Light
  • Size: 4in
  • Diode Count: 24 LED
  • Lens Color: Amber
  • Reflector: Built-in
  • Mount: Grommet
  • Voltage: 12 Volt
  • Compliance: FMVSS 108, SAE Code IP
  • Incandescent Equivalent: 571.LG40A
  • Weight: 0.45 lbs
  • Package Dims: 4.5 x 4.5 x 2 in
  • Condition: New
  • Warranty: 1-Year FleetPro Warranty
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • 24-Diode Output: A high diode count for a 4in lamp gives a bright, even lit face instead of a few hot spots on the lens.
  • Built-In Reflector: Keeps the front corner visible when the lamp is unlit and the truck is parked on a dark shoulder.
  • Instant-On For Turn Signals: LEDs light the moment the switch closes, with none of the warm-up delay of an incandescent bulb.
  • FMVSS 108 With SAE Code IP: Carries the front park and turn classification an inspector looks for.
  • Drops Into Standard Grommets: Grommet mount on 12 Volt, so it replaces the existing corner lamp without modifying the panel.
Specifications
Component Type
Front / Park / Turn LED Light
Size
4in
Diode Count
24 LED
Lens Color
Amber
Reflector
Built-in
Mount
Grommet
Voltage
12 Volt
Compliance
FMVSS 108, SAE Code IP
Incandescent Equivalent
571.LG40A
Weight
0.45 lbs
Package Dims
4.5 x 4.5 x 2 in
Condition
New
Warranty
1-Year FleetPro Warranty
UPC
889626560873
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - trucks and trailers, Front corner lighting - front, park and turn, Direct replacement into standard grommets and flanges, 12 Volt DC electrical systems. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Grand General 78270, UBLights MTLED4000-24A, UBLights MTLED400024A, Uni-Bond LED4000-24A, Uni-Bond LED400024A.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
