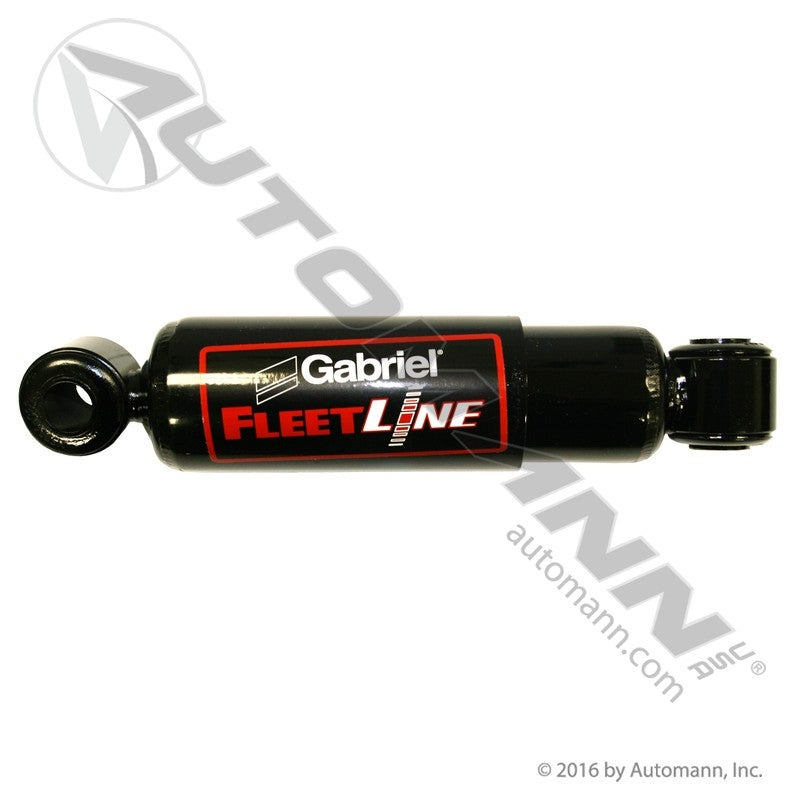

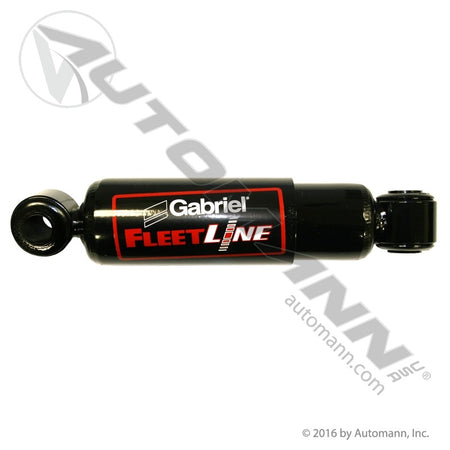

Gabriel OE Trailer Shock Absorber - Hendrickson & Reyco Air Suspension - 85045 S23651 Volvo/White 3945290 A85045

This OE-grade Gabriel Shock Absorber, distributed by FleetPro Parts & Tires, is the compact damper that shows up under Hendrickson, Reyco Granning, Ridewell and SAF Holland/Neway trailer suspensions - most often searched by its Hendrickson number, S23651. Trailer shocks are the maintenance item everybody forgets, and the bill arrives as cupped trailer tires, hammered bushings and cargo that gets shaken harder than it should. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, trailer repair shops, and owner-operators nationwide.

Short-Stroke Trailer Damping: The Gabriel 85045 Advantage

This is a short-travel unit at 14.52in extended and 10.12in collapsed, which is exactly the range a tightly packaged trailer suspension hanger allows. It uses the standard ES36 eye mount (0.75in ID x 1.75in sleeve) at both the upper and lower end, so it goes back into the original brackets without adapters. A dust tube shields the rod from the road grit and salt spray that a trailer damper lives in year-round, and a recoil cutoff controls the rebound stroke so the axle is not thrown back down after every bump.

At FleetPro Parts & Tires, we know a trailer that rides well is a trailer that keeps its tires. Replace shocks in pairs across the axle so both sides damp evenly. This Gabriel damper is a direct replacement for highly searched industry numbers including Gabriel 85045, Hendrickson S23651, Hendrickson B22311, Meritor 85045 and Volvo/White 3945290.

Vehicle Fitment & Compatibility

This OE-grade damper is intended for the following commercial applications:

• Make/Model: Hendrickson trailer air suspensions
• Also Listed: Reyco Granning, Ridewell, SAF Holland/Neway, Wabash and Watson and Chalin
• Position: Trailer suspension shock absorber
• Mounting Style: Eye, ES36 (0.75in ID x 1.75in sleeve), upper and lower
• Component Group: Suspension & Steering / Shock Absorbers

Direct Replacement & Cross-Reference Numbers:

This Gabriel shock absorber serves as a direct replacement for the following part numbers:

• Gabriel Interchange: 85045
• Hendrickson Interchange: S23651, S-23651, S22311, S22862, B22311, B22862, B23651, 665733, 665760, 665767
• Reyco Interchange: 665830, 70213501
• Other Interchange: Holland 665454, Ingersoll 65351103, Meritor 85045, Ridewell 1270007, Volvo/White 3945290
• Automann Distributor #: A85045

Technical Specifications

• Component Type: Shock Absorber
• Extended Length: 14.52in
• Collapsed Length: 10.12in
• Dust Tube: Yes
• Recoil Cutoff: Yes
• Upper Mount: Eye, ES36 (0.75in ID x 1.75in sleeve)
• Lower Mount: Eye, ES36 (0.75in ID x 1.75in sleeve)
• Weight: 5.3 lbs
• Package Dims: 22.38 x 2.85 x 2.85 in
• Product Level: OEM
• Brand: Gabriel (Distributed by FleetPro Parts & Tires)
