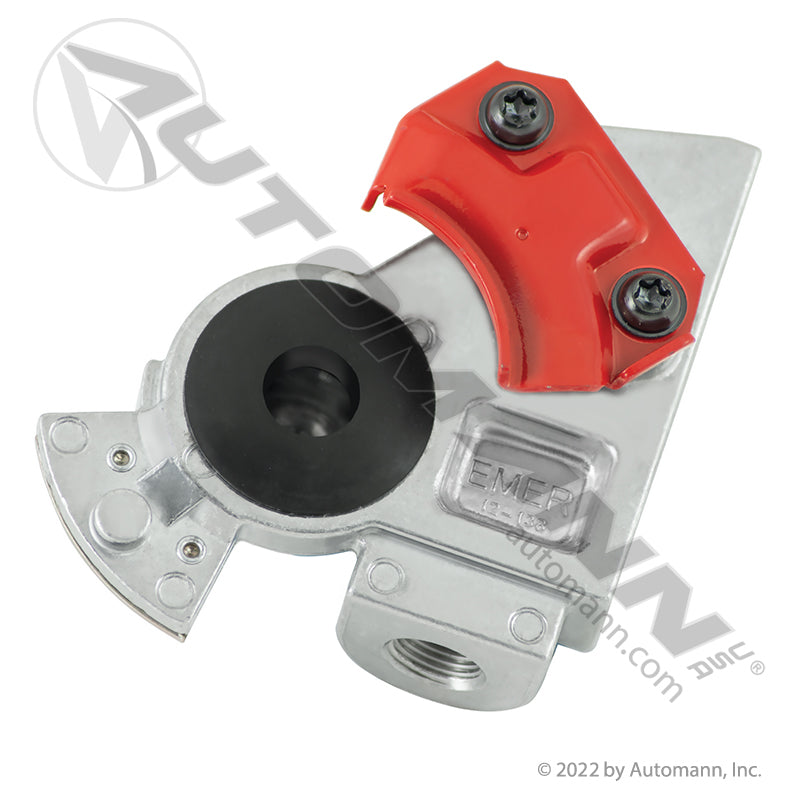

Gladhand Emergency Red - 38 Degree Angle Bottom Mount Trailer - Grote 81-0001-38R Phillips 12-138 PHI12-138
Regular price
$11.58
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Commercial trailers - nose/bottom mountTrailer-side emergency (red) air brake line38 degree angle, bottom mount (trailer side)Connects service (blue) and emergency (red) air lines
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
9 cross-refsGrote 81-0001-38R Grote 81000138R Phillips 12-138 Phillips 12138 Tectran 9216 Tectran 16087 Tramec Sloan 16087 Tramec Sloan 56261 Velvac 035093
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Get the trailer supply line coupling right with this OE Phillips Red Emergency Gladhand distributed by FleetPro Parts & Tires. It is the 38 degree angle, bottom mount version built for the trailer side, carrying the emergency (red) air line that charges the trailer and lets the spring brakes release. A cracked gladhand body or a worn seal seat bleeds the supply side down, and a trailer that will not hold air is a trailer that will not roll, no matter how good the rest of the brake system is. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, trailer repair shops, and owner-operators nationwide.
Supply Air That Stays Put: The Phillips Angle Mount Gladhand Advantage
This is a genuine Phillips gladhand built to SAE J318, so it couples correctly with every standard gladhand on the road, tractor or trailer. The 38 degree angle, bottom mount geometry is what makes it a trailer-side part: the body sits at the angle the nose plate expects, and the 3/8in NPT female port faces down so the air line drops away cleanly instead of being forced into a stress bend right at the fitting.
The red body and the offset locking lugs are the industry standard that stops the emergency line from being coupled to the blue service line. Replace the whole gladhand rather than just the seal when the casting is cracked or the seal seat is worn flat, because a chewed-up seat will destroy a fresh seal in weeks and you will be back under the trailer chasing the same leak. At FleetPro Parts & Tires, we know air brake work has to pass inspection the first time. This Phillips gladhand is a direct replacement for highly searched industry numbers including Grote 81-0001-38R, Phillips 12-138, Tectran 16087, Tramec Sloan 56261 and Velvac 035093.
Vehicle Fitment & Compatibility
This OE-supplier gladhand is intended for the following commercial applications:
- Make/Model: Universal - commercial trailers and Class 8 tractor-trailer air systems
- System: Connects the service (blue) and emergency (red) air lines at the tractor-trailer hookup
- Mount: 38 degree angle, bottom mount, for use on the trailer
- Port: 3/8in NPT female, bottom
- Component Group: Air Brake & Wheel / Gladhands & Accessories
Direct Replacement & Cross-Reference Numbers:
This Phillips gladhand serves as a direct replacement for the following part numbers:
- Grote Interchange: 81-0001-38R, 81000138R
- Phillips Interchange: 12-138, 12138
- Tectran Interchange: 9216, 16087
- Tramec Sloan Interchange: 16087, 56261
- Velvac Interchange: 035093
- Automann Distributor #: PHI12-138
Technical Specifications
- Component Type: Emergency (Red) Gladhand Coupling
- Line: Red (emergency)
- Port: 3/8in NPT female, bottom
- Mount: 38 degree angle, bottom mount (trailer side)
- Compliance: SAE J318
- Weight: 0.72 lbs
- Package Dims: 6 x 4 x 3 in
- UPC: 889626600111
- Product Level: OEM
- Brand: Phillips (Distributed by FleetPro Parts & Tires)
Key features
- Trailer-Side Angle Mount: The 38 degree angle bottom mount matches the trailer nose plate, so the coupling sits where the driver reaches for it.
- Genuine Phillips OE Build: An Original Equipment gladhand, not a thin copy that cracks the first winter it gets dropped on a deck plate.
- SAE J318 Coupling: Mates correctly with every standard gladhand on the road, so it works on any tractor that backs under the trailer.
- Bottom 3/8in NPT Port: The air line drops away cleanly instead of being forced into a stress bend right at the fitting.
- Holds the Supply Side: A sound casting and a fresh seal seat stop the emergency line leak that keeps the spring brakes from releasing.
Specifications
Component Type
Emergency (Red) Gladhand Coupling
Line
Red (emergency)
Port
3/8in NPT female, bottom
Mount
38 degree angle, bottom mount (trailer side)
Compliance
SAE J318
Weight
0.72 lbs
Package Dims
6 x 4 x 3 in
UPC
889626600111
Product Level
OEM
