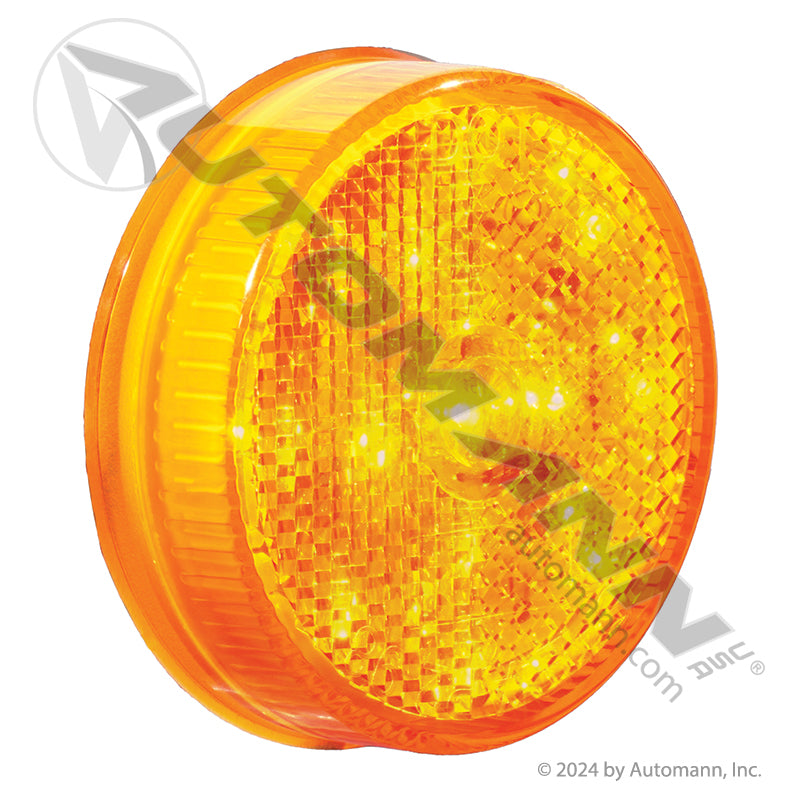

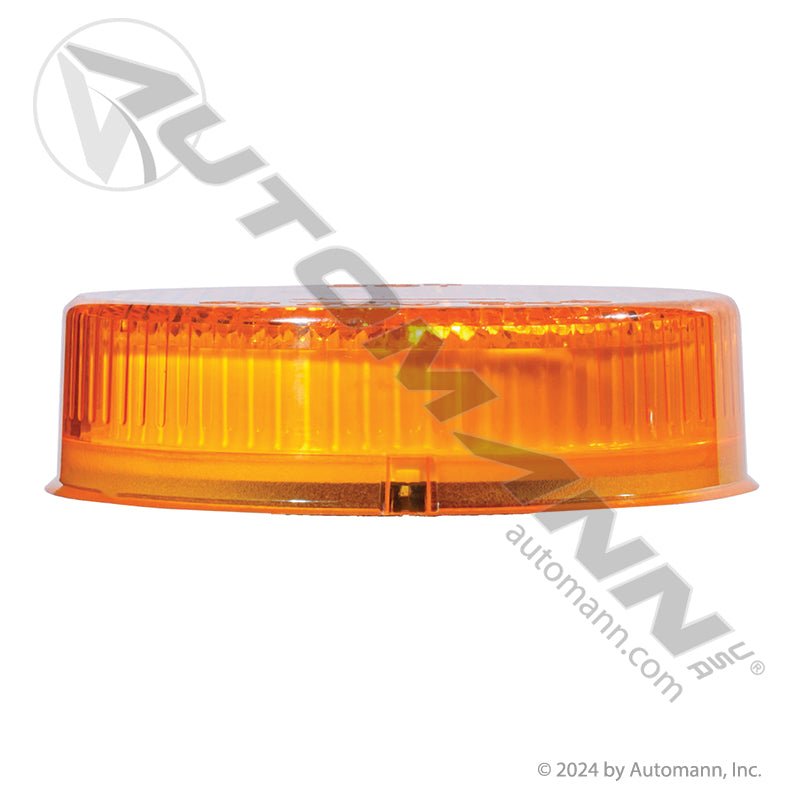

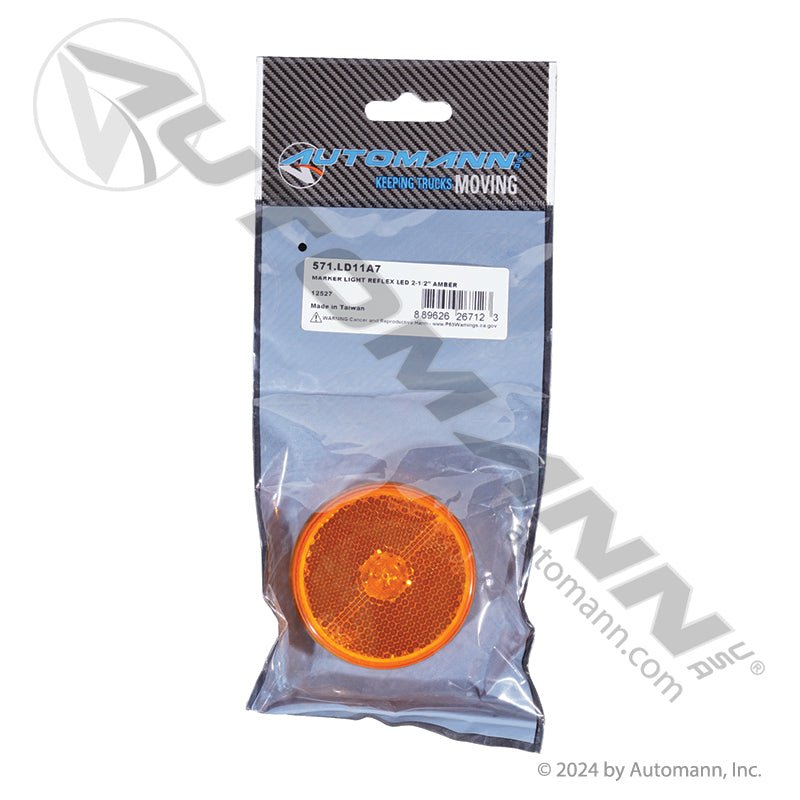

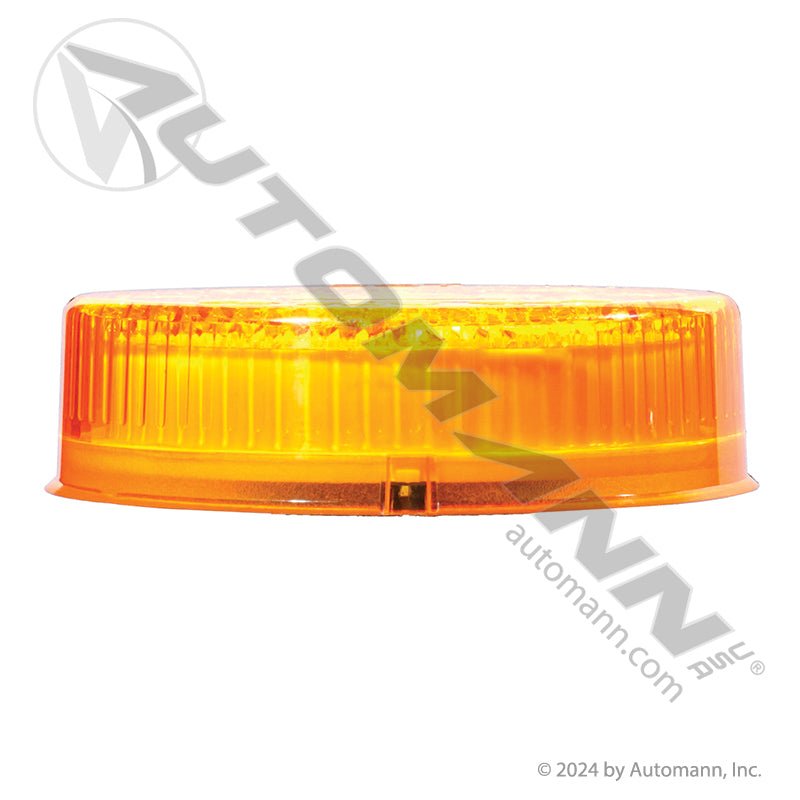

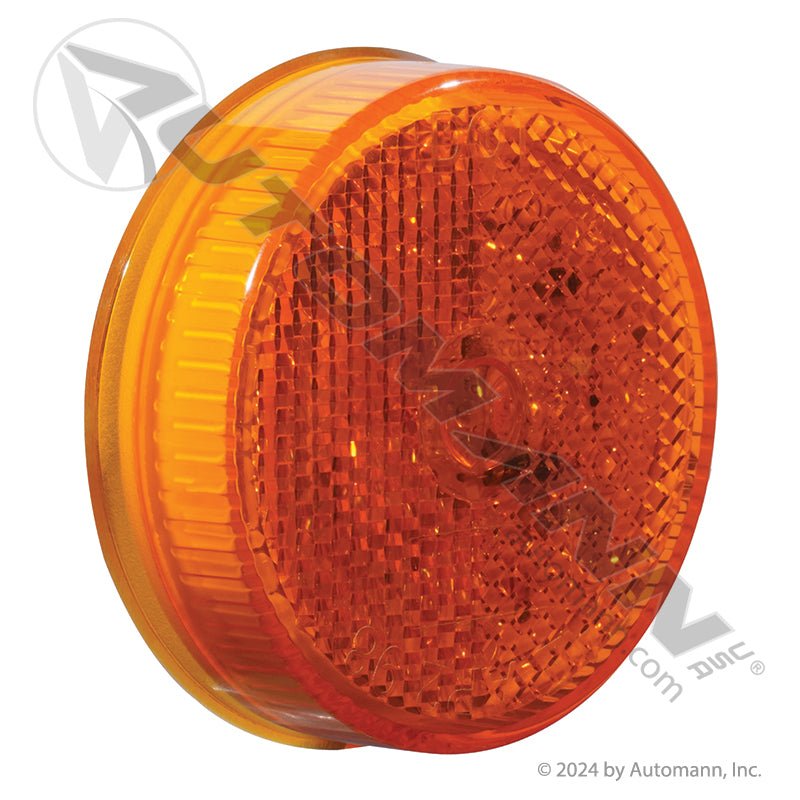

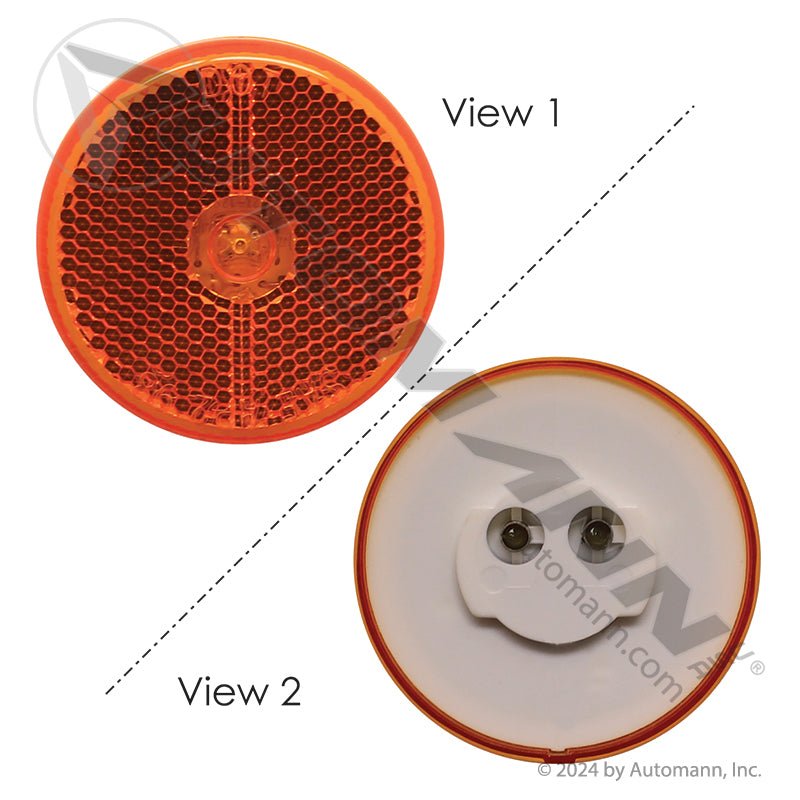

LED Reflex Marker Clearance Light - 2-1/2in Round Amber 7-Diode - Trucklite 1052A Grote G1003 571.LD11A7
LED Reflex Marker Clearance Light - 2-1/2in Round Amber 7-Diode - Trucklite 1052A Grote G1003 571.LD11A7
Automann

LED Reflex Marker Clearance Light - 2-1/2in Round Amber 7-Diode - Trucklite 1052A Grote G1003 571.LD11A7

In stock
SKU: 571.LD11A7
$6.06
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 trucks, commercial trailers and utility vehiclesMarker / clearance positions that require a reflectorGrommet or bracket mount, 2.5in round, PL-10 connector
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

3 cross-refs
Trucklite 1052A Grote G1003 Optronics MCL59AB
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Get lamp and reflector in one part with this 2-1/2in Round Amber Reflex LED Marker Light distributed by FleetPro Parts & Tires. It carries a built-in reflector, so the position stays visible to other drivers even with the lights off or the circuit dead โ€” and it means one hole in the panel instead of a lamp plus a separate stick-on reflector that eventually peels off. Manufactured by Automann to Fleet Standard specifications, this lamp is stocked heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, trailer repair shops, and owner-operators nationwide.

Lamp and Reflector in One: The 7-Diode Reflex Marker Advantage

This lamp runs 7 LED diodes behind an amber polycarbonate lens on a 12V supply, giving a bright, even marker light with no filament to shake apart on a highway trailer. Polycarbonate is what lets the lens take stone chips and weather instead of crazing and cracking, and the seven-diode array keeps the lamp readable from an angle rather than only straight on.

It handles the P/T marker plus reflex function and is built to SAE P2/A and FMVSS 108. Wiring is the standard PL-10 connector, and it mounts in a grommet or bracket in the usual 2.5in round location, so it goes where the old lamp came out. It is a direct replacement for the highly searched industry numbers including Trucklite 1052A, Grote G1003 and Optronics MCL59AB.

Vehicle Fitment & Compatibility

This heavy-duty LED reflex marker lamp uses a universal design intended for the following commercial applications:

  • Make/Model: Universal Class 8 Trucks, Commercial Trailers, and Utility Vehicles
  • Position: Marker / clearance lighting positions requiring a reflector
  • Mounting Style: Grommet or Bracket, 2.5in Round
  • System Requirement: 12V Electrical Systems, PL-10 Connector
  • Component Group: Exterior Lighting / Marker & Clearance Lights

Direct Replacement & Cross-Reference Numbers:

This Automann LED reflex marker light serves as a direct replacement for the following part numbers:

  • Trucklite Interchange: 1052A
  • Grote Interchange: G1003
  • Optronics Interchange: MCL59AB
  • Automann Distributor #: 571.LD11A7

Technical Specifications

  • Component Type: LED Marker / Clearance Lamp with Reflex Reflector
  • Function: P/T Marker + Reflex
  • Size & Shape: 2.5in Round
  • Diodes: 7 LED
  • Lens: Amber Polycarbonate
  • Voltage: 12V
  • Connector: PL-10
  • Mount: Grommet or Bracket
  • Includes: Built-in Reflector
  • Compliance: SAE P2/A, FMVSS 108
  • Weight: 0.12 lbs
  • Package Dims: 2.5 x 2.5 x 0.796 in
  • Condition: New
  • Warranty: 1-Year FleetPro Warranty
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Built-In Reflex Reflector: Keeps the position visible with the lights off or the circuit dead, and saves a separate stick-on reflector that peels.
  • 7-Diode Output: Seven LEDs give a bright, even marker light that stays readable from an angle, not just head-on.
  • Polycarbonate Amber Lens: Takes stone chips and weather instead of crazing and cracking like cheaper lens material.
  • Standard PL-10 Connection: Wires with the common PL-10 connector and mounts in a grommet or bracket where the old lamp came out.
  • SAE P2/A and FMVSS 108: Meets the marker, clearance and reflex standards the position has to satisfy at inspection.
Specifications
Component Type
LED Marker / Clearance Lamp with Reflex Reflector
Function
P/T marker + reflex
Size & Shape
2.5in round
Diodes
7 LED
Lens
Amber polycarbonate
Voltage
12V
Connector
PL-10
Mount
Grommet or bracket
Includes
Built-in reflector
Compliance
SAE P2/A, FMVSS 108
Weight
0.12 lbs
Package Dims
2.5 x 2.5 x 0.796 in
Condition
New
Warranty
1-Year FleetPro Warranty
UPC
889626267123
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 trucks, commercial trailers and utility vehicles, Marker / clearance positions that require a reflector, Grommet or bracket mount, 2.5in round, PL-10 connector. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Trucklite 1052A, Grote G1003, Optronics MCL59AB.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
