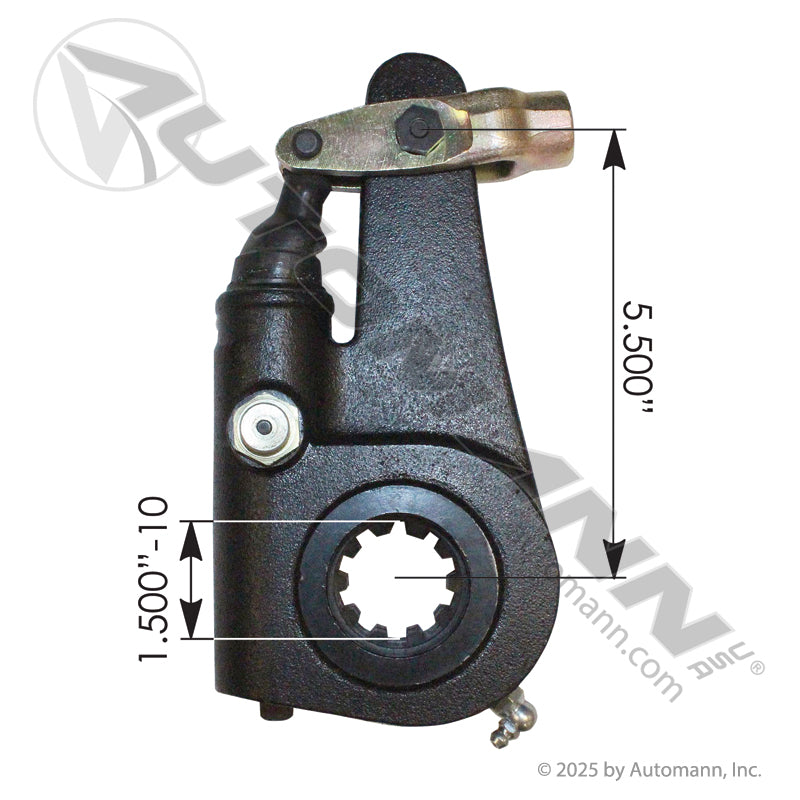

Meritor-Type Automatic Slack Adjuster - Type B 1-1/2in-10 x 5-1/2in Arm - R802317 R803025 E11410 139.1033
Regular price
$63.33
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Meritor-type, Type B (Meritor applications)S-cam foundation brakes1-1/2in-10 spline, 5-1/2in arm, 5/8in-18 clevisAutomatic brake stroke adjustment
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
6 cross-refsAutocar 3947623 Euclid E11410 Euclid E11410A Meritor A273275A1145 Meritor R802317 Meritor R803025
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
A slack adjuster that has quit adjusting is what turns a healthy set of foundation brakes into a long-stroke brake job. This Meritor-Type Automatic Slack Adjuster distributed by FleetPro Parts & Tires mounts on S-cam foundation brakes and keeps brake stroke in adjustment automatically, so shoe clearance stays where the brakes were set instead of drifting out between services. It ships as an automatic brake slack adjuster with hardware included - the 179.YK5005 Clevis Kit is in the box with the unit. Manufactured by Automann to Fleet Standard specifications, it is stocked heavily right here in our Hanover Park, Illinois warehouse for lightning-fast shipping to fleets, diesel repair shops, and owner-operators nationwide.
Stroke In Adjustment: The Meritor-Type Slack Adjuster Advantage
This is the Automatic, Type B, Meritor Type design, splined 1-1/2in-10 and swinging a 5-1/2in arm to a 5/8in-18 clevis. Those three numbers are what decide whether an adjuster belongs on the axle in front of you: the spline has to index on the camshaft, the arm length has to match the leverage the axle was engineered around, and the clevis thread has to match the chamber pushrod. Miss one of them and the brake either will not assemble or will never make its rated stroke.
Because the take-up is automatic, the adjusting that used to be a line item at every PM happens on its own as the linings wear. Stroke stays short, and both wheel ends on the axle keep applying together instead of one side quietly doing more of the stopping. The included 179.YK5005 Clevis Kit matters more than it looks on the box: a clevis that has been worn oval by a season of stroke puts slop right at the pushrod connection, and slop there shows up as stroke that no adjuster can recover.
At FleetPro Parts & Tires, we know a brake job is only right when the adjuster is right. This Automann unit is a direct replacement for highly searched industry numbers including Meritor R802317, Meritor R803025, Meritor A273275A1145, Euclid E11410 and E11410A, and Autocar 3947623. Order it by Automann distributor number 139.1033.
Vehicle Fitment & Compatibility
This Meritor-type automatic slack adjuster is intended for the following commercial applications:
- Type: Meritor-type, Type B (Meritor applications)
- Brake System: S-cam foundation brakes
- Spline: 1-1/2in-10 camshaft spline
- Arm Length: 5-1/2in
- Clevis: 5/8in-18
- Component Group: Brake System / Slack Adjusters & Camshafts
Direct Replacement & Cross-Reference Numbers:
This Automann slack adjuster serves as a direct replacement for the following part numbers:
- Meritor Interchange: R802317, R803025, A273275A1145
- Euclid Interchange: E11410, E11410A
- Autocar Interchange: 3947623
- Automann Distributor #: 139.1033
Technical Specifications
- Component Type: Automatic Slack Adjuster
- Style: Automatic, Type B, Meritor Type
- Spline: 1-1/2in-10
- Arm Length: 5-1/2in
- Clevis: 5/8in-18
- Includes: 179.YK5005 Clevis Kit
- Application: S-cam foundation brakes
- Condition: New
- Warranty: 1-Year FleetPro Warranty
- UPC: 889626015151
- Product Level: Fleet Standard Aftermarket
- Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
- Adjusts Itself: Automatic take-up keeps brake stroke in adjustment as the linings wear, instead of waiting on a manual adjustment at the next PM.
- Correct Meritor Geometry: Type B Meritor-type design on a 1-1/2in-10 spline with a 5-1/2in arm, so it indexes on the camshaft and pulls the leverage the axle was built for.
- Clevis Kit Included: The 179.YK5005 Clevis Kit ships in the box, so the pushrod connection is reassembled on fresh hardware instead of a worn clevis.
- Wide Meritor Interchange: One part number covers Meritor R802317, R803025 and A273275A1145 plus Euclid E11410 and E11410A.
- Built for S-Cam Brakes: Designed for S-cam foundation brakes, where it holds shoe clearance in adjustment automatically.
Specifications
Component Type
Automatic Slack Adjuster
Style
Automatic, Type B, Meritor Type
Spline
1-1/2in-10
Arm Length
5-1/2in
Clevis
5/8in-18
Includes
179.YK5005 Clevis Kit
Application
S-cam foundation brakes
Condition
New
Warranty
1-Year FleetPro Warranty
UPC
889626015151
Product Level
Fleet Standard Aftermarket
