Meritor-Type Automatic Slack Adjuster - Unhanded 1-1/2in-28 x 5.5in Arm - E11401 R801070 3947646 139.2831

Out-of-adjustment brakes are a top CSA violation, and the usual culprit is a slack adjuster that has quit taking up lining wear. This Meritor-Type Automatic Slack Adjuster distributed by FleetPro Parts & Tires converts brake chamber pushrod stroke into S-cam rotation and then self-adjusts brake shoe clearance, so the long pushrod stroke that fails an inspection never gets a chance to build. It is the straight replacement for a worn or seized unit, and because it is unhanded, one part number covers both ends of the axle. Manufactured by Automann to Fleet Standard specifications, it is stocked heavily right here in our Hanover Park, Illinois warehouse for lightning-fast shipping to fleets, diesel repair shops, and owner-operators nationwide.

Stroke Under Control: The Unhanded Meritor-Type Slack Adjuster Advantage

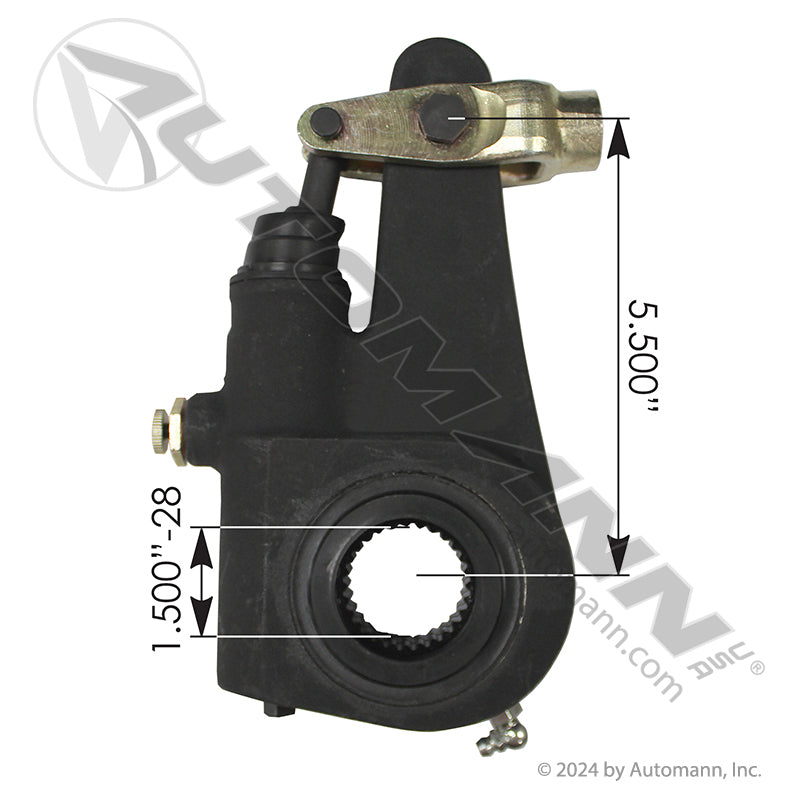

The three dimensions that decide fitment are all spelled out on this unit: a 1-1/2in x 28 spline bore that indexes on the camshaft, a 5-1/2in arm that sets the leverage the axle was engineered around, and a 5/8in-18 clevis that threads onto the chamber pushrod. The 179.YK5005 Clevis Kit is included, so the pushrod joint goes back together on new hardware rather than a clevis already worn oval by a season of stroke - slop at that connection reads as stroke the adjuster cannot recover.

Unhanded construction is the practical win on the shelf. There is no left-hand and right-hand version to stock, mix up, or run out of at six in the morning: the same 7 lbs unit fits either side, which is exactly what you want when the right move is to replace in axle pairs so both wheel ends adjust and apply together. Changing only the failed side leaves the truck braking unevenly, and uneven braking is what eats the linings on the good side while the driver wonders why the pull came back.

At FleetPro Parts & Tires, we know a brake job is only right when the adjuster is right. This Automann unit is a direct replacement for highly searched industry numbers including Meritor R801070, R801072, R801073, R802462 and R803110, Euclid E11401 and E11401A, Volvo 3947646, Ford 4C4Z2041DA and IHC 2018227C91. Order it by Automann distributor number 139.2831.

Vehicle Fitment & Compatibility

This unhanded Meritor-type automatic slack adjuster is intended for the following commercial applications:

• Application: Dana/Spicer, Hendrickson Trailer, Meritor
• Type: Automatic, Meritor type, unhanded - fits either side of the axle
• Spline: 1-1/2in x 28 spline
• Arm: 5-1/2in
• Clevis: 5/8in-18
• Component Group: Brake System / Slack Adjusters & Camshafts

Direct Replacement & Cross-Reference Numbers:

This Automann slack adjuster serves as a direct replacement for the following part numbers:

• Meritor Interchange: A283275H1152S, A323275H1152, A413275Z1144, R801070, R801072, R801073, R802462, R803110
• Euclid Interchange: E11401, E11401A
• Volvo Interchange: 3947646, 8086517
• Thomasbilt Interchange: 61130976, TBB61130976
• Ford Interchange: 4C4Z2041DA
• IHC Interchange: 2018227C91
• Automann Distributor #: 139.2831

Technical Specifications

• Component Type: Automatic Slack Adjuster
• Style: Automatic, Meritor type, unhanded
• Spline: 1-1/2in x 28 spline
• Arm: 5-1/2in
• Clevis: 5/8in-18
• Includes: 1x 179.YK5005 Clevis Kit
• Application: Dana/Spicer, Hendrickson Trailer, Meritor
• Weight: 7 lbs
• Package Dims: 11.25 x 5.875 x 2.375 in
• Condition: New
• Warranty: 1-Year FleetPro Warranty
• UPC: 889626015274
• Product Level: Fleet Standard Aftermarket
• Brand: Automann (Distributed by FleetPro Parts & Tires)
