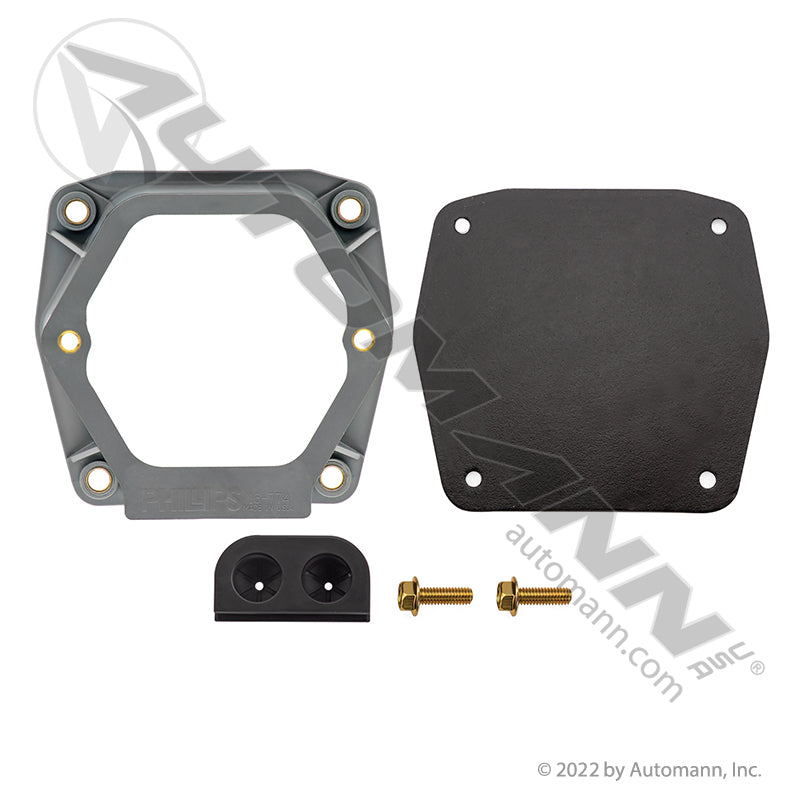

Nosebox Kit - 3-1/2 in. Deep STA-DRY Grommet & Back Plate - Phillips 16-775 Grote 82-0861 PHI16-775
Regular price
$15.69
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Universal - commercial trailers, not vehicle specificSealed trailer nose housing for a socketbreakerDeep 3-1/2 in. box applicationsReplace when the grommet perishes or the back plate is damaged
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
5 cross-refsGrote 82-0861 Grote 820861 Phillips 16-775 Phillips 16775 Tramec Sloan 3826035
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Rebuild the trailer nose the right way with this 3-1/2 in. deep nosebox kit from Phillips, distributed by FleetPro Parts & Tires. This is the sealed housing a socketbreaker mounts into, and when the grommet perishes or the back plate gets bent by a dock hit, the box stops keeping weather out. Water finds the socket, the pins corrode, and a trailer that lit up fine yesterday starts dropping circuits in the rain. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, trailer repair shops, and owner-operators nationwide.
Sealed and Deep: The STA-DRY Nosebox Kit Advantage
This is the deep version at 3-1/2 in., and it comes complete with a STA-DRY single-cavity deep grommet and a back plate. The extra depth gives the cable a gentler bend behind the socket instead of forcing a hard kink right at the terminals, and the single-cavity deep grommet closes around the cable to keep spray and washdown water out of the cavity where it would otherwise sit.
Because the grommet and back plate come in the kit, the whole sealing path goes on new at once, rather than fitting a fresh box against a hardened grommet that will leak again by spring. This kit is a direct replacement for highly searched industry numbers including Phillips 16-775, Grote 82-0861 and Tramec Sloan 3826035.
Vehicle Fitment & Compatibility
This nosebox kit uses a universal design intended for the following commercial applications:
- Make/Model: Universal - commercial trailers, not vehicle specific
- Position: Trailer nose, sealed socketbreaker housing
- Depth: 3-1/2 in. deep box
- Component Group: Air Lines, Power Cords & Sockets
Direct Replacement & Cross-Reference Numbers:
This Phillips nosebox kit serves as a direct replacement for the following part numbers:
- Phillips Interchange: 16-775, 16775
- Grote Interchange: 82-0861, 820861
- Tramec Sloan Interchange: 3826035
- Automann Distributor #: PHI16-775
Technical Specifications
- Component Type: Nosebox Kit
- Includes: STA-DRY single-cavity deep grommet and back plate
- Depth: 3-1/2 in.
- Grommet: STA-DRY single cavity, deep
- Applications: Universal
- Weight: 0.6 lbs
- Package Dims: 5.5 x 5.25 x 3.75 in
- UPC: 889626602528
- Product Level: OE (Original Equipment)
- Brand: Phillips (Distributed by FleetPro Parts & Tires)
Key features
- STA-DRY Sealing Grommet: The single-cavity deep grommet closes around the cable so spray and washdown water stay out of the box.
- Grommet and Back Plate Included: The entire sealing path goes on new at once instead of pairing a fresh box with a hardened grommet.
- Deep 3-1/2 in. Body: Extra depth lets the cable turn behind the socket without a hard kink at the terminals.
- Trailer Nose Duty: Built for the front of the trailer, where dock rash, ice and salt spray finish off a tired box.
- Clean Interchange: Replaces Phillips 16-775, Grote 82-0861 and Tramec Sloan 3826035.
Specifications
Component Type
Nosebox Kit
Includes
STA-DRY single-cavity deep grommet and back plate
Depth
3-1/2 in.
Grommet
STA-DRY single cavity, deep
Applications
Universal
Weight
0.6 lbs
Package Dims
5.5 x 5.25 x 3.75 in
UPC
889626602528
Product Level
OE (Original Equipment)
Questions
Will this fit my truck?
This part fits Universal - commercial trailers, not vehicle specific, Sealed trailer nose housing for a socketbreaker, Deep 3-1/2 in. box applications, Replace when the grommet perishes or the back plate is damaged. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Grote 82-0861, Grote 820861, Phillips 16-775, Phillips 16775, Tramec Sloan 3826035.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
