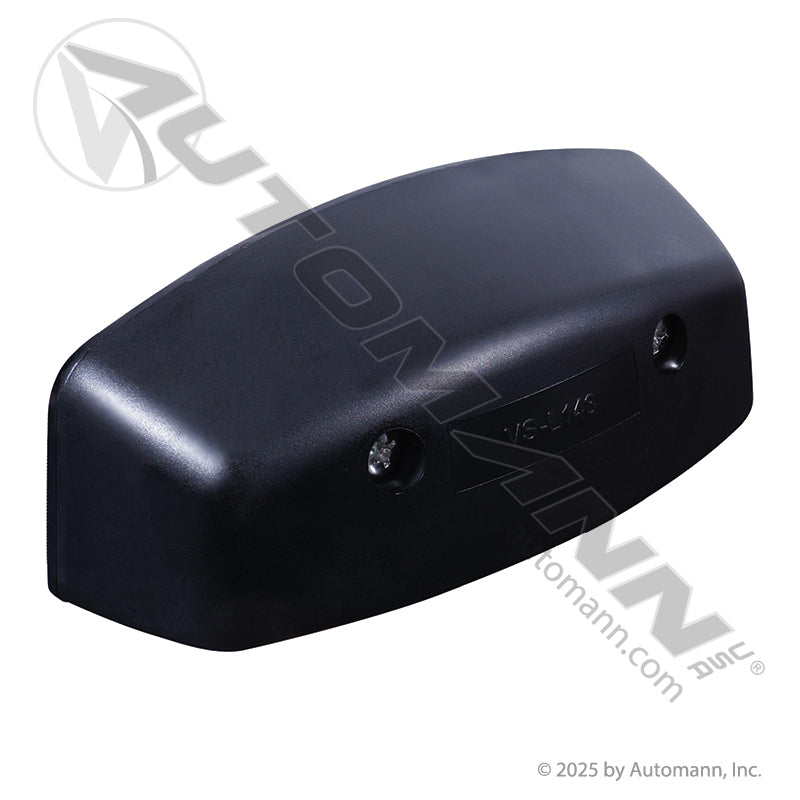

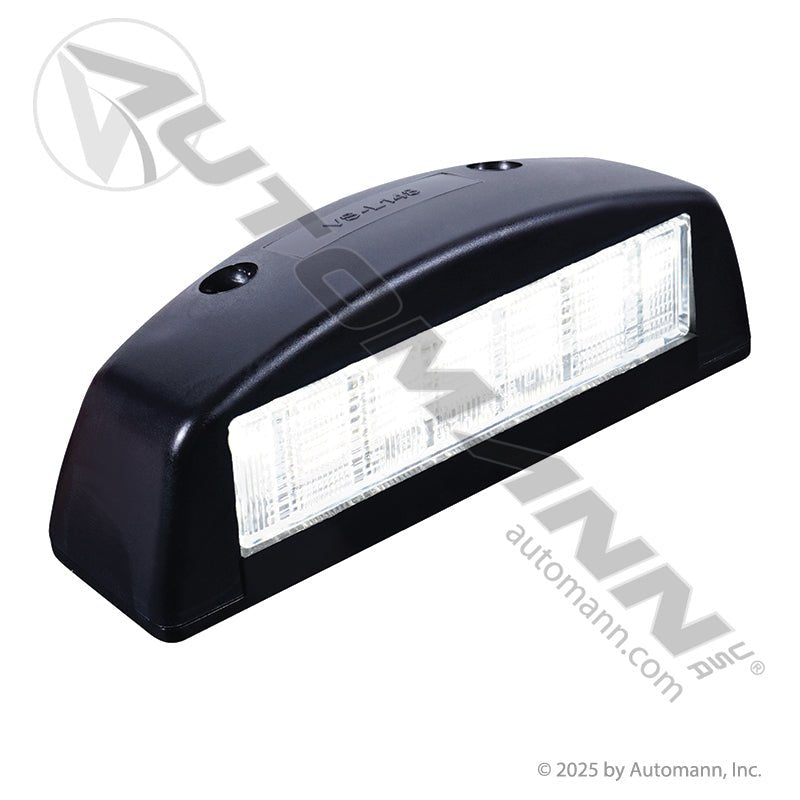

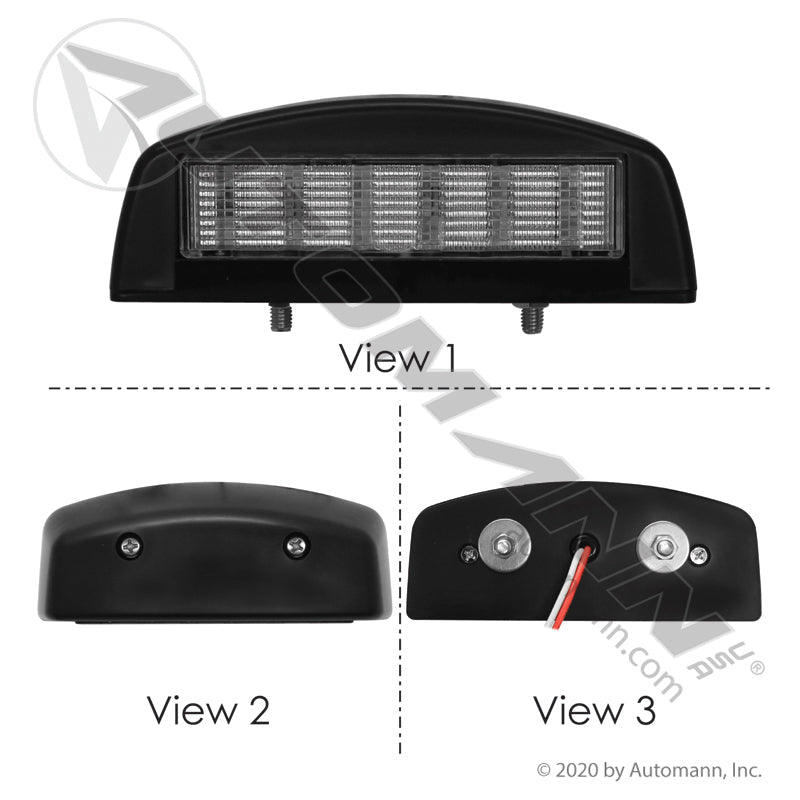

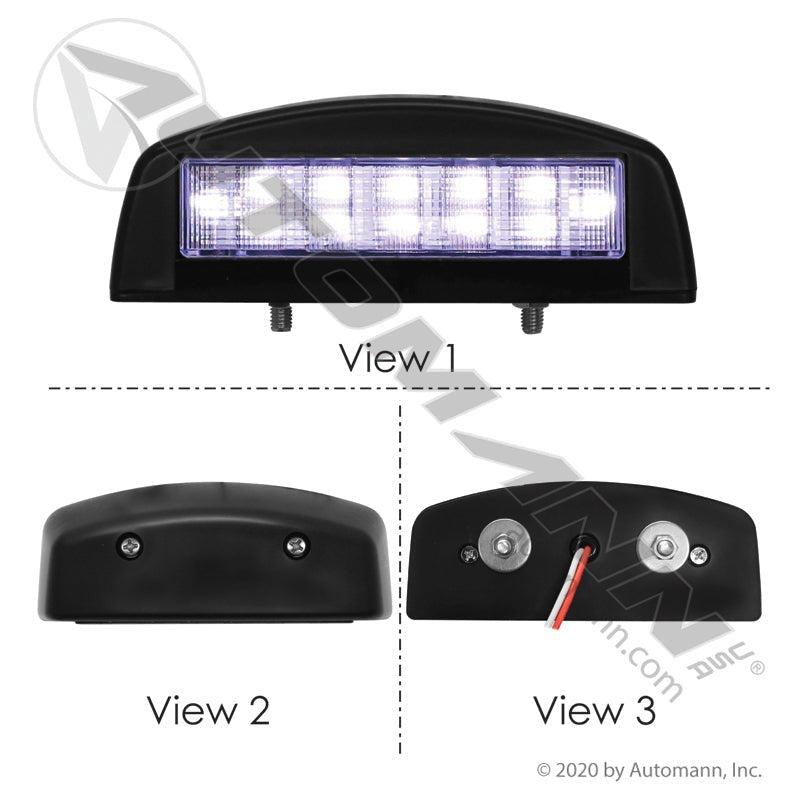

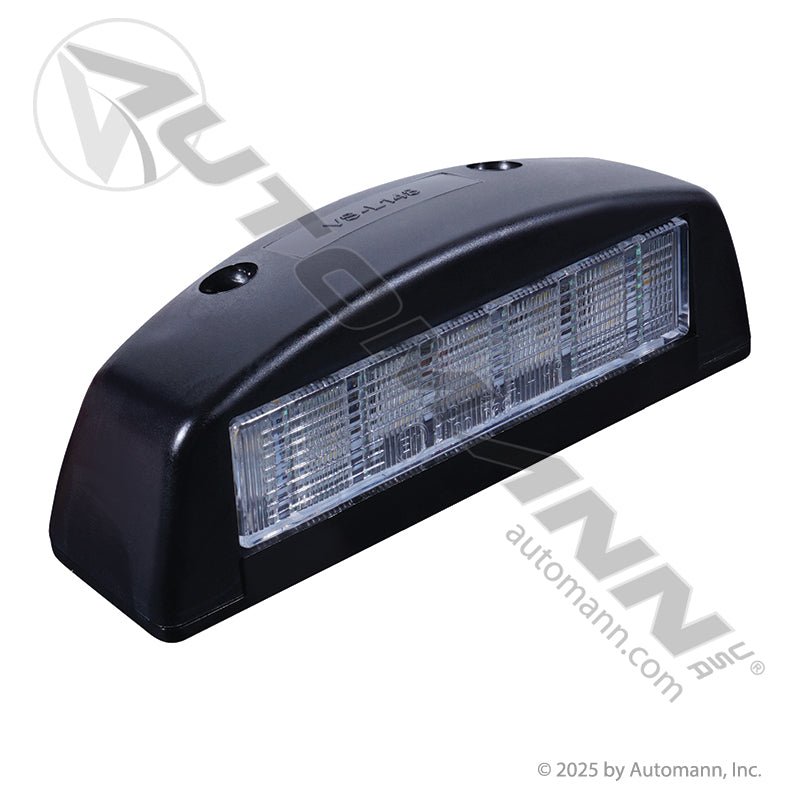

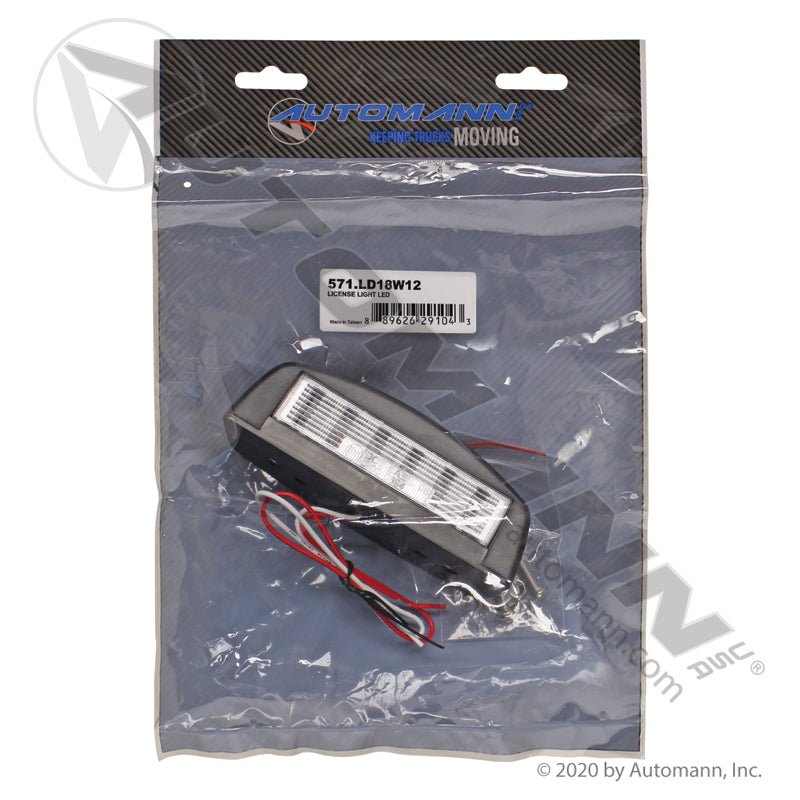

Oblong License Plate LED Light - 1.5 x 5 Inch Black 12-Diode 2-Stud - 571.LD18W12
Oblong License Plate LED Light - 1.5 x 5 Inch Black 12-Diode 2-Stud - 571.LD18W12
Automann

Oblong License Plate LED Light - 1.5 x 5 Inch Black 12-Diode 2-Stud - 571.LD18W12

In stock
SKU: 571.LD18W12
$15.01
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 Trucks, Commercial Trailers, and Utility VehiclesRear license plate illumination2-stud mount with mounting holes, 2 in C2C12V hardwired electrical systems
Always confirm your year, make & model before ordering.
Overview

Get the rear plate lit and keep an easy violation off the inspection report with this Oblong 1-1/2 in x 5 in LED License Plate Light distributed by FleetPro Parts & Tires. A dark license plate lamp is one of the simplest things an officer can spot from behind at night, and it is the kind of write-up that pulls a driver onto the shoulder over a part nobody thinks about until it quits. This is a DOT compliant license plate lamp in a black housing, sized to sit above the plate and wash it with light. Manufactured by Automann to Fleet Standard specifications, it is stocked heavily right here in our Hanover Park, Illinois warehouse for lightning-fast shipping to fleets, trailer repair shops, and owner-operators nationwide.

Even Plate Coverage: The 12-Diode Oblong Advantage

Twelve diodes spread across a 5 in oblong body put light along the full width of the plate rather than dropping a single hot spot in the middle and leaving the corners in shadow. The lamp runs on 12V and is hardwired, so there is no plug-in connector shell sitting on the rear sill collecting salt and moisture, and the black housing keeps the lamp visually quiet against a painted bumper or a trailer's rear sill.

Mounting is a 2-stud pattern with mounting holes on 2 in C2C spacing: line the studs up, run the leads, tighten the nuts, done. Because the light source is LED there is no filament to shake apart on a vibrating frame, so this stops being a part you revisit every couple of inspections with a spare bulb in your pocket.

At FleetPro Parts & Tires, we stock the unglamorous parts that keep a truck legal. Order this lamp by the Automann distributor number 571.LD18W12, and make a habit of checking the plate light on your walkaround - it is the one lamp nobody can see from the driver seat.

Vehicle Fitment & Compatibility

This heavy-duty aftermarket LED license plate light uses a universal design intended for the following commercial applications:

  • Make/Model: Universal Class 8 Trucks, Commercial Trailers, and Utility Vehicles
  • Function: Rear License Plate Illumination
  • Mounting Style: 2-Stud with Mounting Holes, 2 in C2C
  • System Requirement: 12-Volt DC Electrical Systems, Hardwired
  • Component Group: Exterior Lighting / License Plate Lamps

Direct Replacement & Cross-Reference Numbers:

Order this license plate lamp by the following distributor part number:

  • Automann Distributor #: 571.LD18W12

Technical Specifications

  • Component Type: License Plate LED Light
  • Size & Shape: 1-1/2 in x 5 in Oblong
  • Diode Count: 12
  • Housing: Black
  • Connection: Hardwired
  • Mount: 2-Stud with Mounting Holes, 2 in C2C
  • Voltage: 12V
  • Compliance: DOT Compliant
  • Weight: 0.3 lbs
  • Package Dims: 4.63 x 1.88 x 1.75 in
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Twelve Diodes Across Five Inches: The long oblong body spreads twelve LEDs over the width of the plate instead of leaving the corners in shadow.
  • Hardwired, No Plug to Corrode: Hardwired leads mean there is no connector shell on the rear sill collecting road salt and moisture.
  • 2-Stud, 2 in C2C Mounting: The two-stud pattern with mounting holes on 2 in centers bolts up and tightens down with ordinary hand tools.
  • Black Housing: The black housing keeps the lamp visually quiet against a painted bumper or a trailer rear sill.
  • DOT Compliant Plate Lighting: Keeps the plate legible at night, which is exactly what a plate lamp is checked against.
Specifications
Component Type
License Plate LED Light
Size & Shape
1-1/2 in x 5 in Oblong
Diode Count
12
Housing
Black
Connector
Hardwired
Mount
2-Stud with mounting holes, 2 in C2C
Voltage
12V
Compliance
DOT compliant
Weight
0.3 lbs
Package Dims
4.63 x 1.88 x 1.75 in
UPC
889626291043
Product Level
Fleet Standard Aftermarket
