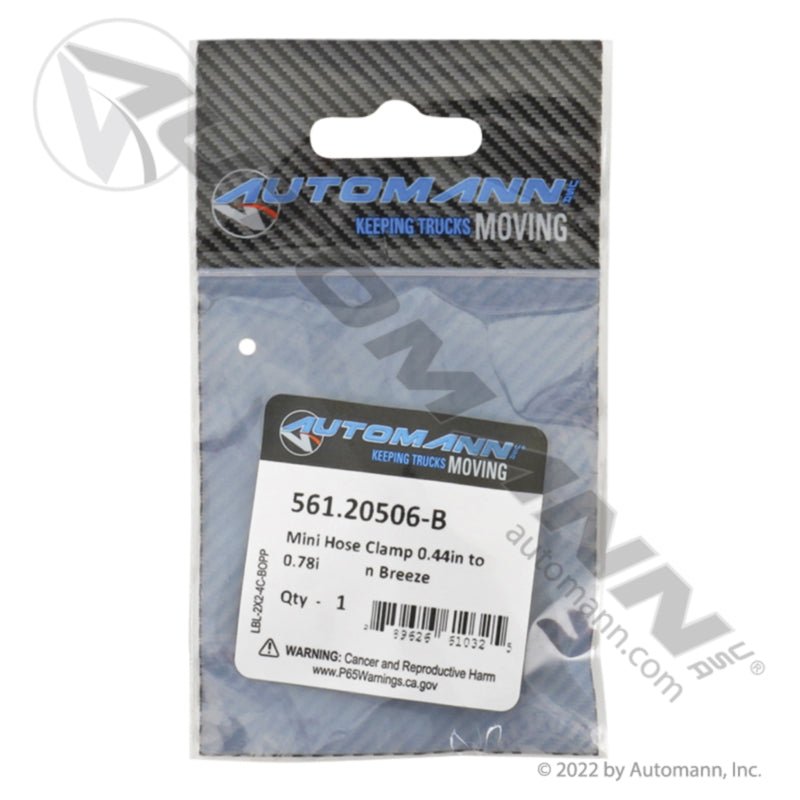

OE Breeze Mini Hose Clamp - 0.44" to 0.78" 3506 MHC6 022206 561.20506-B
Regular price
$0.59
Couldn't load pickup availability
- Ships same dayOn in-stock orders
- 30-day money-backShop with confidence
- Secure checkoutEncrypted payment
We accept
Fitment
Fits these trucks
Universal - Class 8 Trucks, Trailers, Automotive & Heavy Equipment
Always confirm your year, make & model before ordering.
Part numbers
OEM & interchange numbers
4 cross-refsBreeze 3506 Tectran MHC6 Velvac 022206 Sloan 490406
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview
Secure your delicate fuel lines, vacuum hoses, and precision pneumatic tubing with this genuine OE Breeze Mini Hose Clamp distributed by FleetPro Parts & Tires. Manufactured by Breeze—the industry’s leading Original Equipment (OE) clamping supplier for heavy-duty truck and automotive manufacturers—this miniature hardware delivers even, reliable clamping pressure for your smallest sealing jobs. Cheap, low-grade mini clamps easily strip out or crush delicate hoses, leading to frustrating vacuum leaks and rough idling. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.
Precision Sealing: The OE Breeze Mini Hose Clamp Advantage

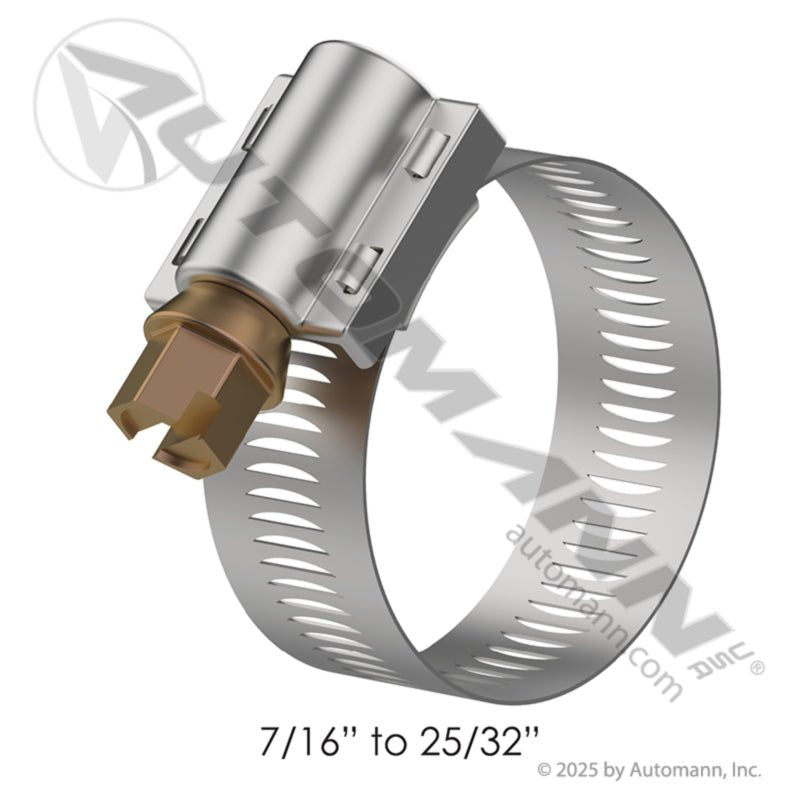

This OE Breeze Mini Hose Clamp is explicitly engineered for tight spaces and small-diameter applications. It features a precise clamping range of 0.440" to 0.780". The compact 0.31-inch wide band and robust one-piece housing are stamped from high-strength, corrosion-resistant 300 series stainless steel. To prevent thin-walled hoses from being chewed up or abraded during tightening, this clamp features an innovative floating bridge underneath the bolt. The 1/4-inch hex screw is zinc-plated for extended life and smooth torque application. Note: Proper installation requires a torque wrench set between 10-15 in-lbs; the use of pneumatic or electric impact tools is highly discouraged.
At FleetPro Parts & Tires, we know that when it comes to engine plumbing, you cannot compromise on quality, no matter how small the part. Serving as the exact factory-original hardware for major vehicle builders, this SAE J1508 Type M compliant mini clamp is a direct exact-fit replacement for heavily searched part numbers like Tectran MHC6, Velvac 022206, Sloan 490406, and Breeze 3506. Upgrade your shop's hardware bin with these premium OE clamps to ensure your repairs stay permanently leak-free.
Vehicle Fitment & Compatibility
This genuine OE mini worm drive hose clamp features a universal design intended for the following commercial applications:
- Application: Universal Class 8 Trucks, Trailers, Automotive & Heavy Equipment
- Component Group: Fuel Lines, Vacuum Hoses, Air Lines, & Small Fluid Transfer
- Hose Size Compatibility: Fits outside diameters from 0.440" (11.2mm) to 0.780" (19.8mm)
Direct Replacement & Cross-Reference Numbers:
This genuine Breeze clamp serves as a direct exact-fit replacement for the following part numbers:
- Breeze Original: 3506
- Tectran Interchange: MHC6
- Velvac Interchange: 022206
- Sloan Interchange: 490406
- Automann Distributor #: 561.20506-B
Technical Specifications
- Component Type: Mini Worm Drive Hose Clamp
- Clamping Range: Min 0.440" to Max 0.780"
- Band Width & Thickness: 0.310" Wide / 0.023" Thick (300 Series Stainless Steel)
- Housing Material: 1-Piece 300 Series Stainless Steel
- Hardware: 1/4" Zinc-Plated Hex Screw
- Torque Rating: 10-15 in-lbs (Impact Tools NOT Recommended)
- Compliance: Meets SAE J1508 Type M Standards
- Product Level: Genuine OE (Original Equipment)
- Brand: Breeze (Distributed by FleetPro Parts & Tires)
Key features
- Genuine Breeze OE: Manufactured by Breeze to exact Original Equipment specifications, providing the exact same tension, fit, and performance as the mini clamps installed on the factory assembly line.
- 300 Series Stainless Steel: The compact 0.31-inch wide band and 1-piece housing are constructed from highly corrosion-resistant 300 series stainless steel, preventing rust in harsh engine bay environments.
- Floating Bridge Design: Engineered with a specialized floating bridge underneath the bolt mechanism to protect soft, thin-walled vacuum and fuel hoses from abrasion and extrusion during tightening.
- Miniature Clamping Range: Provides a secure clamping range covering outside hose diameters from a minimum of 0.440 inches up to a maximum of 0.780 inches, perfect for delicate lines.
- Direct Factory Replacement: Delivers guaranteed OE reliability and SAE J1508 Type M compliance as a seamless, drop-in alternative to part numbers like Tectran MHC6, Velvac 022206, and Sloan 490406.
Specifications
Component Type
Mini Worm Drive Hose Clamp
Clamping Range
0.440 in to 0.780 in
Band Width
0.310 in
Band Thickness
0.023 in
Housing Material
1-Piece 300 Series Stainless Steel
Hardware
1/4 in Zinc-Plated Hex Screw
Torque Rating
10-15 in-lbs
Compliance
SAE J1508 Type M
Weight
0.02 lbs
Package Dims
3 x 1 x 1.5 in
Questions
Will this fit my truck?
This part fits Universal - Class 8 Trucks, Trailers, Automotive & Heavy Equipment. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Breeze 3506, Tectran MHC6, Velvac 022206, Sloan 490406.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
