OE Continental Rolling Lobe Air Spring - Hendrickson Intraax Vantraax - 64692 Firestone 9626 566.CT64692

Put your trailer back on its ride height with this genuine OE Rolling Lobe Air Spring distributed by FleetPro Parts & Tires. Manufactured by Continental — one of the industry's premier Original Equipment air spring suppliers — this bellows carries the load on Hendrickson Intraax AAL/AANL 23K and Vantraax HKARL 46K trailer air suspensions. A cracked, chafed or leaking air bag drops ride height, bleeds air all shift, beats the freight to pieces and takes the shock absorbers down with it. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, trailer repair shops, and owner-operators nationwide.

Intraax and Vantraax Ride Height: The OE Rolling Lobe Advantage

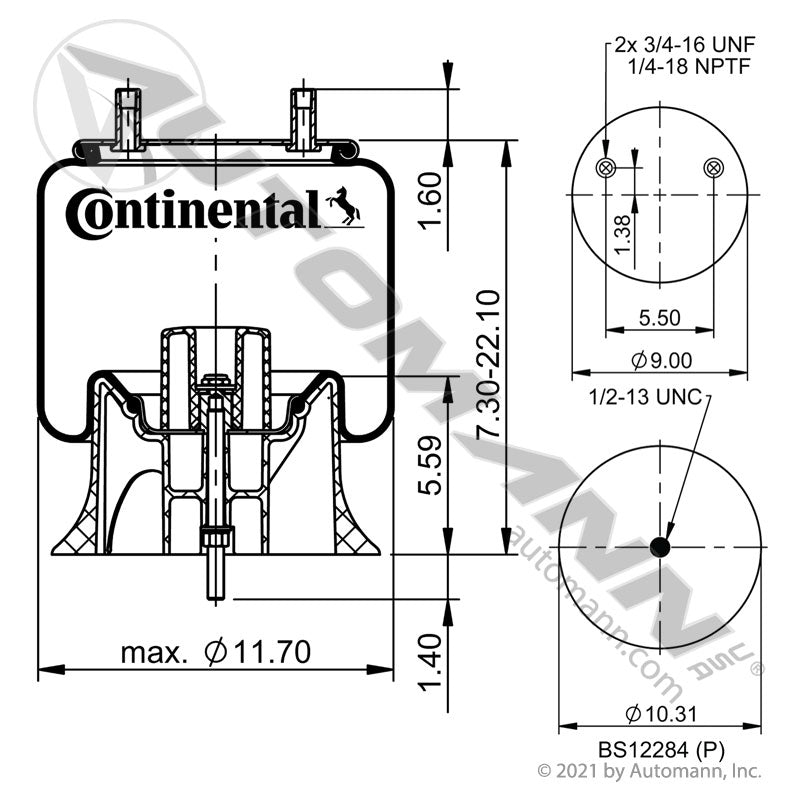

This Continental air spring (Contitech 64692 / 99-16P568) is engineered around the 23K and 46K Hendrickson geometry. It runs a 13in design height, collapses to 7.3in, and measures 11.7in at maximum diameter on a durable plastic base, at 13.96 lbs. Get those dimensions wrong and the trailer either rides nose-high or bottoms the bag on every expansion joint.

Rolling lobe construction lets the bellows roll along the piston rather than stretch, which is what keeps the spring rate soft and consistent whether the trailer is loaded to the roof or deadheading home. The proprietary rubber compound resists road salt, spilled lubricants, freezing temperatures and highway debris.

At FleetPro Parts & Tires, we know a suspension job is only right when the part is right. This bag is the direct equivalent of AB1DK20J-9626 and a drop-in replacement for highly searched industry numbers including Contitech 64692, Firestone 9626 and W01-358-9626, Goodyear 1R11-292, and Hendrickson S-23720. Always inspect the mounts and shock absorbers when you replace an air spring.

Vehicle Fitment & Compatibility

This OE-supplier air spring is intended for the following commercial applications:

• Make/Model: Hendrickson Intraax AAL/AANL 23K, Vantraax HKARL 46K
• Position: Trailer air-ride suspension
• Equivalent: AB1DK20J-9626
• Component Group: Air Suspension / Air Springs

Direct Replacement & Cross-Reference Numbers:

This Continental air spring serves as a direct replacement for the following part numbers:

• Contitech Interchange: 64692, 99-16P568
• Firestone Interchange: 9626, W013589626, W01-358-9626, W014559626, W01-455-9626
• Goodyear Interchange: 1R11292, 1R11-292
• Hendrickson Interchange: S23720, S-23720
• Automann Distributor #: 566.CT64692

Technical Specifications

• Component Type: Rolling Lobe Air Spring
• Base Material: Plastic
• Design Height: 13 in
• Collapsed Height: 7.3 in
• Max Diameter: 11.7 in
• Equivalent: AB1DK20J-9626
• Weight: 13.96 lbs
• Package Dims: 18 x 12 x 12 in
• Product Level: OEM
• Brand: Continental (Distributed by FleetPro Parts & Tires)
