OE Freightliner Rolling Air Spring - Imperial Inlet Cascadia M2 SD - 602207 A16-21077-001 566.CT602207

Restore ride height and load leveling on your Freightliner with this genuine OE Rolling Lobe Air Spring distributed by FleetPro Parts & Tires. Built by Continental — one of the industry's premier Original Equipment air spring suppliers — this bellows carries the load and holds ride height on Cascadia P3, Cascadia P4, 114SD, 122SD, M2 106 and M2 112 chassis. A cracked, chafed or leaking air bag costs you ride height, bleeds air all shift, beats up the driver and burns out shock absorbers fast. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

The Right Inlet: The OE Continental Air Spring Advantage

The critical detail on this bag is the air connection. This spring uses the US imperial air inlet and studs, so the factory air line and mounting hardware thread straight on without adapters — order the metric-inlet version by mistake and the job stops dead on the shop floor. It is the Contitech 9 10S-16 P 1653 rolling lobe style, running a 12.5in design height and 12.6in maximum diameter, at 13.64 lbs.

The proprietary rubber bellows resists road salt, spilled lubricants, freezing temperatures and highway debris, absorbing road shock so the chassis stays level, the cargo stays protected and driver fatigue stays down. Rolling lobe construction lets the bellows roll along the piston instead of stretching, which is what keeps the spring rate soft and consistent whether you are loaded to the ceiling or deadheading home.

At FleetPro Parts & Tires, we know a suspension job is only right when the part is right. This Continental air spring is a direct replacement for highly searched industry numbers including Contitech 602207, 76917, 76916 and 9 10S-16 P 1272, and Freightliner A16-21077-001. Always inspect the mounts and shock absorbers when you replace an air spring — a dead shock will destroy a brand new bag.

Vehicle Fitment & Compatibility

This OE-supplier air spring is intended for the following commercial applications:

• Make/Model: Freightliner Cascadia P3, Cascadia P4, 114SD, 122SD, M2 106, M2 112
• Air Inlet: US imperial air inlet and studs
• Style: Contitech 9 10S-16 P 1653 rolling lobe
• Component Group: Air Suspension / Air Springs

Direct Replacement & Cross-Reference Numbers:

This Continental air spring serves as a direct replacement for the following part numbers:

• Contitech Interchange: 602207, 76917, 76916, 9 10S-16 P 1653, 910S-16P1653, 9 10S-16 P 1272, 910S-16P1272
• Freightliner Interchange: A16-21077-001, A1621077001
• Automann Distributor #: 566.CT602207

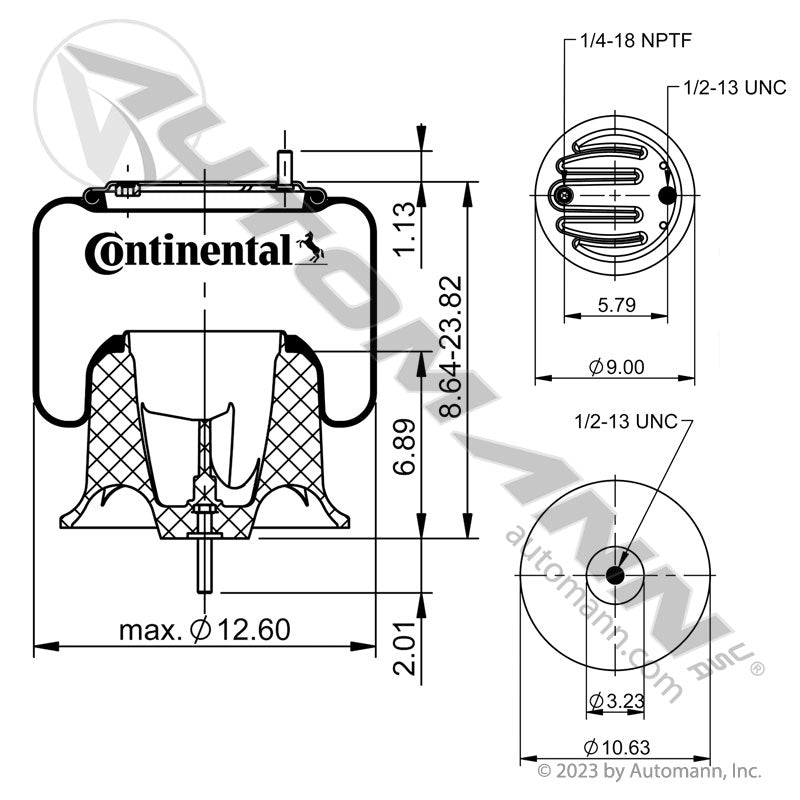

Technical Specifications

• Component Type: Rolling Lobe Air Spring
• Style: Contitech 9 10S-16 P 1653
• Air Inlet: US imperial air inlet and studs
• Design Height: 12.5 in
• Max Diameter: 12.6 in
• Weight: 13.64 lbs
• Package Dims: 19 x 12 x 12 in
• Product Level: OEM
• Brand: Continental (Distributed by FleetPro Parts & Tires)
