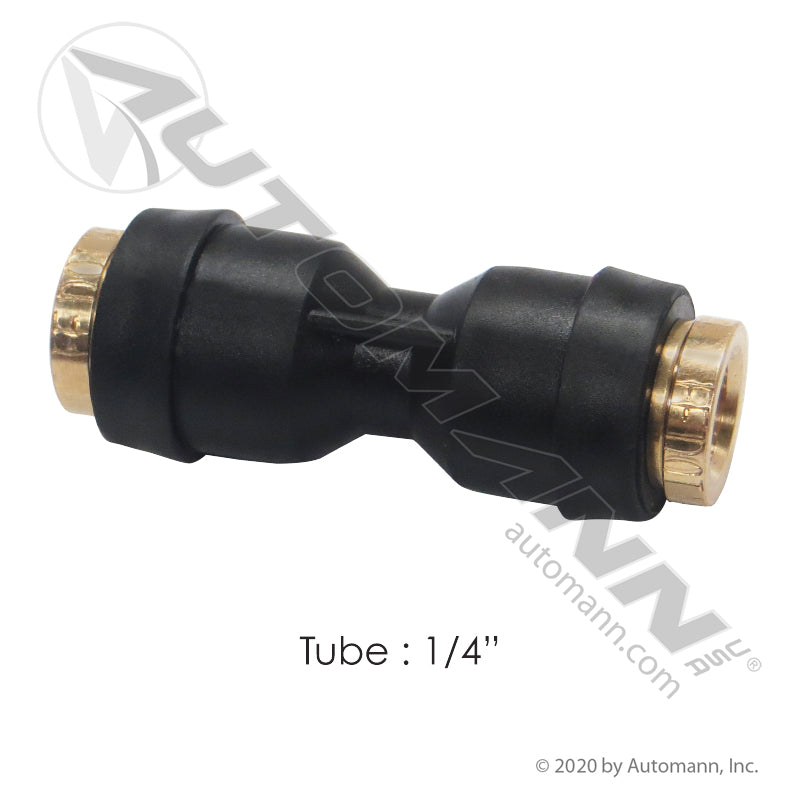

PLC Union Connector - DOT 1/4" Push-to-Connect Air Brake Fitting - Parker 32PTC-4 177.12C624
PLC Union Connector - DOT 1/4" Push-to-Connect Air Brake Fitting - Parker 32PTC-4 177.12C624
Automann

PLC Union Connector - DOT 1/4" Push-to-Connect Air Brake Fitting - Parker 32PTC-4 177.12C624

In stock
SKU: 177.12C624
$3.01
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 trucks and commercial trailersAir brake plumbing on tractors and trailersRejoins cut or damaged 1/4 in DOT air brake tubing
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

10 cross-refs
Parker 32PTC-4 Parker 32PTC4 Obrien C24624 Sloan S762PMT-4 Sloan S762PMT4 Velvac 016640 Tramec KV2H07-00 Tramec KV2H0700 Tectran QL1362-4 Tectran QL13624
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Put a cut air line back together in minutes with this PLC Union Connector distributed by FleetPro Parts & Tires. It joins two lengths of 1/4 in DOT air brake tubing with a push on each end, which is the fastest legal way to deal with a line that has been chafed through on a crossmember, nicked by a tire carcass, or cut short during a repair. A weeping 1/4 in line bleeds the tanks down overnight, keeps the compressor loading, and turns into a low-air buzzer on the first cold start. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

A Legal Splice in Two Minutes: The 1/4 in PLC Union Advantage

This is a push-to-connect (PLC) DOT air brake union with a composite body and a brass collet, built for a 1/4 in tube end on each side. The brass collet is what grips the tubing and holds it against system pressure, while the composite body keeps the fitting light and easy to work with in a tight run. There is no flaring tool, no compression nut to crush the tube, and no thread to seal โ€” cut the tube square, push both ends home, and tug-test the joint.

It is built specifically for air brake plumbing on tractors and trailers and meets FMVSS 571.106 / DOT requirements for brake circuits, so the splice belongs in a service or emergency line rather than being a temporary patch that has to come out before the next inspection. At 0.02 lbs, a handful lives easily in the toolbox. At FleetPro Parts & Tires, this union is a direct replacement for highly searched industry numbers including Parker 32PTC-4, Sloan S762PMT-4, Tramec KV2H07-00 and Tectran QL1362-4.

Vehicle Fitment & Compatibility

This DOT push-to-connect union uses a universal design intended for the following commercial applications:

  • Make/Model: Universal - Class 8 tractors, commercial trailers and vocational trucks
  • System: Air brake plumbing on tractors and trailers
  • Tube End: 1/4 in push-to-connect (PLC), both sides
  • Compliance: FMVSS 571.106 / DOT requirements for brake circuits

Direct Replacement & Cross-Reference Numbers:

This Automann union connector serves as a direct replacement for the following part numbers:

  • Parker Interchange: 32PTC-4, 32PTC4
  • Sloan Interchange: S762PMT-4, S762PMT4
  • Tramec Interchange: KV2H07-00, KV2H0700
  • Tectran Interchange: QL1362-4, QL13624
  • Other Interchange: Obrien C24624, Velvac 016640
  • Automann Distributor #: 177.12C624

Technical Specifications

  • Component Type: Push-to-Connect (PLC) Union Connector, DOT Air Brake
  • Body: Composite with Brass Collet
  • Tube End: 1/4 in
  • Compliance: FMVSS 571.106 / DOT
  • Weight: 0.02 lbs
  • Package Dims: 5 x 3.25 x 0.9 in
  • UPC: 889626515620
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Two-Minute Line Repair: Rejoins a cut or chafed 1/4 in air line with a square cut and a push on each end.
  • Brass Collet Grip: The brass collet holds the tubing against system pressure while the composite body keeps the fitting light in a tight run.
  • DOT Air Brake Compliant: Meets FMVSS 571.106 / DOT requirements for brake circuits, so the splice is legal in a service or emergency line.
  • No Special Tools: No flaring tool, no compression nut and no thread sealant needed to make the joint.
  • Broad Interchange: Covers Parker 32PTC-4, Sloan S762PMT-4, Tramec KV2H07-00, Tectran QL1362-4 and Obrien C24624.
Specifications
Component Type
Push-to-Connect (PLC) Union Connector, DOT Air Brake
Body
Composite with brass collet
Tube End
1/4 in
Compliance
FMVSS 571.106 / DOT
Weight
0.02 lbs
Package Dims
5 x 3.25 x 0.9 in
UPC
889626515620
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 trucks and commercial trailers, Air brake plumbing on tractors and trailers, Rejoins cut or damaged 1/4 in DOT air brake tubing. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Parker 32PTC-4, Parker 32PTC4, Obrien C24624, Sloan S762PMT-4, Sloan S762PMT4, Velvac 016640, Tramec KV2H07-00, Tramec KV2H0700, Tectran QL1362-4, Tectran QL13624.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
