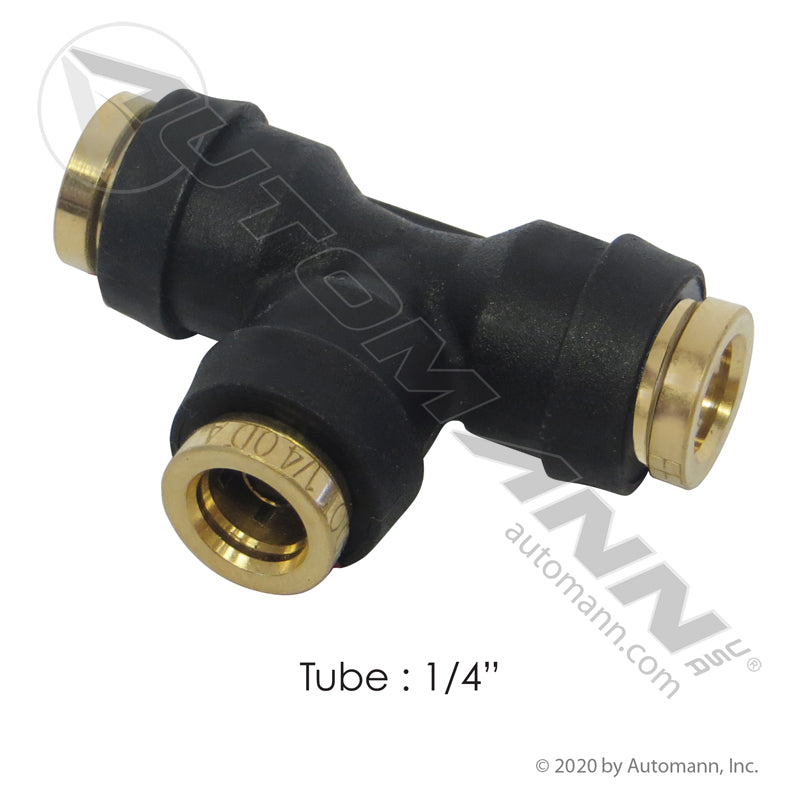

PLC Union Tee - DOT 1/4" Push-to-Connect Air Brake Fitting - Parker 364PTC-4 177.12C644
PLC Union Tee - DOT 1/4" Push-to-Connect Air Brake Fitting - Parker 364PTC-4 177.12C644
Automann

PLC Union Tee - DOT 1/4" Push-to-Connect Air Brake Fitting - Parker 364PTC-4 177.12C644

In stock
SKU: 177.12C644
$5.31
  • Ships same dayOn in-stock orders
  • 30-day money-backShop with confidence
  • Secure checkoutEncrypted payment
We acceptAmazon American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

If you have a large order and would like to get a discount, please fill out this form.

Fitment

Fits these trucks

Universal - Class 8 trucks and commercial trailersAir brake plumbing on tractors and trailersBranches a 1/4 in DOT air brake tubing run into two legs
Always confirm your year, make & model before ordering.
Part numbers

OEM & interchange numbers

9 cross-refs
Parker 364PTC-4 Parker 364PTC4 Sloan S764PMT-4 Sloan S764PMT4 Tramec KV2T07-00 Tramec KV2T0700 Tectran QL1364-4 Tectran QL13644 Velvac 016940
Direct 1-to-1 replacement for every number above. Tap any number to copy.
Overview

Tee into an existing air line without cutting a thread with this PLC Union Tee distributed by FleetPro Parts & Tires. All three legs are push-to-connect for 1/4 in DOT air brake tubing, so a run can be opened up and branched wherever the new circuit needs to pick up air. Doing the same job with a threaded tee and pipe nipples means three more sealed joints on the truck, and every one of them is a candidate for the slow leak that drains the tanks by morning. We stock these heavily right here in our Hanover Park, Illinois warehouse to ensure lightning-fast shipping for fleets, diesel repair shops, and owner-operators nationwide.

Branch Anywhere in the Run: The 1/4 in PLC Union Tee Advantage

This is a push-to-connect (PLC) DOT air brake union tee with a composite body and brass collet, taking a 1/4 in tube end on each of the three legs. Cut the existing line where the branch is wanted, square all three ends, push them home and tug-test. The brass collet grips the tubing and holds it against system pressure while the composite body keeps the fitting light enough to sit in a loom without dragging the run out of shape.

It is built for air brake plumbing on tractors and trailers and meets FMVSS 571.106 / DOT requirements for brake circuits, so a branch made with it is a permanent, inspectable part of the system. At 0.03 lbs it belongs in the box next to the straight unions. At FleetPro Parts & Tires, this tee is a direct replacement for highly searched industry numbers including Parker 364PTC-4, Sloan S764PMT-4, Tramec KV2T07-00 and Tectran QL1364-4.

Vehicle Fitment & Compatibility

This DOT push-to-connect union tee uses a universal design intended for the following commercial applications:

  • Make/Model: Universal - Class 8 tractors, commercial trailers and vocational trucks
  • System: Air brake plumbing on tractors and trailers
  • Tube End: 1/4 in push-to-connect (PLC), all three legs
  • Compliance: FMVSS 571.106 / DOT requirements for brake circuits

Direct Replacement & Cross-Reference Numbers:

This Automann union tee serves as a direct replacement for the following part numbers:

  • Parker Interchange: 364PTC-4, 364PTC4
  • Sloan Interchange: S764PMT-4, S764PMT4
  • Tramec Interchange: KV2T07-00, KV2T0700
  • Tectran Interchange: QL1364-4, QL13644
  • Velvac Interchange: 016940
  • Automann Distributor #: 177.12C644

Technical Specifications

  • Component Type: Push-to-Connect (PLC) Union Tee, DOT Air Brake
  • Body: Composite with Brass Collet
  • Tube End: 1/4 in
  • Compliance: FMVSS 571.106 / DOT
  • Weight: 0.03 lbs
  • Package Dims: 5 x 3.25 x 0.6 in
  • UPC: 889626515682
  • Product Level: Fleet Standard Aftermarket
  • Brand: Automann (Distributed by FleetPro Parts & Tires)
Key features
  • Branch Without Threads: Three push-to-connect legs let a 1/4 in run be teed anywhere, with no pipe nipples and no thread sealant.
  • Fewer Leak Paths: A single fitting replaces the threaded tee and nipple stack that gives a slow leak three more places to start.
  • Brass Collet Grip: The brass collet holds 1/4 in DOT air brake tubing on all three legs inside a light composite body.
  • DOT Air Brake Compliant: Meets FMVSS 571.106 / DOT requirements for brake circuits, so the branch is a permanent part of the system.
  • Broad Interchange: Covers Parker 364PTC-4, Sloan S764PMT-4, Tramec KV2T07-00, Tectran QL1364-4 and Velvac 016940.
Specifications
Component Type
Push-to-Connect (PLC) Union Tee, DOT Air Brake
Body
Composite with brass collet
Tube End
1/4 in
Compliance
FMVSS 571.106 / DOT
Weight
0.03 lbs
Package Dims
5 x 3.25 x 0.6 in
UPC
889626515682
Product Level
Fleet Standard Aftermarket
Questions
Will this fit my truck?
This part fits Universal - Class 8 trucks and commercial trailers, Air brake plumbing on tractors and trailers, Branches a 1/4 in DOT air brake tubing run into two legs. Always confirm your year, make and model before ordering.
What part numbers does it replace?
Yes. It is a direct replacement that interchanges with Parker 364PTC-4, Parker 364PTC4, Sloan S764PMT-4, Sloan S764PMT4, Tramec KV2T07-00, Tramec KV2T0700, Tectran QL1364-4, Tectran QL13644, Velvac 016940.
How fast does it ship?
In-stock orders placed before 12 PM Central on business days ship the same day from our Hanover Park, IL warehouse, and typically arrive in 2 to 5 business days anywhere in the USA.
What's your return policy?
Unused items in original packaging can be returned within 30 days, backed by our 30-day money-back guarantee. If we ship the wrong part, we cover the return label and send the correct one.
